Product Description

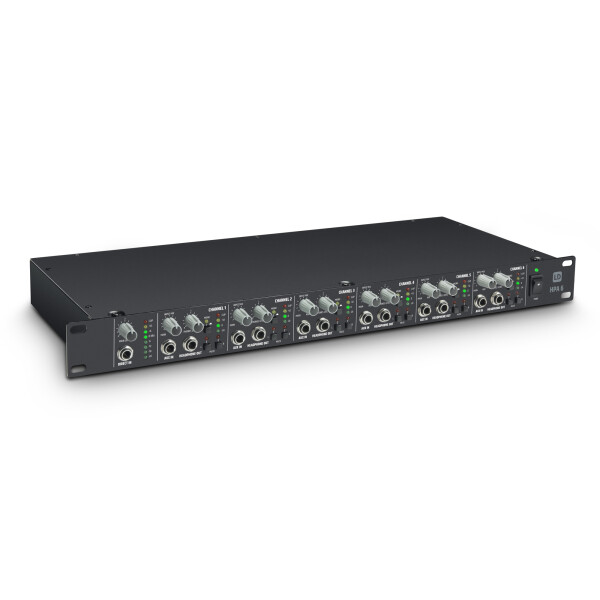

LDHPA6 6-channel rack-mount headphone amplifierThe LD Systems HPA 6 is an extremely flexible 1U 19" headphone amplifier with six completely independent channels and many functions for a wide range of pro audio applications.

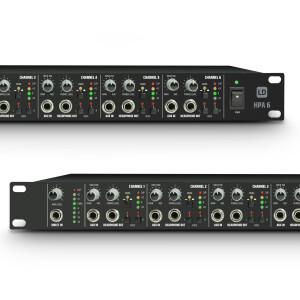

Each channel offers a 6.35 mm TRS headphone jack with level control, mono/stereo switch, dedicated mute buttons for left and right as well as a 6.35 mm TRS aux input with main/aux mixer for mixing additional audio sources. Each channel is also equipped with a four-stage LED level display for optical level control. On the back, each channel offers two 6.35 mm jack outputs (TRS), so that a total of 18 headphones can be connected.

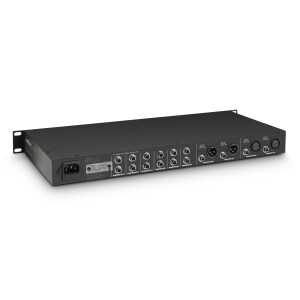

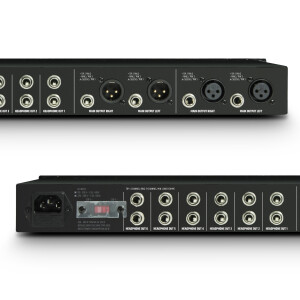

The overall level control is located in the main section of the HPA 6 eight-stage LED level display and a 6.35 mm jack input (TRS), which can be used to mix an additional audio source globally to all channels. On the back there are the main stereo inputs in XLR and 6.35 mm jack format and the stereo outputs, which can be used to connect several devices in series.
