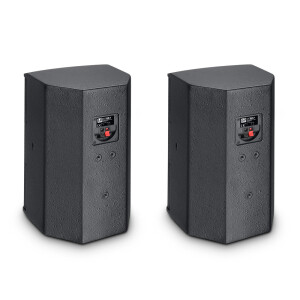

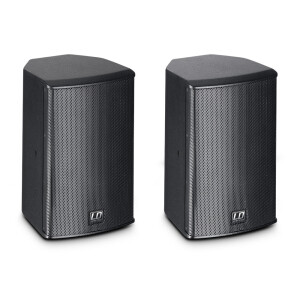

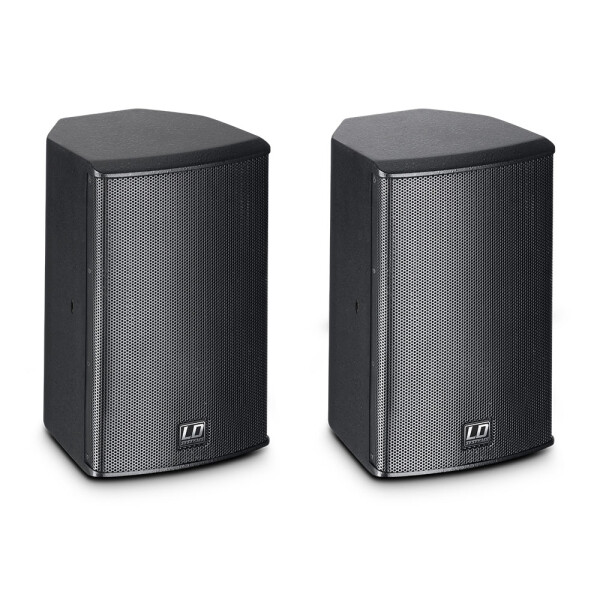

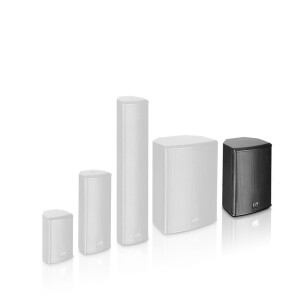

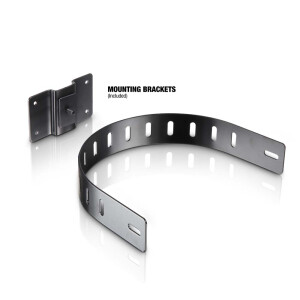

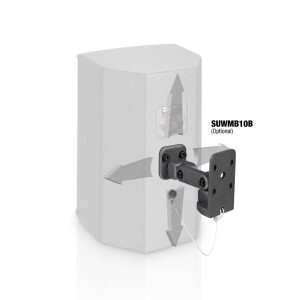

The LD Systems SAT62G2 is a very compact, reliable 2-way loudspeaker for numerous installation applications, which can be discreetly integrated into virtually any environment, e.g., in restaurants, retail stores, or even at home. The bass-reflex design with a 6.5" custom woofer and a 1" silk dome tweeter with waveguide produces a powerful and rich sound reproduction across a frequency range of 55 Hz - 20 kHz with up to 108 dB SPL. The SAT62G2 is therefore suitable for full-range operation and as a satellite speaker in combination with a subwoofer from the LD installation series. It can handle 80 W (RMS), and the 16-ohm impedance allows for the parallel operation of eight LD Systems SAT62G2 speakers at 2 ohms. The 12 mm thick MDF cabinet with a durable textured paint finish is available in black and white. The included mounting bracket and M6 mounting points offer extensive attachment options; a universal swivel mount is available as an accessory. Connection is made via spring clamps.
| Produktart | Installationslautsprecher |
| Typ | Wandlautsprecher |
| Größe Tieftöner | 6,5 " |
| Größe Tieftöner | 165 mm |
| Magnet Tieftöner | Ferrit |
| Marke Tieftöner | Custom Made |
| Größe HF Treiber | 1 " |
| Größe HF Treiber | 25 mm |
| Magnet HF Treiber | Ferrit |
| Marke HF Treiber | Custom Made |
| Abstrahlwinkel (H x V) | 60 x 60 ° |
| Belastbarkeit (RMS) | 80 W |
| Frequenzgang | 55 - 20000 |
| SPL (1 W/1 m) | 89 dB |
| Max. SPL | 108 dB |
| Impedanz | 16 Ohm |
| Schutzschaltungen | HF Treiber |
| Lautsprechereingänge | 1 |
| Lautsprechereingangsanschlüsse | Klemmanschluss |
| Lautsprecher pro Verstärkerkanal (DSP44/45K) | 8 |
| Gehäusematerial | 12 mm MDF |
| Gehäuseoberfläche | Strukturlack |
| Gehäusefarbe | schwarz |
| Gehäusebauart | Bassreflex |
| Breite | 200 mm |
| Höhe | 320 mm |
| Tiefe | 200 mm |
| Gewicht | 8,2 kg |
