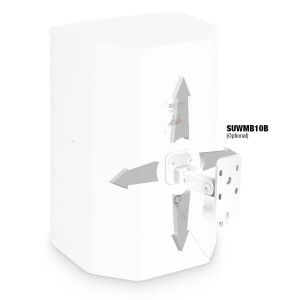

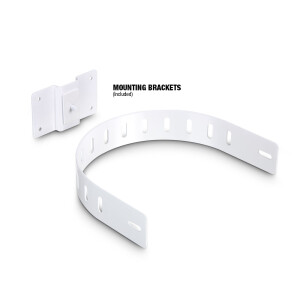

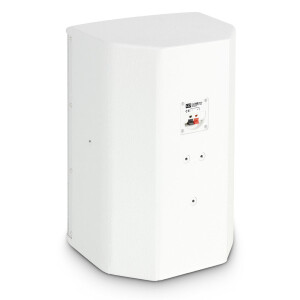

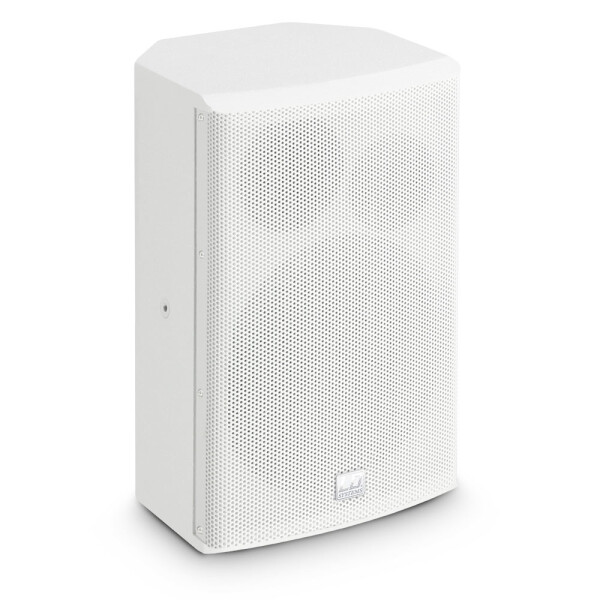

The LD Systems SAT82G2 is a compact, exceptionally reliable 2-way loudspeaker for demanding installation solutions. It blends unobtrusively into virtually any environment, making it suitable for home systems as well. The bass-reflex design features an 8" custom woofer and a 1" silk dome tweeter with waveguide, delivering powerful and highly dynamic reproduction from 50 Hz to 20 kHz across a 60° dispersion angle and achieving a maximum sound pressure level of 114 dB. The LD SAT82G2 has a power handling of 120 W (RMS). The robust 12 mm thick MDF enclosure is finished with a durable textured paint and is available in black or white. Equipped with M6 rigging points and a supplied mounting bracket, it offers numerous mounting options; a universal swivel mount is also available. The SAT82G2 uses spring terminals for connection.
| Produktart | Installationslautsprecher |
| Typ | Wandlautsprecher |
| Größe Tieftöner | 8 " |
| Größe Tieftöner | 203 mm |
| Magnet Tieftöner | Ferrit |
| Marke Tieftöner | Custom Made |
| Größe HF Treiber | 1 " |
| Größe HF Treiber | 25 mm |
| Magnet HF Treiber | Ferrit |
| Marke HF Treiber | Custom Made |
| Abstrahlwinkel (H x V) | 60 x 60 ° |
| Belastbarkeit (RMS) | 120 W |
| Frequenzgang | 50 - 20000 |
| SPL (1 W/1 m) | 93 dB |
| Max. SPL | 114 dB |
| Impedanz | 8 Ohm |
| Schutzschaltungen | HF Treiber |
| Lautsprechereingänge | 1 |
| Lautsprechereingangsanschlüsse | Klemmanschluss |
| Lautsprecher pro Verstärkerkanal (DSP44/45K) | 4 |
| Gehäusematerial | 15 mm MDF |
| Gehäuseoberfläche | Strukturlack |
| Gehäusefarbe | weiß |
| Gehäusebauart | Bassreflex |
| Breite | 274 mm |
| Höhe | 410 mm |
| Tiefe | 243 mm |
| Gewicht | 7 kg |
