A valuable companion at all times
For more than two decades, keyboard players around the world have trusted KC amplifiers for their powerful, high-quality sound, integrated mixing functionality, versatile connection options and tremendous durability. The current generation maintains this quality heritage and adds a modern look and functionality to the amplifiers to meet the needs of today's live musicians. With a KC amplifier at your side, you have full control over your stage rig at all times and can concentrate completely on your performance. In this way, the KC becomes a valuable companion at all times.
The compact and affordable 100 watt KC-200 offers an integrated mixer with four line input channels, a dedicated auxiliary input and the option to connect an XLR vocal microphone. Compared to the previous model KC-150, the amplifier section has been completely redesigned, allowing for higher output power, improved stability and extended bass response. In addition, the 12" speaker has been upgraded and now offers even better sound. The KC-200 combines great sound with a particularly mobile overall package. If necessary, the bass performance can be further expanded by connecting an active subwoofer via the KC-200's Sub-Out jack.
- Compact and affordable 100 watt keyboard amplifier
- Redesigned power amplifier and power supply section for increased stability and improved bass reproduction
- 2-way custom speaker system with newly developed 12‘‘ woofer and tweeter
- Internal mixer with four 6.3mm line input channels, dedicated aux input with 3.5mm jack and RCA, master EQ
- Channel 4 with dedicated monitor functionality for clicks and guide tracks
- XLR microphone input, 1/4" line output, headphone output and subwoofer output
- Metal bushings for increased durability
-
Full-range sound for keyboards and electronic musical instruments
The KC-200 offers full-range sound in a compact 100-watt amplifier. The cabinet is based on Roland's patented twin bass reflex design for extended reproduction in the low frequencies without distortion artifacts. In combination with the completely newly developed amplifier section and the revised 12" speaker, the KC-200 enables improved bass reproduction for the amplification of stage pianos with 88 keyboards, organs, synthesizers as well as rhythm machines and other electronic instruments.
-
Internal 4 +1 mixing
The four 1/4" line input channels allow you to connect keyboards, drum machines and a variety of electronic instruments. Smartphones, players and other devices can be connected to the KC-200 via the aux channel with 3.5mm jack and RCA inputs. Channel 1 also offers an XLR input, which can be used to connect a vocal microphone for even more flexibility. Channel 4 enables monitoring via the KC-200's internal speakers and the headphone input. This allows you to hear clicks and guide tracks during your performance without sending them to the PA via the amp's line outputs.
-
Versatile connections for live, recording and practice sessions
With its wide range of connections, the KC-200 can be easily integrated into any environment. The 1/4" line output allows connection to PA systems, stage monitors and recording devices. In addition, the KC-200 offers a subwoofer output for connecting an active subwoofer. The subwoofer level depends on the master volume of the amplifier, so you can easily adjust all levels using a control. Connecting headphones mutes the internal speakers and subwoofer output - perfect for practicing silently or checking sounds on stage through your headphones.
- Specifications
- Rated Power Output
- 100W
- Nominal Input Level (1 kHz)
- CH1 (XLR type, MIC/LINE): -50-- -20 dBu
CH2 (LINE): -20 dBu
CH3 (LINE): -20 dBu
CH4 (MONITOR): -20 dBu
AUX IN (L, R, STEREO): -10 dBu
- Nominal Output Level (1 kHz)
- LINE OUT: +4 dBu
SUB OUT: +4 dBu
- Speakers
- 30 cm (12 inches) woofer x 1
Tweeter x 1

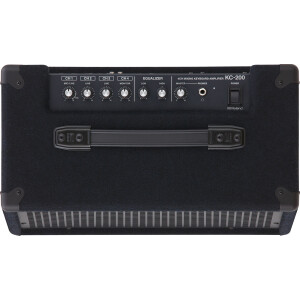

- Controls
- POWER switch
[CH1]
MIC/LINE knob
[CH2]
LINE knob
[CH3]
LINE knob
[CH4]
MONITOR knob
[EQUALIZER]
LOW knob
HIGH knob
MASTER knob
- Indicator
- Power

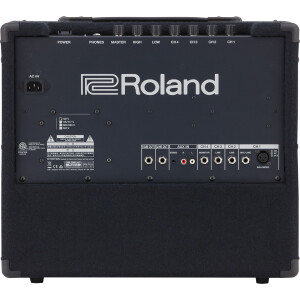

- Connectors
- CH1 jack: XLR type
CH1 (MIC/LINE) jack: 1/4-inch phone type
CH2 (LINE) jack: 1/4-inch phone type
CH3 (LINE) jack: 1/4-inch phone type
CH4 (MONITOR) jack: 1/4-inch phone type
AUX IN (L, R) jacks: RCA phono type
AUX IN (STEREO) jacks: Stereo miniature phone type
LINE OUT jack: 1/4-inch phone type
SUB OUT jack: 1/4-inch phone type
PHONES jack: 1/4-inch TRS phone type (mono signal output)
- Power Consumption
- 70W
- Accessory
- Owner's Manual
- Option (sold separately)
- Speaker was: ST-A95
- Size and Weight
- Width
- 480mm
18-15/16 inches
- Depth
- 295mm
11-5/8 inches
- Height
- 435mm
17-1/8 inches
- Weight
- 15kg
33 lbs 2 oz
