- onPC wing for real-time control of 4,096 parameters in combination with grandMA3 onPC
- 2 DMX connectors
- 1 USB connector
- 20 rotatable RGB backlit encoders
- 10 motorized 60 mm faders
- 40 independent playbacks
- Individually backlit, dimmable, and silent (clickless) keys
Technical Specifications
- Parameters: 4,096 (HTP/LTP)
- Parameters Mode2: not applicable (no Mode2)
- Operating/Supply Voltage: AC 100 - 240 V; 50/60 Hz
- Power: max. 50 VA
- Operating Temperature: 0 °C to 40 °C / 32 °F to 104 °F
- Dimensions (width x depth x height): 240 x 427 x 102 mm / 10 x 17 x 4 in
- Weight (without packaging): 5 kg / 11 lbs

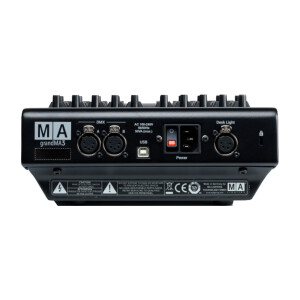

Connectors
- 1 x IEC-60320 C14 inlet
- 2 x DMX512-A Out (5pin XLR female)
- 1 x USB 2.0 (Type B)
- 1 x LED desk lamp (4pin XLR female)

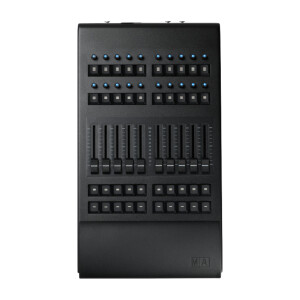

We all love extra faders – okay, almost all of us love extra faders! If you need additional faders in your grandMA3 onPC system, the grandMA3 onPC fader wing is the perfect hardware playback expansion for you.
With this onPC wing, you get a total of 40 separate playbacks with 10 motorized faders and 20 rotatable encoders. This allows you to expand the playbacks for your grandMA3 onPC command wing XT or your grandMA3 onPC command wing.
But maybe you just need a playback device in a small TV studio, a theater installation, or a house of worship? In that case, simply connect your grandMA3 onPC fader wing via USB directly to the computer running the grandMA3 onPC software. You get a small and compact playback station with two built-in DMX ports to control your show! Or, if you have a grandMA3 onPC rack-unit, you can use up to two grandMA3 onPC fader wings to control your playbacks.
Whatever combination you prefer – 4,096 parameters are instantly available to you!
