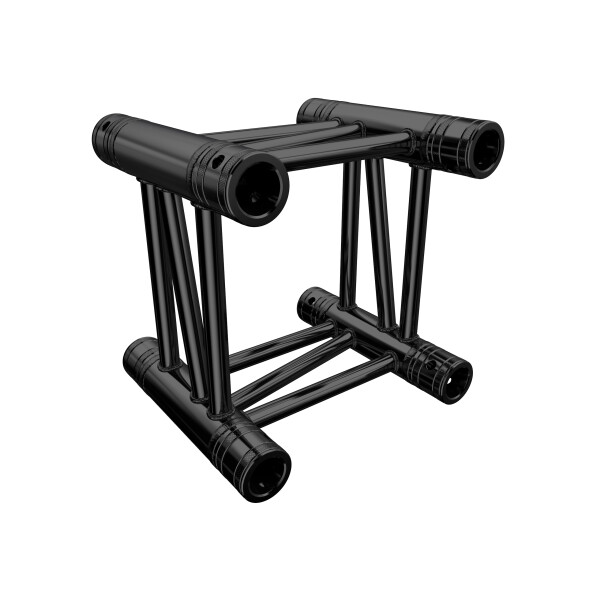

4-Point Truss Element F34P

Length: 25 cm
Conical connectors inclusive
Color: Schwarz
Tube spacing (outer): 29 cm
Main tube diameter: 50 mm
Wall thickness: 3 mm
Pipe diameter Brace: 20 mm
Material: Al EN AW-6082 T6
Dimensions (LxWxH): 250 x 290 x 290 mm
Weight: 4,0 kg

Description

The F34P truss series by Global Truss is a TÜV approved 4-point system with an external dimension of 29cm. Due to its perfect load capacity in relation to its weight and dimensions this system is one of the most commonly used. Exhibition stands and shop fittings as well as stage roofs and other outdoor applications can be built with the trusses of the F34P system. Due to the higher wall thickness compared to the F34 truss it offers a greater load capacity, nevertheless both systems are compatible. The system offers a maximum span of up to 18 meters. The F34P truss is built with 50 x 3mm main tubes and 20 x 2mm diagonal braces of aluminium. The truss pieces are connected with the included conical connectors. This truss and all other Global Truss series can be powder coated in every RAL colour.

Color:

black
Number of Points:

4 point
System (Traverse):

F34 P
Type (Traverse):

Straight piece
