Description

The flexible, powerful, and compact KX 515-A is the perfect solution for professional mobile applications and fixed installations where size and weight are critical factors. It offers all the advantages of RCF technology, such as controlled dispersion, outstanding transparency, and extreme power, a wide range of flexible rigging accessories, weather resistance, and real-time monitoring and management via the RDNet software with recallable presets. The loudspeaker features two 5-inch cone drivers and a 1.75-inch titanium high-frequency compression driver with a rotatable CMD waveguide and special phase-plug design. Whether used as a compact FOH system, as a fill, or as a surround speaker as part of a larger system, it is ideal for use in live performances. The KX 515-A impresses with its quick commissioning and configuration.

Features

127 dB maximum sound pressure level
Rotatable 100° x 70° CMD Horn
2 x 5-inch neodymium woofers, 2-inch voice coil
1.75-inch neodymium compression driver with titanium dome
2 x Class-D power amplifiers, total power 2000 watts
2 x Class-D power amplifiers, total power 2000 watts
RDNet for network-based management
powerCON TRUE1 TOP power connector
Available in black or white

Specifications

Frequency response 70 Hz 20000 Hz
Max SPL @ 1m: 127 dB
Horizontal beam angle 100°
Vertical beam angle: 70°

Sound transducer

Compression Driver: 1.0'' neo, 1.75'' v.c
Woofer: 2 x 5'' neo, 2.5'' v.c

Input/Output Section

Input signal: bal/unbal
Input connectors: XLR, RDNet Ethercon
Output connectors: XLR, RDNet Ethercon
Input sensitivity: -2 dBu/+4 dBu

Processor

Crossover frequency: 1200 Hz
Protection circuits: Excurs.
Limiter: Fast Limiter
Controls: Bypass, Linear/High Pass, Volume
RDNet: Oneboard

Power section

Total power: 2000 W peak, 1000 W RMS
HF range: 600 W peak, 300 W RMS
Low frequencies: 1400 W peak, 700 W RMS
Cooling: Convection
Connections: Powercon TRUE1 TOP IN/OUT

Physical data

Housing material Baltic birch plywood
Hardware 2X M10 TOP AND BOTTOM, 2X PIN D.10
Handles 2 TOP AND BOTTOM
Pole Mount/Cap Quick-fit socket
Grid Steel with clothing
Color Black

Size

Height 456 mm / 17.95 inches
Width 154 mm / 6.06 inches
Depth 237.5 mm / 9.35 inches
Weight 9.8 kg / 21.61 lbs

Category M-R:

RCF Active Boxes
Color:

black
Number of Woofers:

2
Woofer in Inches:

5
Performance According To Manufacturer:

2000W
Power Rms:

1000W
Vertical Beam Angle (Degrees):

70
Beam Angle Horizontal (Degrees):

100
Housing Material:

Wood
Bluetooth:

No
Dsp:

Yes
Ways:

2-way
Steering:

Fir phase | Bass motion control | RDnet
Active/Passive:

active

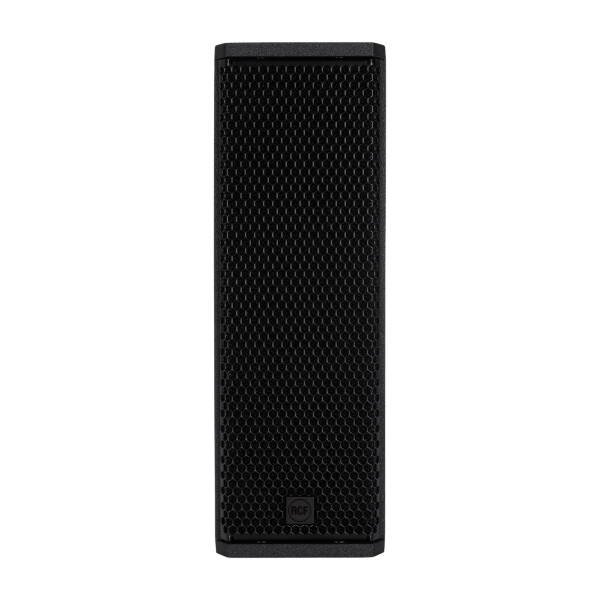

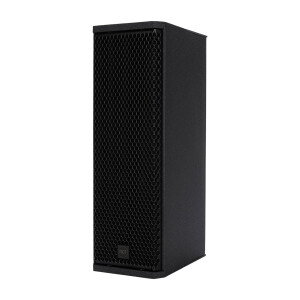

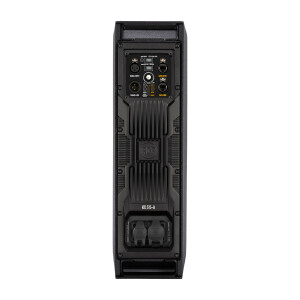

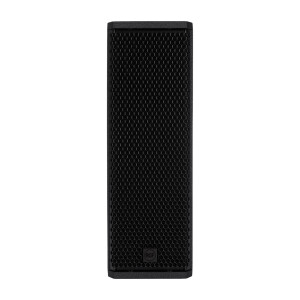

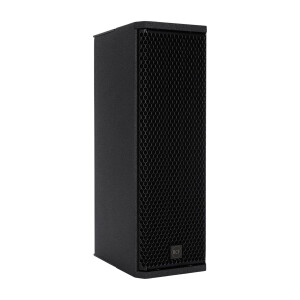

KX 515-A

SKU: 200131370

GTIN: 8024530022792

I'm sorry, not available at present

Price on request
