Description

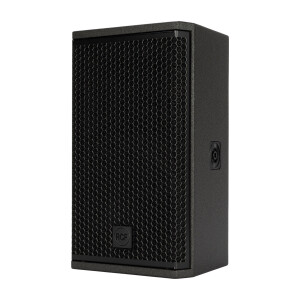

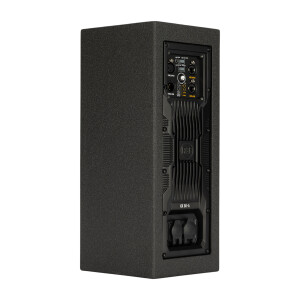

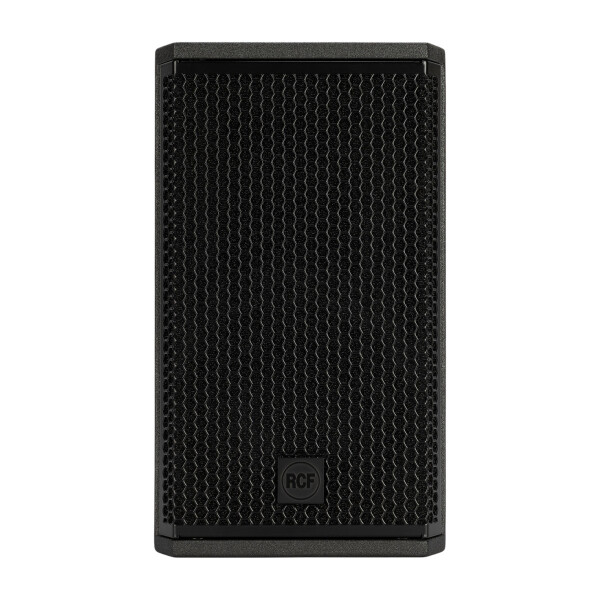

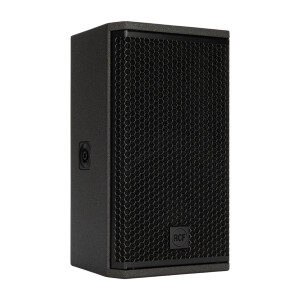

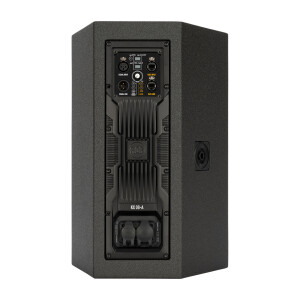

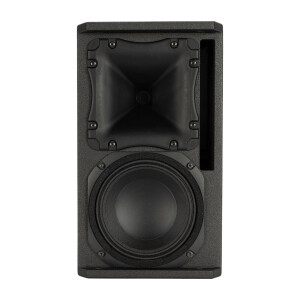

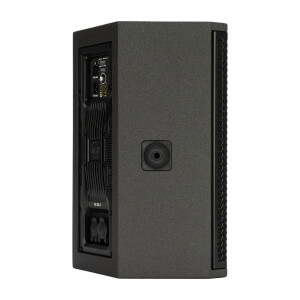

The KX 08-A is a compact, high-performance 2-way active loudspeaker system designed for professional users. It combines precise dispersion with high sound pressure levels and advanced system integration. The low frequency range is covered by an 8-inch neodymium driver in a bass-reflex configuration; the high frequency range is provided by a 1.75-inch PKX dome neodymium compression driver coupled to a 90° x 70° true resistive waveguide that can be rotated 90° for flexible coverage options. An integrated 2-channel Class-D power amplifier with 2000 watts of power, proprietary digital signal processing, and remote management via RDNet ensures optimal system performance. The weatherproof, multifunctional housing with Quick Fit and M10 threaded bushings is versatile for ground stacking, with a distance pole, or in flight.

Features

128 dB maximum sound pressure level
Rotatable 90° x 70° TRW horn
8-inch neodymium woofer, 2.5-inch voice coil
1.75-inch neodymium compression driver with PKX dome
2-channel Class D power amplifier, 2000 watts
Digital signal processing with FiRPHASE and BMC
RDNet for network-based management
powerCON TRUE1 TOP power connection

Specifications

Frequency response 65 Hz ÷ 20000 Hz
Max SPL @ 1m: 128 dB
Horizontal beam angle 90°
Vertical beam angle: 70°

Sound transducer

Compression Driver: 1.0'' neo, 1.75'' v.c
Woofer: 8'' neo, 2.5'' v.c

Input/Output Section

Input signal: bal/unbal
Input connectors: XLR, RDNet Ethercon
Output connectors: XLR, RDNet Ethercon
Input sensitivity: -2 dBu/+4 dBu

Processor

Crossover frequency: 1400 Hz
Protection circuits: Thermal, HF
Limiter: Fast Limiter
Controls: Bypass, Linear/High Pass, Volume
RDNet: Oneboard

Power section

Total power: 2000 W peak, 1000 W RMS
HF range: 600 W peak, 300 W RMS
Low frequencies: 1400 W peak, 700 W RMS
Cooling: Convection
Connections: Powercon TRUE1 TOP IN/OUT

Physical data

Housing material Baltic birch plywood
Hardware 3X M10 TOP AND BOTTOM, 2X PIN D.10 AND M10 SIDE

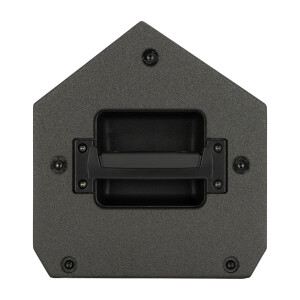

Handles 1 TOP
Pole mount/cap 35 mm insert
Grid Steel with clothing
Color Black

Size

Height 450 mm / 17.72 inches
Width 260 mm / 10.24 inches
Depth 285.4 mm / 11.24 inches
Weight 11 kg / 24.25 lbs

Category M-R:

RCF Active Boxes
Color:

black
Number of Woofers:

1
Woofer in Inches:

8
Performance According To Manufacturer:

2000W
Power Rms:

1000W
Vertical Beam Angle (Degrees):

70
Beam Angle Horizontal (Degrees):

90
Housing Material:

Wood
Bluetooth:

No
Dsp:

Yes
Ways:

2-way
Steering:

RDnet
Active/Passive:

active

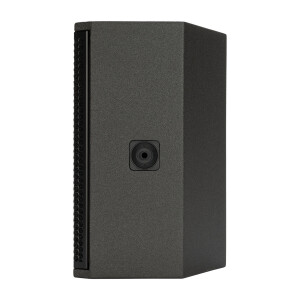

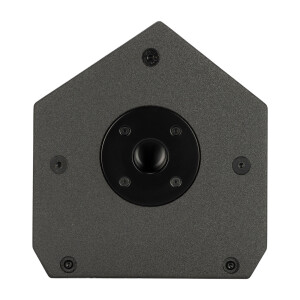

RCF KX 08-A

SKU: 200131369

GTIN: 8024530022808

I'm sorry, not available at present

Price on request

RCF
