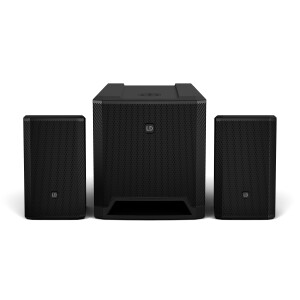

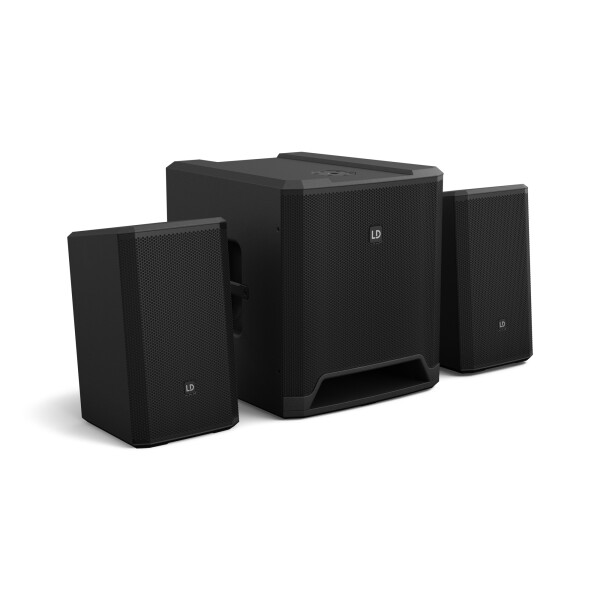

LD Systems DAVE 12 G4X

Name: LD Systems DAVE 12 G4X
Brand: LD Systems
SKU: 200130353
Price: 949.00 EUR
Availability: InStock

Item No.: 200130353

949,00 €

per pieces

incl. 19% VAT (Paket)

In stock

Delivery time: 3 - 5 Workdays (DE - int. shipments may differ)

Description
Technische Daten

Product Information

Category H-L:

LD Systems DAVE series
Number of Woofers:

1
Performance According To Manufacturer:

1460W
Power Rms:

730W
Vertical Beam Angle (Degrees):

50
Beam Angle Horizontal (Degrees):

90
Operating Mode:

Class D
Housing Material:

Multiplex
Bluetooth:

Yes
Dsp:

No

Product Description

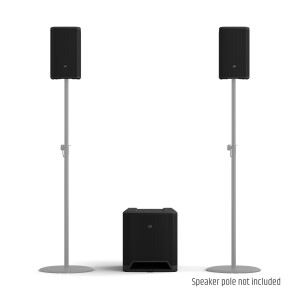

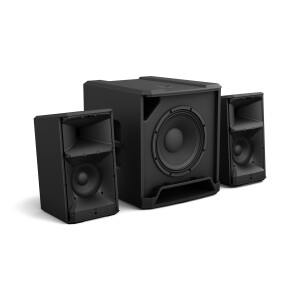

Whether you're a DJ, live band, solo entertainer, or at the next party: for everyday live performances, you need an all-round PA system that delivers on all fronts: with professional sound for diverse applications, a wide range of connections and accessories for quick and flexible on-site setup, and maximum reliability. In short: your PA system needs to perform at its best around the clock. With the DAVE 12 G4X, the search is over. This active compact PA system consists of a 12" subwoofer and two 6.5" satellite speakers. The amp (total power: 1460 W peak) not only boasts a new, modern design with numerous handling optimizations, but also an integrated 6-channel mixer with all essential input options. This allows you to create a wide variety of setups and combinations of instruments, vocals, and playback devices – wired and wireless thanks to integrated Bluetooth for easy streaming from a smartphone or tablet. The first two channels of the mixer are designed as a channel strip. Here you can connect a microphone, a high-impedance instrument – for example, a guitar and bass – as well as line-level sources. For sound shaping, there is a 2-band EQ for bass and treble, as well as an adjustable reverb with three presets (Small, Large, Plate). Channels 3 and 4 are designed as stereo line inputs and are suitable for keyboards, synthesizers, drum machines, or small electronic drum kits, among other things. The DAVE 12 G4X becomes even more versatile when you use the digital SPDIF stereo input or the Bluetooth connection to expand your performance setup with a media player, computer, or smartphone, allowing you to play and control backing tracks, sound effects, or background music. Similarly, inputs 5 and 6 can be used for a karaoke system or simply to reproduce a TV signal in a sports bar with impressive sound. Speaking of impressive sound: The DAVE 12 G4X was completely redesigned and developed from the ground up. This benefits not only instruments and music, but also speech intelligibility when the PA is used for speech reinforcement. The acoustic concepts include new compression drivers and waveguides for homogeneous and directional dispersion, as well as FIR filters and state-of-the-art DSP technology for a transparent, coloration-free sound unlike anything you've experienced before with a DAVE. For example, the subwoofer has been equipped with a larger voice coil and an optimized bass reflex system to minimize ventilation noise. In general, the DAVE 12 G4X is ideally suited for flexible use. This is due in no small part to the selectable mode presets for classic stereo use or a setup with two closely spaced satellites on a T-stand above the subwoofer – the DAVE G4X delivers convincing sound in all configurations. The latter preset allows for interference-free clustering of two satellites through a special M/S split and playback of the stereo signal for increased headroom and directivity. LD Systems has also considered all common usage scenarios when it comes to accessories. The range extends from custom-fit bags and a rolling platform to the aforementioned T-stand.

Produktart	PA Komplettsysteme
Typ	Aktiv
Farbe	Schwarz
Systemleistung (RMS)	730 W
Systemleistung (Peak)	1460 W
Max. SPL (Avarage)	120 dB
Max. SPL (Peak)	127 dB
Frequenzgang (-10dB)	37 - 20000 Hz
Übergangsfrequenz	105 Hz
Abstrahlwinkel (H x V)	90° x 50 °
Gewicht	43,7 kg

Subwoofer

Größe Tieftöner	12 "
Größe Tieftöner	304,8 mm
Magnet Tieftöner	Ferrit
Marke Tieftöner	Custom Made
Schwingspule Tieftöner	2,5 "
Schwingspule Tieftöner (mm)	63 mm
Gehäusebauart	Bassreflex
Gehäusematerial	15 mm Multiplex
Gehäusematerial	18 mm Multiplex
Gehäuseoberfläche	Polyurea
Breite Subwoofer	450 mm
Höhe Subwoofer	505 mm
Tiefe Subwoofer	510 mm
Gewicht Subwoofer	27,1 kg
Features Subwoofer	3 Reverb Presets
Features Subwoofer	6 Kanal Mixer
Features Subwoofer	Bluetooth

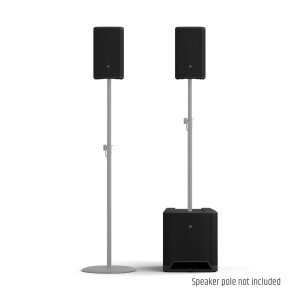

Features Subwoofer	Cluster / Stereo Preset
Features Subwoofer	M20
Features Subwoofer	SPDIF
Tragegriffe	2

Mid/Hi System

Größe Mittentöner	6,5 "
Größe Mittentöner	165,1 mm
Magnet Mittentöner	Ferrit
Marke Mittentöner	Custom Made
Schwingspule Mittentöner	1,5 "
Schwingspule Mittentöner	38,6 mm
Horn	CD Horn
Größe Hochtöner	0,5 "
Größe Hochtöner	12,7 mm
Magnet Hochtöner	Neodym
Marke Hochtöner	Custom Made
Schwingspule Hochtöner	1 "
Schwingspule Hochtöner	25,4 mm
Impedanz Mid/Hi System	4 Ohm

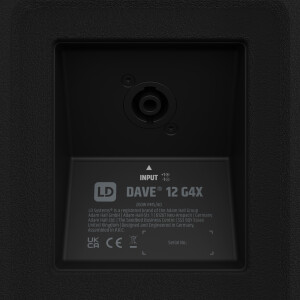

Lautsprecheranschlüsse Mid/Hi-System	1
Lautsprecheranschluss Mid/Hi-System	Speakon kompatibel
Gehäusebauart Mid/Hi-System	Bassreflex
Tragegriffe Mid / Hi System	1
Gehäusematerial Mid/Hi-System	12 mm Multiplex
Gehäusematerial Mid/Hi-System	15 mm Multiplex
Gehäuseoberfläche Mid/Hi-System	Polyurea
Breite Mid/Hi-System	252 mm
Höhe Mid/Hi-System	435 mm
Tiefe Mid/Hi-System	250 mm
Gewicht Mid/Hi-System	8,3 kg

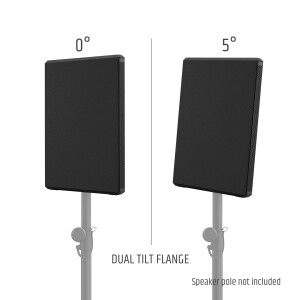

Features Mid/Hi System	Dual - Tilt Flansch
Features Mid/Hi System	Midrange Waveguide

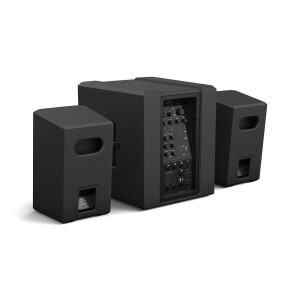

Verstärkermodul (im Subwoofer integriert)

Verstärker	Class D
Verstärkerleistung Subwoofer (RMS)	370 W
Verstärkerleistung Mid/Hi (RMS)	2 x 180 W
Schutzschaltungen	Kurzschluss
Schutzschaltungen	Limiter
Schutzschaltungen	Überlastung
Kühlung	Passive
Betriebstemperatur	0°C - 40 °C
Feuchtigkeitsbereich	<80% (nicht kondensierend)

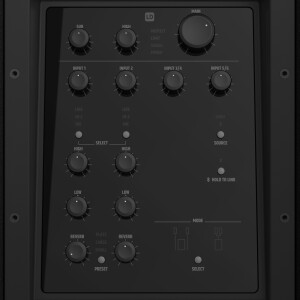

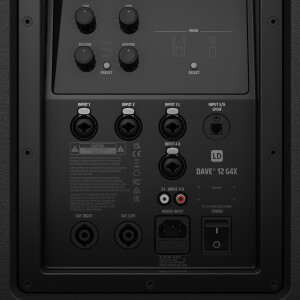

Bedienelemente	Input Typ
Bedienelemente	Input Volume
Bedienelemente	Low / High EQ
Bedienelemente	Main Volume
Bedienelemente	Power
Bedienelemente	Reverb
Bedienelemente	Stereo / Cluster mode
Bedienelemente	Sub / High level
Anzeigeelemente	Limit
Anzeigeelemente	Power
Anzeigeelemente	Protect
Anzeigeelemente	Signal
Stromversorgungsanschluss	IEC
Betriebsspannung	100 V AC - 240 V AC / 50 - 60 Hz
Leistungsaufnahme	300 W
Multi Eingänge	2 x Switchable (MIC, LINE, HI-Z)
Multi Eingangsanschluss	Combo XLR
Line-Eingänge	2
Line-Eingangsanschlüsse	Combo XLR
Line-Eingangsanschlüsse	RCA
Digitale Eingänge	2
Digitale Eingangsanschlüsse	SPDIF
Lautsprecherausgänge	2
Lautsprecherausgangsanschlüsse	Speakon kompatibel
Bluetooth-Standard	A2DP
Bluetooth-Audio-Decoder	SBC
Bluetooth-Version	5.0
