LD Systems DAVE 10 G4X

Name: LD Systems DAVE 10 G4X
Brand: LD Systems
SKU: 200130352-B
Price: 747.50 EUR
Availability: OutOfStock

Item No.: 200130352-B

747,50 €

per pieces

incl. 19% VAT (Paket)

Notify me when available

Out of Stock

Description
Technische Daten

Product Information

Category H-L:

LD Systems DAVE series
Number of Woofers:

1
Performance According To Manufacturer:

680W
Power Rms:

340W
Vertical Beam Angle (Degrees):

60
Beam Angle Horizontal (Degrees):

100
Operating Mode:

Class D
Housing Material:

Multiplex
Bluetooth:

Yes
Dsp:

No

Product Description

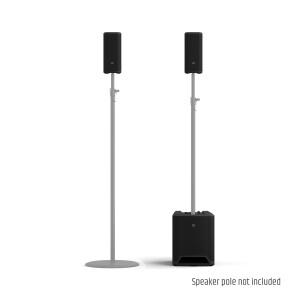

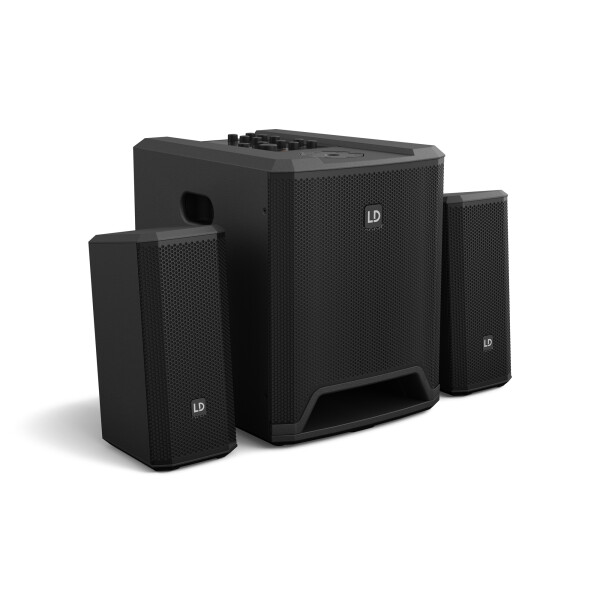

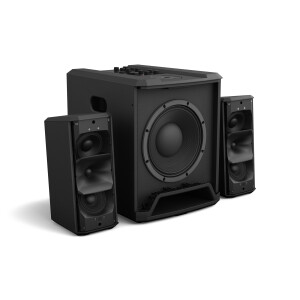

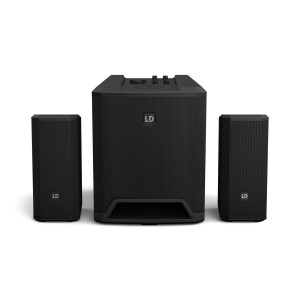

Whether you're a DJ, live band, solo entertainer, or at the next party: for everyday live performances, you need a sound system that delivers consistently excellent results – with professional sound for diverse applications, a wide range of connections and accessories for quick on-site setup, and maximum reliability. In short: your sound system needs to perform at its best around the clock. With the DAVE 10 G4X, the search is over. LD Systems has completely redesigned and fine-tuned this active 2.1 sound system. So all you need to do is set up the 10" subwoofer and the two satellites with dual 4" drivers (total power: 680 W peak) and connect your equipment – the sound will impress you from the start. With the integrated 6-channel mixer, you have all microphones, instruments, and signals under control – thanks to integrated Bluetooth, you can also stream wirelessly from a smartphone or tablet. The first two channels of the mixer are designed as a channel strip. Here you can connect a microphone, a high-impedance instrument – for example, a guitar and bass – as well as line-level sources. For sound shaping, there is a 2-band EQ for bass and treble, as well as an adjustable reverb with three presets (Small, Large, Plate). Channels 3 and 4 are designed as stereo line inputs and are suitable for keyboards, synthesizers, drum machines, or small electronic drum kits, among other things. The DAVE 10 G4X sound system becomes even more versatile when you use the digital SPDIF stereo input or the Bluetooth connection to connect a CD player, computer, or smartphone. Need some backing tracks or sound effects for your gig and want to play some music before the concert starts? No problem. The inputs (channels 5 and 6) can also be used for a karaoke system or simply to reproduce a TV broadcast in a sports bar with excellent sound. Speaking of excellent sound: The DAVE 10 G4X has been completely redesigned and developed. This benefits not only instruments and music, but also speech intelligibility if you occasionally want to use the sound system for lectures, speeches, or panel discussions. The DAVE 10 G4X features a new dome tweeter and waveguides for homogeneous dispersion, as well as FIR filters and state-of-the-art DSP technology for transparent, distortion-free sound – thanks to the optimized bass reflex system in the subwoofer with minimal fan noise. The DAVE 10 G4X sound system is a 2.1 stereo system with two selectable stereo presets. Typically, you would place the two satellite speakers to the left and right in the room or on a stage. The classic stereo preset is designed for this. However, for a particularly space-saving setup, the two satellite speakers can also be mounted on a single T-stand above the subwoofer. Since the satellite speakers are very close together in this case, interference is inevitable. For this purpose, there is a dedicated preset (cluster mode) with a special M/S split to reproduce the stereo signal without interference. This also gives you more headroom and directivity. LD Systems has considered all common application possibilities when it comes to accessories. The range extends from custom-fit bags and a trolley to the aforementioned T-stand, a pole-mount tripod, or a wall mount for the satellite speaker.

Produktart	PA Komplettsysteme
Typ	Aktiv
Farbe	Schwarz
Systemleistung (RMS)	340 W
Systemleistung (Peak)	680 W
Max. SPL (kontinuierlich)	114 dB
Max. SPL (Peak)	120 dB
Frequenzgang (-10dB)	37 - 20000 Hz
Übergangsfrequenz	110 Hz
Abstrahlwinkel	100° x 60°
Gewicht	24,5 kg

Subwoofer

Größe Tieftöner	10 "
Größe Tieftöner	304,8 mm
Magnet Tieftöner	Ferrit
Marke Tieftöner	Custom Made
Schwingspule Tieftöner	2 "
Schwingspule Tieftöner (mm)	50 mm
Gehäusebauart	Bassreflex
Gehäusematerial	15 mm Multiplex
Gehäusematerial	18 mm Multiplex
Gehäuseoberfläche	Polyurea
Breite Subwoofer	350 mm
Höhe Subwoofer	436 mm
Tiefe Subwoofer	440 mm
Gewicht Subwoofer	16,5 kg
Features Subwoofer	3 Reverb Presets
Features Subwoofer	6 Kanal Mixer
Features Subwoofer	Bluetooth
Features Subwoofer	Cluster / Stereo Preset
Features Subwoofer	M20
Features Subwoofer	SPDIF
Tragegriffe	2

Mid/Hi System

Größe Mittentöner	2 x 4 "
Größe Mittentöner	2 x 101,6 mm
Magnet Mittentöner	Ferrit
Marke Mittentöner	Custom Made
Schwingspule Mittentöner	1 "
Schwingspule Mittentöner	25,4 mm
Horn	CD Waveguide
Größe Hochtöner	1 "
Größe Hochtöner	25,4 mm
Magnet Hochtöner	Neodym
Marke Hochtöner	Custom Made
Schwingspule Hochtöner	1 "
Schwingspule Hochtöner	25,4 mm
Impedanz Mid/Hi System	4 Ohm

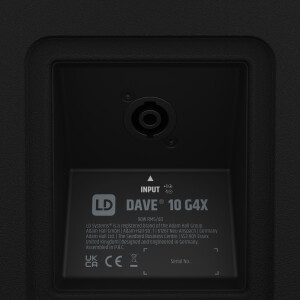

Lautsprecheranschlüsse Mid/Hi-System	1
Lautsprecheranschluss Mid/Hi-System	Speakon kompatibel
Gehäusebauart Mid/Hi-System	Bassreflex
Tragegriffe Mid / Hi System	1
Gehäusematerial Mid/Hi-System	12 mm Multiplex
Gehäusematerial Mid/Hi-System	15 mm Multiplex
Gehäuseoberfläche Mid/Hi-System	Polyurea
Breite Mid/Hi-System	150 mm
Höhe Mid/Hi-System	345 mm
Tiefe Mid/Hi-System	170 mm
Gewicht Mid/Hi-System	4 kg

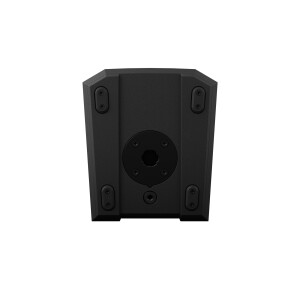

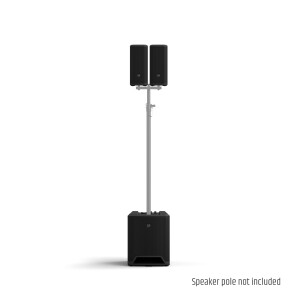

Features Mid/Hi System	Stern Flansch 16 mm

Verstärkermodul (im Subwoofer integriert)

Verstärker	Class D
Verstärkerleistung Subwoofer (RMS)	170 W
Verstärkerleistung Mid/Hi (RMS)	2 x 85 W
Schutzschaltungen	Kurzschluss
Schutzschaltungen	Limiter
Schutzschaltungen	Überlastung
Kühlung	Passiv
Betriebstemperatur	0°C - 40 °C
Feuchtigkeitsbereich	<80% (nicht kondensierend)

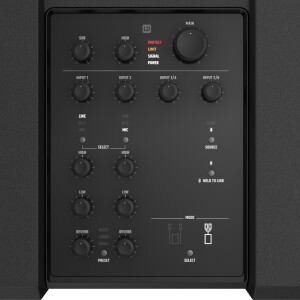

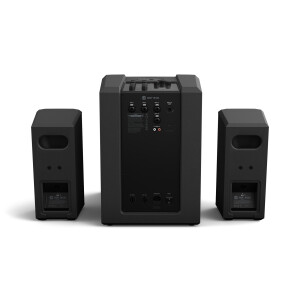

Bedienelemente	Input Typ
Bedienelemente	Input Volume
Bedienelemente	Low / High EQ
Bedienelemente	Main Volume
Bedienelemente	Power
Bedienelemente	Reverb
Bedienelemente	Stereo / Cluster mode
Bedienelemente	Sub / High level
Anzeigeelemente	Limit
Anzeigeelemente	Power
Anzeigeelemente	Protect
Anzeigeelemente	Signal
Stromversorgungsanschluss	IEC
Betriebsspannung	100 V AC - 240 V AC / 50 - 60 Hz
Leistungsaufnahme	120 W

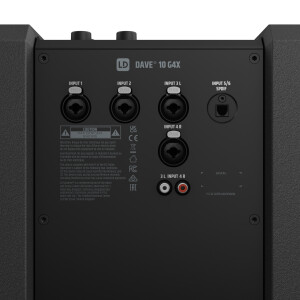

Multi Eingänge	2 x Switchable (MIC, LINE, HI-Z)
Multi Eingangsanschluss	Combo XLR
Line-Eingänge	2
Line-Eingangsanschlüsse	Combo XLR
Line-Eingangsanschlüsse	RCA
Digitale Eingänge	2
Digitale Eingangsanschlüsse	SPDIF
Lautsprecherausgänge	2
Lautsprecherausgangsanschlüsse	Speakon kompatibel
Bluetooth-Standard	A2DP
Bluetooth-Audio-Decoder	SBC
Bluetooth-Version	5.0
