Description

High-power loudspeaker with premium components for full-range, satellite, monitor, and integrated applications
133 dB max. SPL and 1000 W RMS / 2000 W peak
Coaxial design with common motor for a true point source
12" woofer with 3" voice coil and 3" titanium HF driver
Large, rotatable, BEM-optimised CD horn with 800 Hz crossover for homogeneous 90° x 50° dispersion
Flow-optimised bass reflex ports for outstanding full-range performance
SysCore® DSP with FIR/IIR filters and crossover for distortion-free sound, even at maximum volume
2 x line/mic inputs with individual gain control, plus 1x mono mix output
Bluetooth® 5.1 and stereo streaming (TWS) with two ICOA PRO 12 A
Free app for remote adjustments via smartphone and tablet (iOS and Android)
4-band parametric EQ, 4 application presets (incl. low-latency monitor) and delay function
EasyMount® compatible for tool-free mounting, as well as 6 x M10 rigging points
35 mm dual-tilt stand attachment with 0° and 5° tilt angles

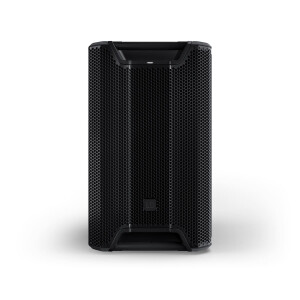

Ultra-robust ABS housing with integrated steel construction and a shock-resistant grille
Front LED indicator (identification, power and limiter)
Extensive, optionally available accessories for outdoor use, installation and transport

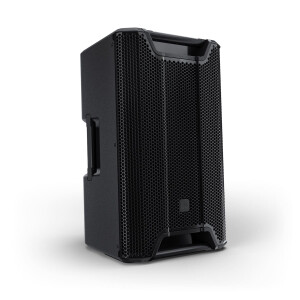

The ICOA PRO 12 A combines the sonic precision of a true coaxial system with the flexibility of a compact 12ʺ loudspeaker. Its professional full-range performance and robust design make it exceptionally versatile and ideal for a wide range of applications, from club gigs to live events and permanent installations.

The coaxial design combines a specially manufactured 12ʺ woofer with a 3ʺ voice coil and 3ʺ titanium tweeter to create an authentic point source. The common motor design used also ensures the audio signal's improved coherence and time accuracy. The result is a particularly natural and detailed playback.

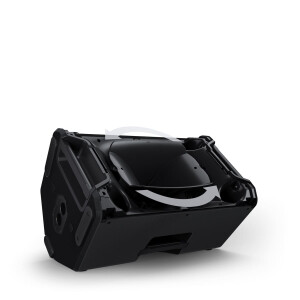

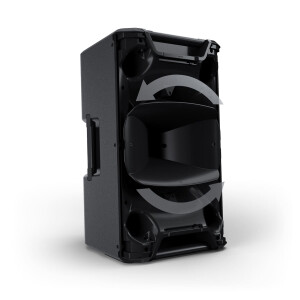

The rotatable, BEM-optimised horn ensures precise dispersion characteristics and simultaneously provides horn loading for the woofer and tweeter. This double horn loading allows the sound waves to be precisely focused deep into the mid-range (approx. 600 Hz) and offers a decisive advantage in acoustically demanding environments, as the sound energy arrives exactly where it is needed.

Thanks to its flow-optimised bass reflex ports, the ICOA PRO 12 A delivers a solid low end up to 53 Hz and thus an impressive full-range experience. The powerful Class D amplifier delivers up to 1000 W RMS (2000 W peak) and 133 dB max. SPL, ensuring sufficient headroom when powerful, distortion-free sound is required.

The modern SysCore DSP with FIR/IIR filters and advanced limiters guarantees distortion-free sound and safe operation with maximum clarity and punch – even at the limits.

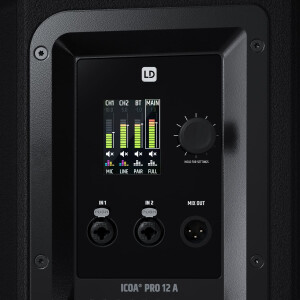

Two line/mic input channels and an XLR mix tap enable various signal sources to be connected and forwarded.

Four application presets (including a low-latency monitor), delay function, and parametric 4-band EQs for the input and master channels enable precise settings.

The whole experience is rounded off by an intuitive menu navigated using the colour display with one-knob control and the free ICOA PRO app.

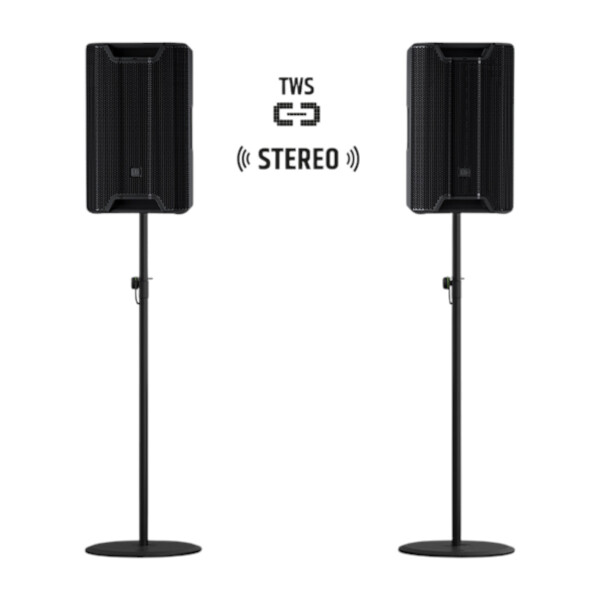

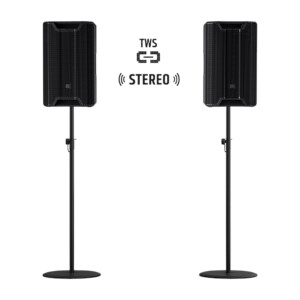

All settings can be adjusted quickly and wirelessly via the app, and multiple speakers can be paired with each other. A stereo setup with up to two tops and four subs, including direct music streaming via Bluetooth 5.1 and TWS, can be created and ready for use in the app in just a few seconds. A status LED on the front of the subwoofer enables easy identification and indicates if the limiter is activated.

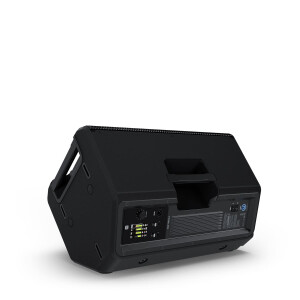

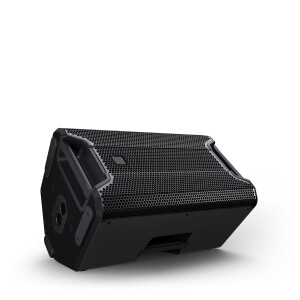

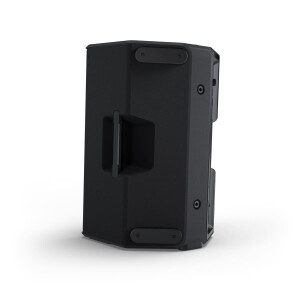

Its robust ABS cabinet with steel reinforcement, sturdy front grille and 50° tilt angle make the ICOA PRO 12 A an excellent floor monitor. Four ergonomic carrying handles also ensure a secure grip while setting up and dismantling.

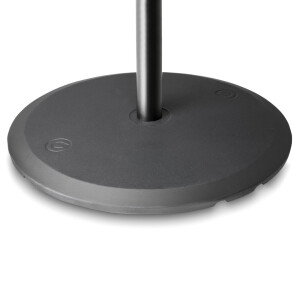

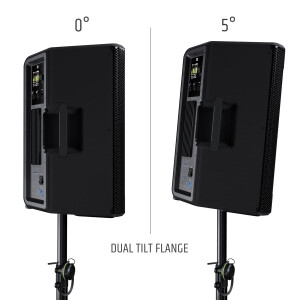

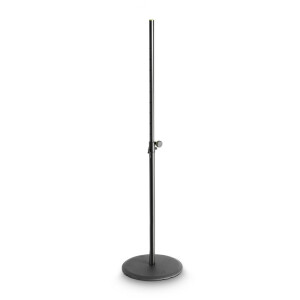

When used with a tripod, a tilt angle of 0° or 5° can be selected. Whether vertical or horizontal, the rotatable horn and the multiple mounting options, such as 6 × M10 flying points and the EasyMount truss mount, mean the loudspeaker can be used flexibly in a wide variety of environments.

This makes the ICOA PRO 12 A the perfect choice as a versatile tool for all event and installation applications.

Padded, water-repellent custom-fit protective covers with additional storage space are available as accessories for safe use and Transport.
