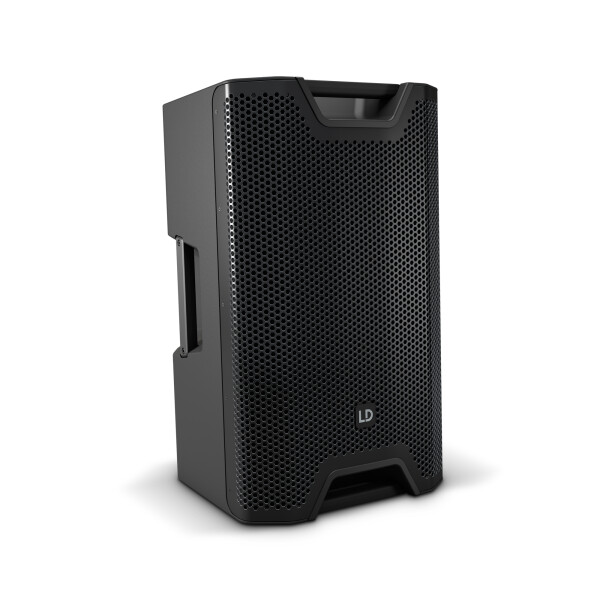

12" Passiver koaxialer PA-Lautsprecher

True all-rounder for full-range, satellite, and monitor applications as well as permanent installations
Passive loudspeaker with 123 dB max. SPL and 1000 W peak power handling

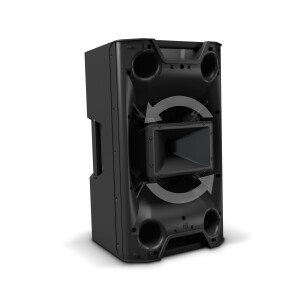

Vertical and horizontal application thanks to coaxial design with rotatable, BEM-optimized CD horn (patent pending)
Horn-loaded woofer

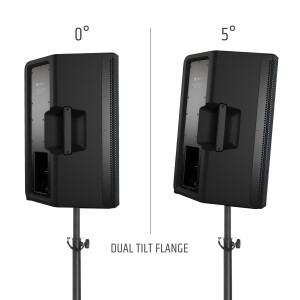

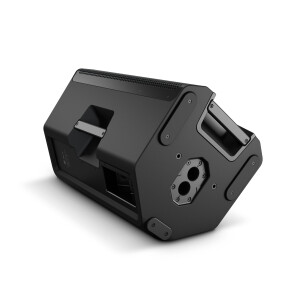

36 mm dual-tilt tripod mount with 0° and 5° tilt angles, 55° monitor angle with stable base
6 x M10 rigging points

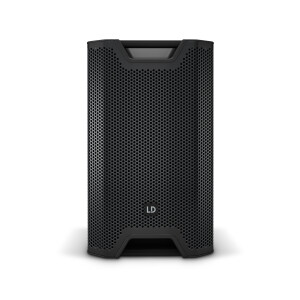

Shockproof front grille for optimal loudspeaker protection

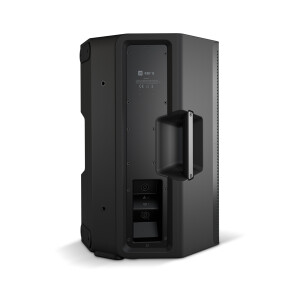

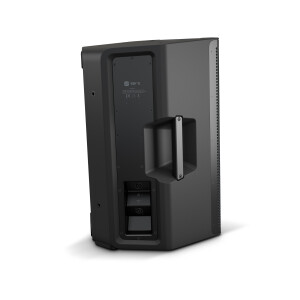

Four aluminum handles with ergonomic, rubberized surface
Extensive range of optional accessories for installation and transport

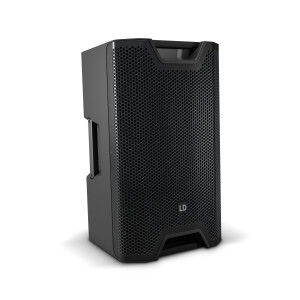

LD Systems ICOA 12

Name: LD Systems ICOA 12
Brand: LD Systems
SKU: 200130413-V
Price: 299.50 EUR
Availability: InStock

Item No.: 200130413-V

from 299,50 €

pieces

incl. 19% VAT (Paket)

Colour:

Do you want to order multiple variants at once?

In stock

Payment Benefit:
Save 3% via bank transfer / advanced payment
Your price at checkout: 296,34 €

Description
Technische Daten

Product Information

Category H-L:

LD Systems ICOA Series
Number of Woofers:

1
Woofer in Inches:

12
Performance According To Manufacturer:

1000W
Power Rms:

250W
Vertical Beam Angle (Degrees):

50
Beam Angle Horizontal (Degrees):

90
Housing Material:

plastic
Impedance:

8 ohms

Product Description

This 12" full-range loudspeaker delivers impressive sound even in the low-frequency range. The passive ICOA 12 from LD Systems is a true all-rounder and, thanks to its coaxial design and rotatable, BEM-optimized CD horn, extremely versatile.

The excellent bass response of the horn-loaded woofer makes the ICOA 12 the ideal choice for dance schools, musicians, bands, and entertainers. DJs can even use it without a subwoofer. Its great flexibility also makes it a perfect fit for permanent installations.

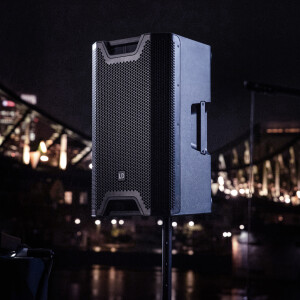

The speaker excels vertically as a satellite, horizontally in flown systems, or as a floor monitor. It delivers a maximum sound pressure level of 123 dB and has a power handling of 1000 W peak.

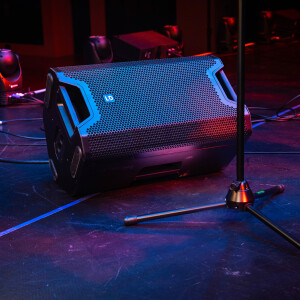

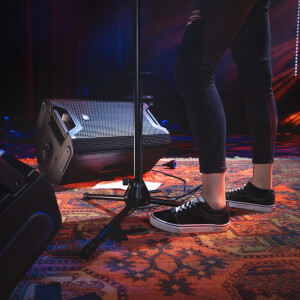

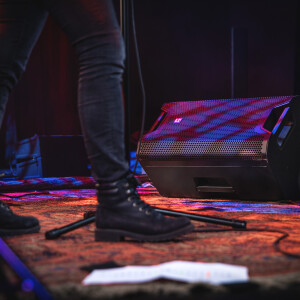

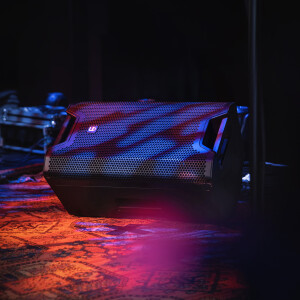

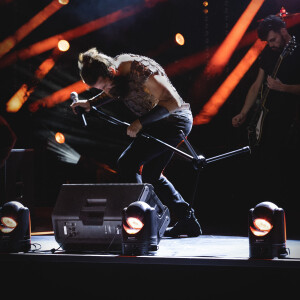

With its shock-resistant front grille and ideal 55° tilt angle, the ICOA 12 is also suitable as a floor monitor. In vertical use, the 36 mm dual-tilt tripod mount allows for a tilt angle of 0° or 5°, enabling optimal adaptation of the system to the specific sound reinforcement situation. Extensive and clever accessories for installation and transport are available as options. Four aluminum handles with an ergonomic, rubberized surface ensure optimal grip when carrying the speaker.

LD Systems ICOA 12 PC

45,00 €

incl. 19% VAT (Paket)

Available

Payment Benefit:
Save 3% via bank transfer / advanced payment
Your price at checkout: 296,34 €

Produktart	PA Lautsprecher
Typ	Passive
Größe Tieftöner	12 "
Größe Tieftöner	304,8 mm
Magnet Tieftöner	Ferrit
Marke Tieftöner	Custom Made
Horn	BEM optimiertes CD Horn
Größe HF Treiber	1 "
Größe HF Treiber	25,4 mm
Magnet HF Treiber	Ferrit
Marke HF Treiber	Custom Made
Schwingspule HF Treiber	1,4 "
Schwingspule HF Treiber	35 mm
Belastbarkeit (RMS)	250 W
Abstrahlwinkel (H x V)	90° x 50°
Belastbarkeit (Peak)	1000 W
Frequenzgang	55 Hz - 20000 Hz
Übernahmefrequenz	2000 Hz
SPL (1 W/1 m)	93 dB
Max. SPL	123 dB
Impedanz	8 Ohm
Lautsprechereingänge	1

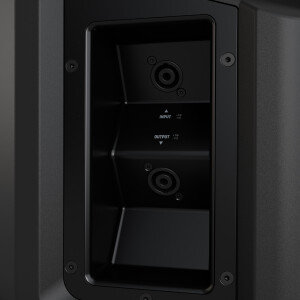

Lautsprechereingangsanschlüsse	Speakon kompatibel
Lautsprecherausgänge	1
Lautsprecherausgangsanschlüsse	Speakon kompatibel
Gehäusematerial	Polypropylen
Gehäusebauart	Bassreflex
Montage	36 mm Flansch (0°, 5°)
Montage	6 x M10 Flugpunkte
Monitorwinkel	55 °
Breite	375 mm
Höhe	635 mm
Tiefe	396 mm
Gewicht	19,8 kg
