Frequency Range:584 - 608 MHz| 655 - 679 MHz| 823 - 832 MHz| 863 - 865 MHz
The LD Systems MEI 1000 G2 B 5 is an in-ear monitoring system with 96 UHF channels, offering natural sound, a wide dynamic range, and excellent crosstalk performance in the 584–608 MHz frequency band.
Three selectable monitor modes (Mono, Stereo, Focus), along with adjustable EQ and limiter functions, enable natural sound reproduction for any application, with a frequency response of 60 Hz–16 kHz, a high signal-to-noise ratio, and low total harmonic distortion. The LD MEI 1000 G2 allows for the simultaneous operation of up to five systems.

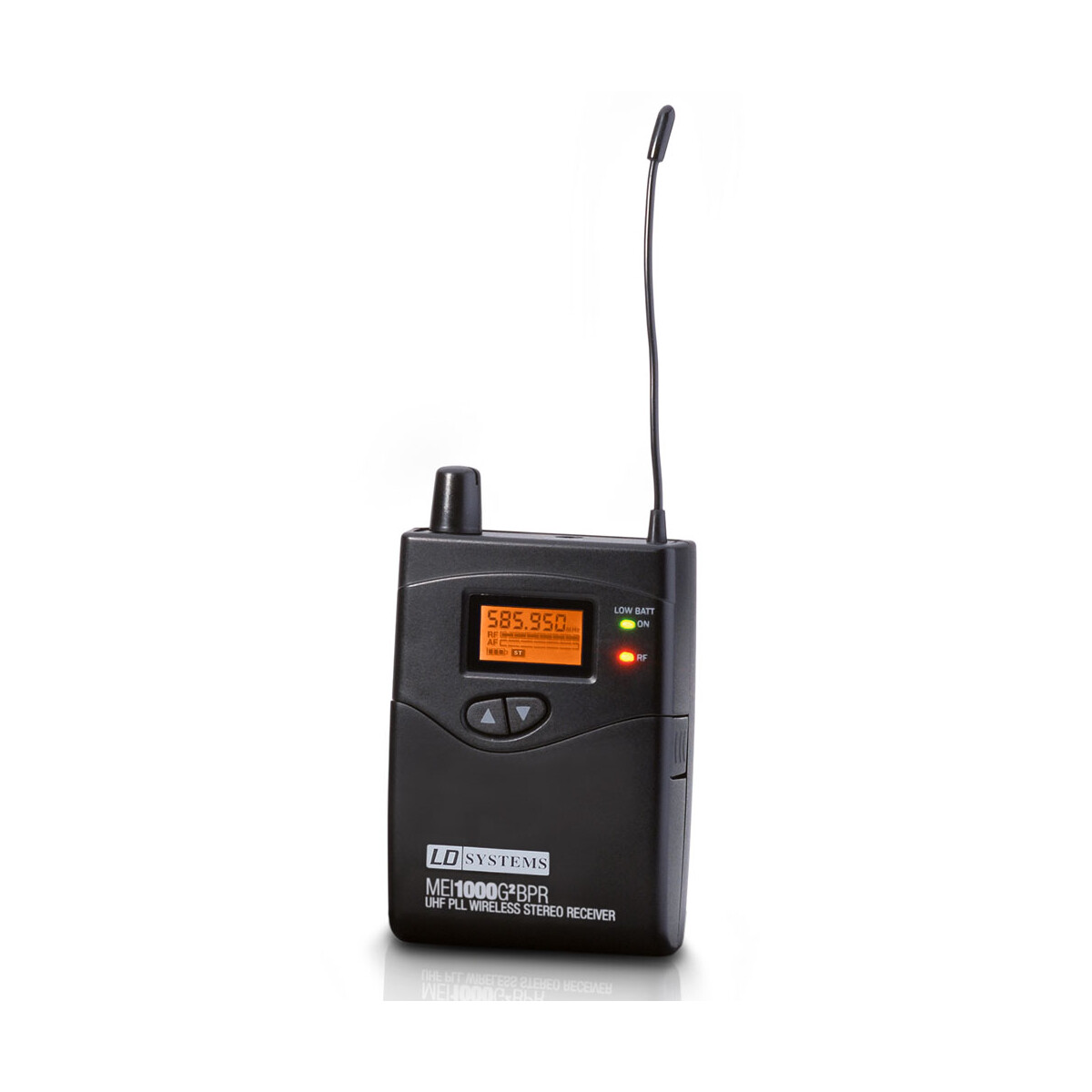

The earphones offer a high level of wearing comfort, and the receiver's multi-function display shows all relevant information. High-quality batteries provide operating times of 12 hours or more.
A 19" rackmount kit and a robust ABS plastic transport case complete the MEI 1000 G2 package.
| Produktart | In Ear Monitoring Zubehör |
| Typ | Sender |
| Funkfrequenzbereich | 584 - 607 MHz |
| Kanäle | 96 (8 Gruppen à 12 Kanäle) |
| Übertragungsverfahren | FM, stereo |
| HF-Ausgangsleistung | 10 mW |
| Frequenzgang | 60 - 16000 |
| Geräuschspannungsabstand | 85 dB |
| Eingänge | 2 |
| Eingangsanschlüsse | 6,3 mm Klinke |
| Eingangsanschlüsse | XLR |
| Eingangsimpedanz (kOhm) | 14 kOhm |
| Antennenanschluss | BNC |
| Bedienelemente | Input Level |
| Bedienelemente | Pad |
| Bedienelemente | Power |
| Bedienelemente | Set |
| Bedienelemente | Up |
| Bedienelemente | Volume Headphone |
| Anzeigeelemente | LC-Display |
| Stromversorgung | 12 - 18 V DC |
| Breite | 200 mm |
| Höhe | 44 mm |
| Tiefe | 96 mm |
| Gewicht | 1,116 kg |
| Zubehör (im Lieferumfang) | Antenne |
| Zubehör (im Lieferumfang) | Netzteil |
