Reliable in-ear monitoring with a range of over 100 m
96 channels to choose from
2, 10, or 30 mW ERP selectable transmit power
Convenient infrared synchronization
Username input and memory for 10 custom presets
Wide frequency response
3-band EQ with parametric mids
Switchable limiter
Stereo or mono operation
Direct monitoring via headphone output on the transmitter
Bodypack with three-stage switchable squelch
10-hour bodypack runtime with two AA batteries
Up to 12 systems can be used simultaneously
U500® IEM transmitter compatible with U300® IEM bodypacks

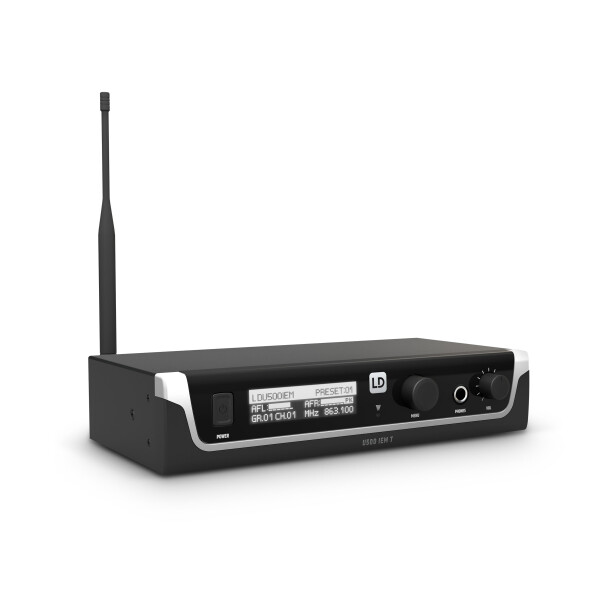

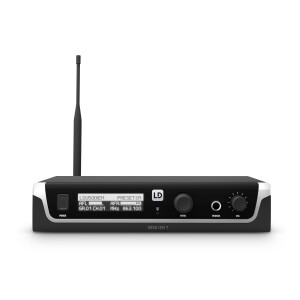

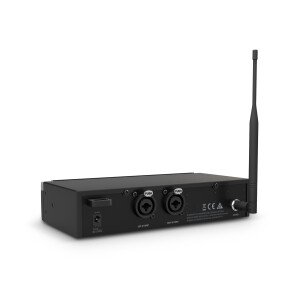

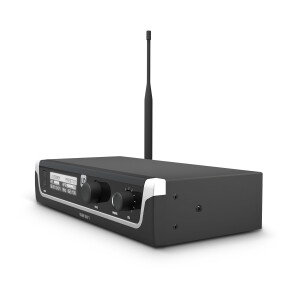

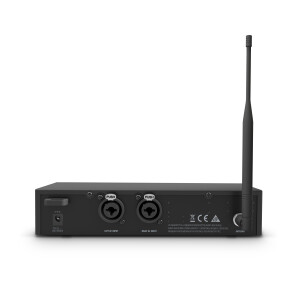

LD Systems U500 IEM T

Name: LD Systems U500 IEM T
Brand: LD Systems
SKU: 200130664-V
Price: 254.00 EUR
Availability: InStock

Item No.: 200130664-V

254,00 €

pieces

incl. 19% VAT (Paket)

Frequecy Range

Do you want to order multiple variants at once?

In stock

Payment Benefit:
Save 3% via bank transfer / advanced payment
Your price at checkout: 246,38 €

Description
Technische Daten

Product Information

Category H-L:

LD Systems U500 series
Frequency Range:

584 - 608 MHz| 655 - 679 MHz| 823 - 832 MHz| 863 - 865 MHz

Product Description

With perfect monitor sound directly in your ear, you can move completely freely on stage. The wireless U500® in-ear monitoring systems offer 96 selectable transmission channels with 2, 10, or 30 mW selectable RF transmission power and a range of over 100 m. Transmitter and receiver are quickly and easily synchronized via infrared, and high-contrast OLED displays provide an optimal overview of functions. Individual usernames can be entered, and 10 custom presets can be saved. U500® in-ear systems are characterized by exceptionally low noise, with a signal-to-noise ratio of over 95 dB and total harmonic distortion below 0.3%.

For clean, precise sound, U500® IEM transmitters feature a 3-band EQ with parametric mids, a switchable limiter, and a squelch. They can be operated in stereo or mono, and a convenient headphone output allows for direct monitoring of the input signals.

Produktart	In Ear Monitoring Zubehör
Typ	Sender
Funkfrequenzbereich	584 - 608 MHz
Kanäle	12
Betriebsarten	Focus/Mono/Stereo
Übertragungsverfahren	FM, mono/stereo
HF-Ausgangsleistung	10 mW
HF-Ausgangsleistung	2 mW
HF-Ausgangsleistung	30 mW
Frequenzgang	40 - 16000
Geräuschspannungsabstand	93 dB
Klirrfaktor (THD)	0,3 %
Dynamik	88 dB
Eingänge	2
Eingangsanschlüsse	Combo TRS 6,3mm
Eingangsanschlüsse	XLR (symmetrisch)
Eingangsimpedanz (kOhm)	12 kOhm
Antennenanschluss	BNC
Bedienelemente	Lautstärke Kopfhörer
Bedienelemente	Menüauswahlknopf
Bedienelemente	Power On/Off
Anzeigeelemente	Multifunktional OLED Display
Stromversorgung	12 - 18 V DC
Breite	212 mm
Höhe	43 mm
Tiefe	123 mm
Gewicht	0,641 kg
Zubehör (im Lieferumfang)	19" Rack mount kit
Zubehör (im Lieferumfang)	BNC Antenne
Zubehör (im Lieferumfang)	Netzadapter
