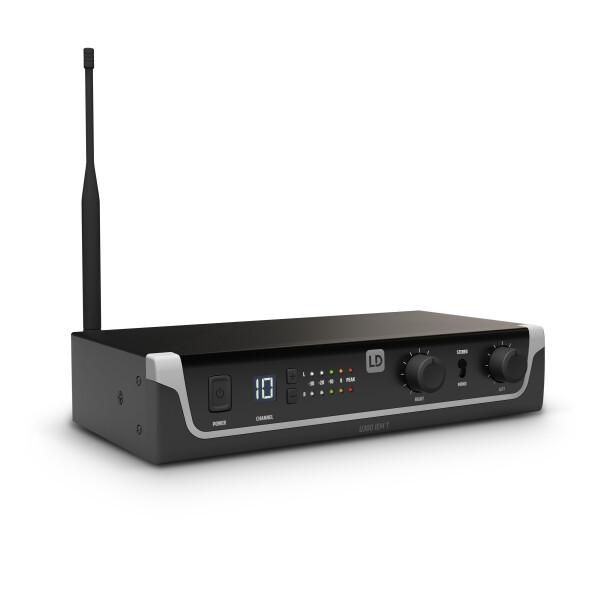

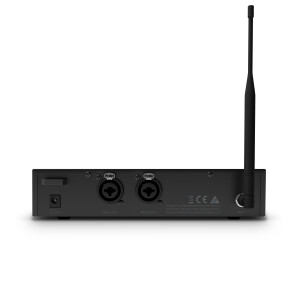

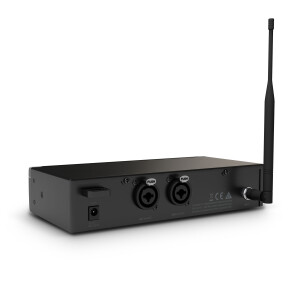

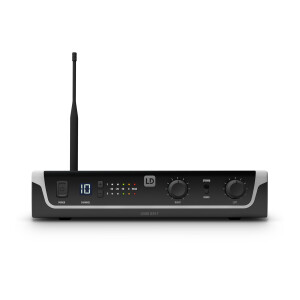

Category H-L:LD Systems U300 series
-
Frequency Range:584 - 608 MHz| 655 - 679 MHz| 823 - 832 MHz| 863 - 865 MHz
The new LD Systems U300 IEM in-ear monitoring system with 96 UHF channels offers superior sound quality and a wide dynamic range in the 584 MHz - 608 MHz, 655 MHz - 679 MHz, 823 MHz - 832 MHz + 863 MHz - 865 MHz, 470 MHz - 490 MHz, or 514 MHz - 542 MHz bands.
For perfect monitoring for live musicians, actors, or speakers, the system can be switched between mono and stereo modes. An integrated limiter ensures smooth, distortion-free sound reproduction with a frequency response of 50 Hz – 16 kHz and is characterized by its high signal-to-noise ratio and low total harmonic distortion. The LD U300 IEM enables simultaneous operation of up to 6 systems. The multifunction displays on the transmitter and receiver show all important system states. High-quality batteries provide operating times of 10 hours or more. *License-free: ISM band license-free in Europe; please check duplex gap regulations in your specific country.
| Produktart | In Ear Monitoring Zubehör |
| Typ | Sender |
| Funkfrequenzbereich | 584 - 608 MHz |
| Kanäle | 12 |
| Betriebsarten | FM, mono/stereo |
| Betriebsarten | Mono/Stereo |
| Übertragungsverfahren | FM, mono/stereo |
| HF-Ausgangsleistung | 10 mW |
| Frequenzgang | 50 - 16.000 |
| Geräuschspannungsabstand | 90 dB |
| Klirrfaktor (THD) | <0,5% |
| Dynamik | 88 dB |
| Eingänge | 2 |
| Eingangsanschlüsse | 6,3 mm Klinke |
| Eingangsanschlüsse | XLR |
| Eingangsimpedanz (kOhm) | 8,5 kOhm |
| Eingangsempfindlichkeit | -4,5 dbu |
| Antennenanschluss | BNC |
| Bedienelemente | Eingangspegel |
| Bedienelemente | Mono-Stereo Schalter |
| Bedienelemente | Power On/Off |
| Anzeigeelemente | LC-Display |
| Leistungsaufnahme | 1,7 W |
| Stromversorgung | 12 - 18 V DC |
| Breite | 212 mm |
| Höhe | 43 mm |
| Tiefe | 123 mm |
| Gewicht | 0,66 kg |
| Zubehör (im Lieferumfang) | 19" Rack mount kit |
| Zubehör (im Lieferumfang) | BNC Antenne |
| Zubehör (im Lieferumfang) | Netzteil |
