Dual receiver

LD Systems U300 R2

Name: LD Systems U300 R2
Brand: LD Systems
SKU: 200130611-V
Price: 267.00 EUR
Availability: InStock

Item No.: 200130611-V

267,00 €

pieces

incl. 19% VAT (Paket)

Frequecy Range

Do you want to order multiple variants at once?

In stock

Payment Benefit:
Save 3% via bank transfer / advanced payment
Your price at checkout: 258,99 €

Description
Technische Daten

Product Information

Category H-L:

LD Systems U300 series
Frequency Range:

584 - 608 MHz| 655 - 679 MHz| 823 - 832 MHz| 863 - 865 MHz

Product Description

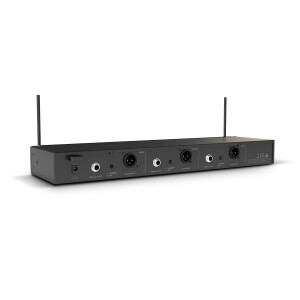

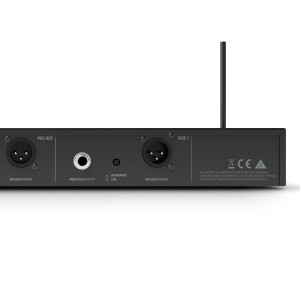

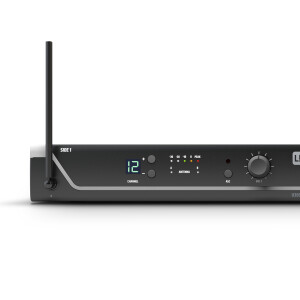

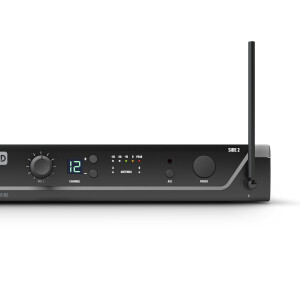

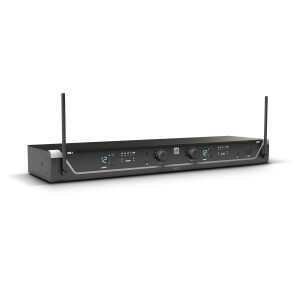

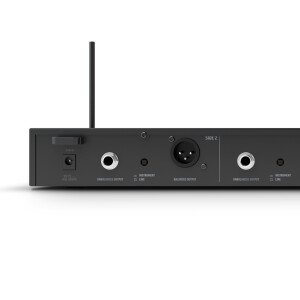

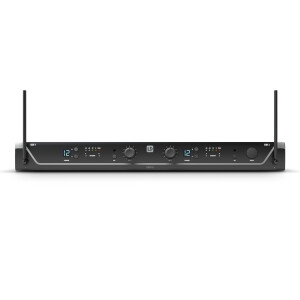

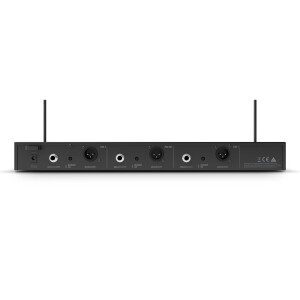

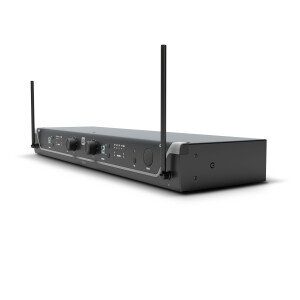

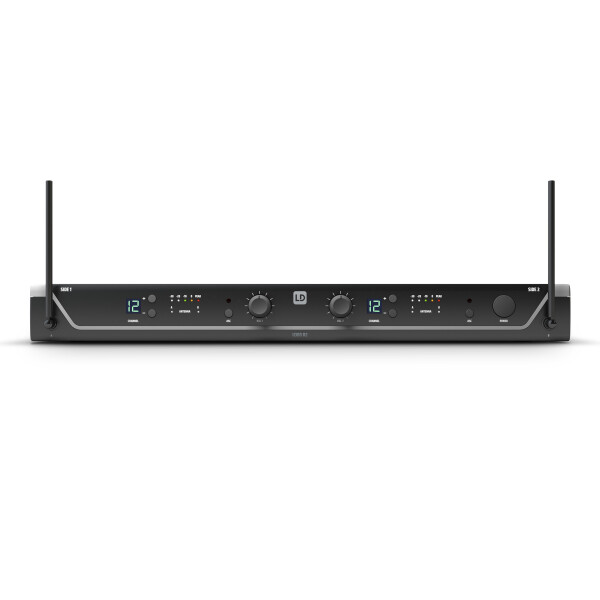

This 12-channel diversity UHF dual receiver from the U300 R2 series uses FM technology and has a frequency response of 35 Hz - 16 kHz. Convenient one-touch synchronization via infrared ensures a quick and trouble-free wireless connection with the series' handheld microphone or bodypack, while a squelch with pilot tone guarantees interference-free operation. The U305 R2 receiver features an elegant metal housing with a bright LCD channel display, channel selection buttons, and LEDs indicating audio signal strength and active antenna status. On the rear panel are two balanced XLR outputs and two unbalanced 6.35 mm jack outputs, which can be switched to instrument level for direct connection to guitar and bass amplifiers. A power adapter is included.

LD Systems U300 BP

120,00 €

incl. 19% VAT (Paket)

Available

Payment Benefit:
Save 3% via bank transfer / advanced payment
Your price at checkout: 258,99 €

LD Systems U300 MD

120,00 €

incl. 19% VAT (Paket)

Available

Payment Benefit:
Save 3% via bank transfer / advanced payment
Your price at checkout: 258,99 €

Produktart	Funkmikrofon System Zubehör
Typ	Empfänger
Modulationsart	FM
Funkfrequenzbereich	584 - 608 MHz
Kanäle	12
Gruppen	1
Antenneneingänge	2 x festgelegt
Frequenzgang	35 - 16000
Rauschunterdrückung	Squelch
Übertragungsoptimierung	Pilotton
Klirrfaktor (THD)	< 0,3 %
Geräuschspannungsabstand	104 dB
Audio-Ausgang symmetrisch	3 x XLR
Audio-Ausgang unsymmetrisch	6,3 mm Klinke
Audio-Ausgang unsymmetrisch	schaltbarer unsymmetrischer Ausgangspegel (Line/Instrument)
Audio-Ausgang Mix symmetrisch	XLR
Audio-Ausgang Mix unsymmetrisch	6,3 mm Klinke
Max. Ausgangspegel	+10 dBu (Bal), +7 dBV (Unbal, Line), +2,5 dBV (Unbal, Instr) dBu
Bedienelemente	2 x Volume
Bedienelemente	Channel down
Bedienelemente	Channel up
Bedienelemente	Line/Instrument Level
Bedienelemente	Power On/Off
Anzeigeelemente	5-LED VU-Meter
Anzeigeelemente	Antenne A/B
Anzeigeelemente	LC-Display
Betriebsspannung	12 V DC, 500 mA
Breite	410 mm
Höhe	43 mm
Tiefe	120 mm
Gewicht	1,265 kg
Zubehör (im Lieferumfang)	2 x AA Batterien
Zubehör (im Lieferumfang)	Netzteil
Weitere Eigenschaften	IR Frequenzsynchronisierung
Weitere Eigenschaften	Pilotton
