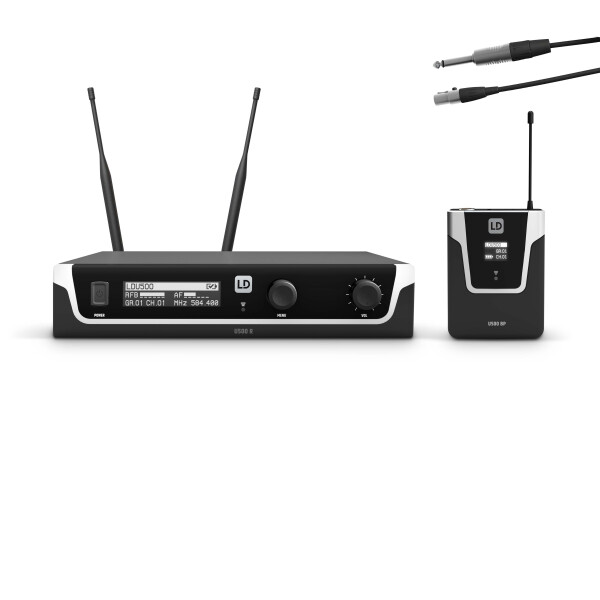

LD Systems U500 BPG

Name: LD Systems U500 BPG
Brand: LD Systems
SKU: 200130645-V
Price: 359.00 EUR
Availability: InStock

Item No.: 200130645-V

359,00 €

incl. 19% VAT (Paket)

Frequecy Range

pieces

In stock

Payment Benefit:
Save 3% via bank transfer / advanced payment
Your price at checkout: 348,23 €

Description
Technische Daten

Product Information

Category H-L:

LD Systems U500 series
Frequency Range:

584 - 608 MHz| 655 - 679 MHz| 823 - 832 MHz| 863 - 865 MHz
Incl. Body Packs:

1x body pack

Product Description

Whether you play guitar, bass, wind, or string instruments, the U500® Series was designed with your needs in mind. Professional sound, amazing performance, and reliability at an affordable price have always been our development team's top priorities. Because with the same passion you use to captivate your audience on stage, we want to captivate you with our U500® Series. We hope you love it as much as we do – the new U500® Wireless Instrument Set from LD Systems. With selectable transmit power up to 30 mW, the U500® Instrument Sets achieve a range of over 100 meters in open field conditions. They are available for three radio frequency bands: 584–608 MHz and 655–679 MHz, in which you can operate 12 systems simultaneously in each band, and six systems simultaneously in the 823–832 MHz and 863–865 MHz bands. For a distortion-free audio signal, the bodypack's gain control allows for a maximum of 27 dB of attenuation, perfectly matching active and passive guitars and basses, or wind instruments with high sound pressure levels. Even the lowest bass notes are precisely reproduced thanks to the frequency response extending down to 30 Hz. The receiver's output impedance and level can be switched for direct connection to guitar and bass amplifiers. The U500® True Diversity UHF wireless systems feature an automatic scan function that finds the best available frequency. This, along with convenient one-touch infrared synchronization of the transmitter and receiver, simplifies setup. High-contrast OLED displays provide an optimal overview of functions, showing group, channel, radio frequency, signal strength, and battery status. Custom user names can also be entered. In addition to the squelch, an inaudible pilot tone from the bodypack ensures interference-free operation. It protects against interference and mutes the receiver when a radio signal without this tone is present. The effective U500® technology with high-quality components achieves precise, distortion-free transmission without latency or artifacts. The low power consumption ensures a transmitter operating time of up to 10 hours with two AA batteries. The U500® series instrument sets are available in two versions: for wind instruments with a clip-on microphone, or for guitars and basses with a low-capacitance cable that is double-shielded against interference. Instrument Set Frequency Range Overview: U505 // 584 – 608 MHz // 12 systems can be used simultaneously U506 // 655 – 679 MHz // 12 systems can be used simultaneously U508 // 823 – 832 MHz + 863 – 865 MHz // six systems can be used simultaneously U506 UK (Canal 38) // 606 – 614 MHz // six systems can be used simultaneously usable

U518 // 1785 – 1800 MHz // four systems usable simultaneously

LD Systems BP POCKET 2

9,25 €

incl. 19% VAT plus (Paket)

Available

Payment Benefit:
Save 3% via bank transfer / advanced payment
Your price at checkout: 348,23 €

LD Systems U500 RK

46,70 €

incl. 19% VAT (Paket)

Available

Payment Benefit:
Save 3% via bank transfer / advanced payment
Your price at checkout: 348,23 €

Produktart	Funkmikrofon Systeme
Typ	Set
Funkfrequenzbereich	584 - 608 MHz
Gewicht	2,46 kg

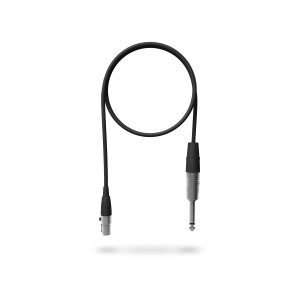

Produktart	Funkmikrofon System Zubehör
Typ	Gitarrenkabel
Anschluss	Mini-XLR (3-Pol, weiblich)
Anschluss 2	6,3 mm Klinke
Kabellänge	0,8 m
Gewicht	0,045 kg

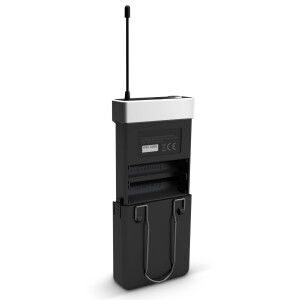

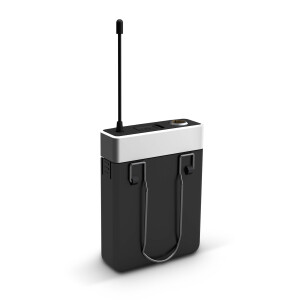

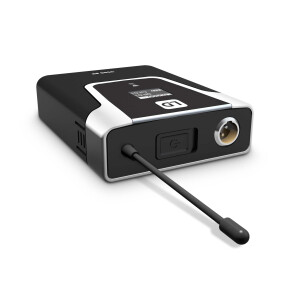

Produktart	Funkmikrofon System Zubehör

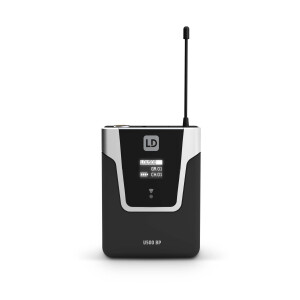

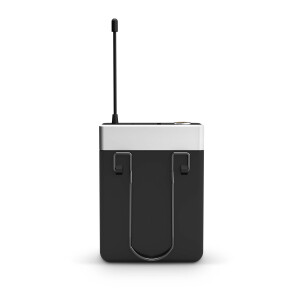

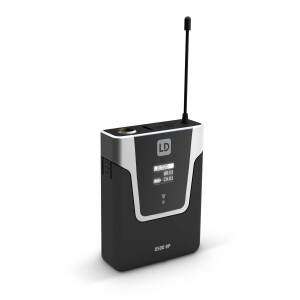

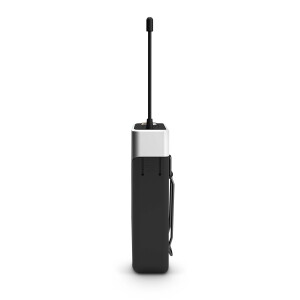

Typ	Bodypack
Funkfrequenzbereich	584 - 608 MHz
Kanäle	96 (8 Gruppen à 12 Kanäle)
Gruppen	8
Eingänge	Mini-XLR (3-Pol)
Frequenzgang	30 - 16000
Geräuschspannungsabstand	>90 dB
HF-Ausgangsleistung	Variabel (2mW, 10mW, 30mW)
Bedienelemente	2 x Pfeiltasten (Werteeingabe, hoch/runter)
Bedienelemente	Power On/Off
Bedienelemente	Set
Anzeigeelemente	OLED Display
Stromversorgung	2 x AA Batterie
Betriebsdauer	>10 Stunden (mit Alkali-Batterien)
Breite	65 mm
Höhe	86 mm
Tiefe	23 mm
Gewicht	0,09 kg
Weitere Eigenschaften	abnehmbare Antenne
Weitere Eigenschaften	IR Frequenzsynchronisierung
Weitere Eigenschaften	Pilottonerkennung/ regelbare Rauschsperre (Squelch)
Weitere Eigenschaften	schaltbare RF Power
Weitere Eigenschaften	Schaltbare Verstärkung

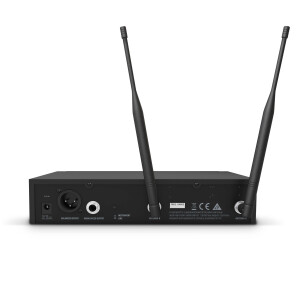

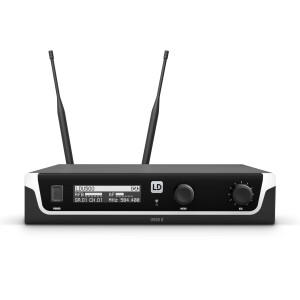

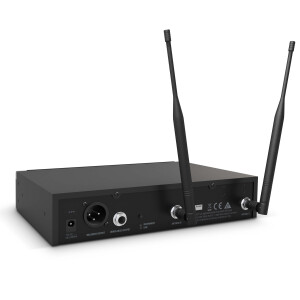

Produktart	Funkmikrofon System Zubehör

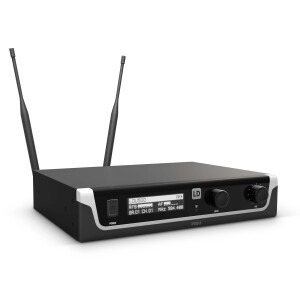

Typ	Empfänger
Modulationsart	FM
Funkfrequenzbereich	584 - 608 MHz
Kanäle	96 (8 Gruppen à 12 Kanäle)
Gruppen	8
Antenneneingänge	2
Antennenanschluss	BNC
Frequenzgang	30 - 16000
Rauschunterdrückung	Squelch
Klirrfaktor (THD)	< 0.3 %
Geräuschspannungsabstand	> 100 dB
Audio-Ausgang symmetrisch	XLR
Audio-Ausgang unsymmetrisch	6,3 mm Klinke
Max. Ausgangspegel	+10 dBu
Bedienelemente	Digital Encoder
Bedienelemente	Power On/Off
Bedienelemente	Volume
Anzeigeelemente	OLED Display
Stromversorgung	12 - 18 V DC
Betriebsspannung	12 V DC, 500 mA
Breite	212 mm
Höhe	44 mm
Tiefe	159 mm
Gewicht	0,85 kg
Zubehör (im Lieferumfang)	2 x Antenne
Zubehör (im Lieferumfang)	Audiokabel
Zubehör (im Lieferumfang)	Netzadapter
Weitere Eigenschaften	IR Frequenzsynchronisierung
Weitere Eigenschaften	Kanal-Suchfunktion
Weitere Eigenschaften	Pilotton
