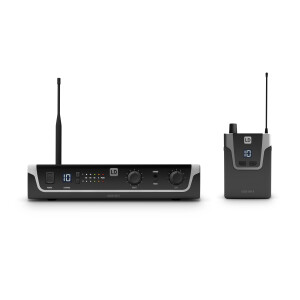

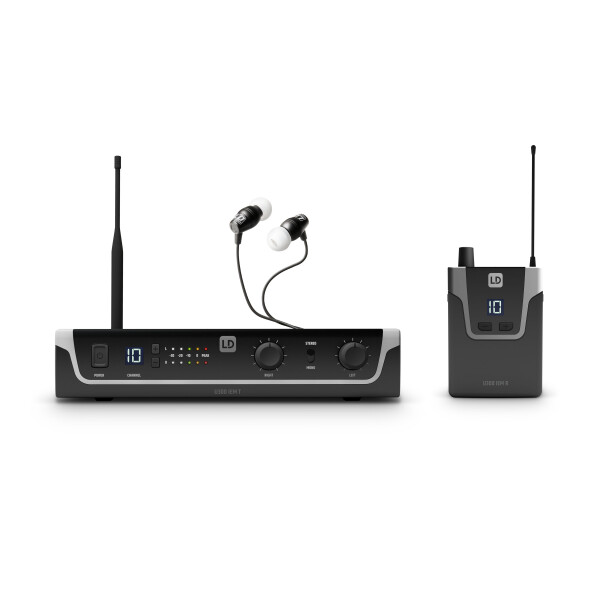

In-ear monitoring system with earphones

Reliable wireless transmission up to 100 m range. Deep frequency response. 12 selectable channels. Stereo or mono mode selectable. Up to 6 systems can be used simultaneously. 10 h bodypack runtime with two AA batteries. Unlimited number of bodypacks can be set to the same transmission frequency. Channel and RF reception indicator on the bodypack. Transmitter in a robust metal housing with stereo level indicator. Detachable antenna with BNC connector. 19" rack mounting kit included. Earphones included.

LD Systems U300 IEM HP

Name: LD Systems U300 IEM HP
Brand: LD Systems
SKU: 200130606-V
Price: 257.00 EUR
Availability: InStock

Item No.: 200130606-V

257,00 €

pieces

incl. 19% VAT (Paket)

Frequecy Range

Do you want to order multiple variants at once?

In stock

Payment Benefit:
Save 3% via bank transfer / advanced payment
Your price at checkout: 249,29 €

Description
Technische Daten

Product Information

Category H-L:

LD Systems U300 IEM
Frequency Range:

584 - 608 MHz| 655 - 679 MHz| 823 - 832 MHz| 863 - 865 MHz
Incl. Body Packs:

1x body pack
Incl. Earphones:

Yes

Product Description

Unrestricted freedom of movement on stage while always having perfect monitor sound directly in your ear – that's what we developed the U300® wireless in-ear monitoring systems for in Germany. With their clean, modern design and straightforward operation, they are an ideal choice not only for beginners. The reliable range of up to 100 m and the deep frequency response of 50 Hz - 16 kHz ensure a professional performance. U300® in-ear sets are available for operation in 5 frequency bands: 584 MHz - 608 MHz, 655 MHz - 679 MHz, 823 MHz - 832 MHz + 863 MHz - 865 MHz, 470 MHz - 490 MHz or 514 MHz - 542 MHz. Up to six systems can be used simultaneously.

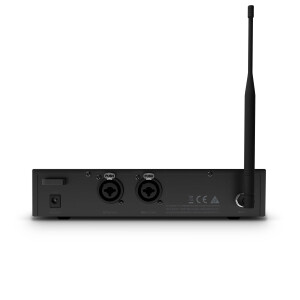

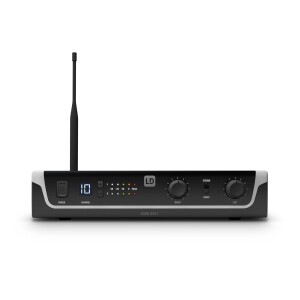

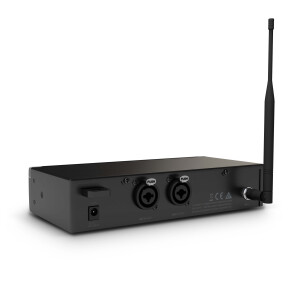

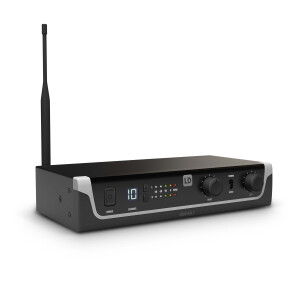

The U300® in-ear transmitters offer 12 selectable transmission channels, an RF transmission power of 10 mW, and can be operated in mono or stereo mode. Combo jacks serve as balanced XLR and unbalanced 6.35 mm jack inputs. The input level for the left and right channels can be adjusted separately, and two LED chains indicate the audio signal strength.

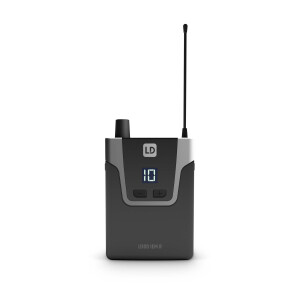

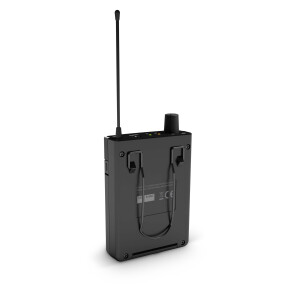

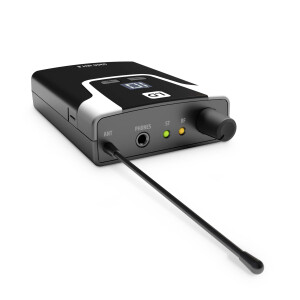

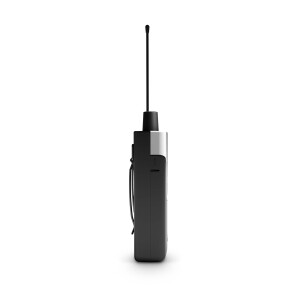

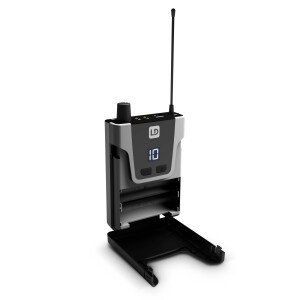

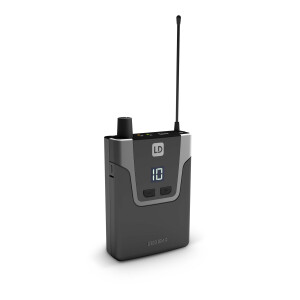

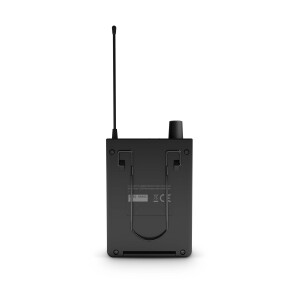

The U300® bodypack receiver has a mini-jack socket for connecting earphones and indicators for channel, stereo operation, and low battery. It achieves 10 hours of runtime with two AA batteries. A convenient control knob allows for individual adjustment of the monitoring volume during the performance. A 19" rack mounting kit is included.

LD Systems U IEM RK

25,60 €

incl. 19% VAT plus (Paket)

Available

Payment Benefit:
Save 3% via bank transfer / advanced payment
Your price at checkout: 249,29 €

Produktart	In Ear Monitoring
Typ	Set
Frequenzbereich	584 - 608 Hz
Gewicht	1,51 kg

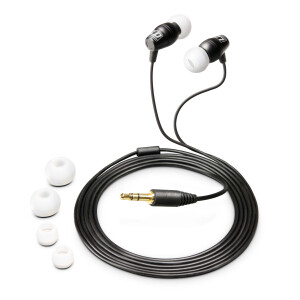

Produktart	Kopfhörer
Frequenzgang	30 - 20.000
Impedanz	16 Ohm
Anschlusstyp	3,5 mm Stereoklinke
Kabellänge	1,5 m
Gewicht	0,088 kg
Produktart	In Ear Monitoring Zubehör
Typ	Empfänger
Funkfrequenzbereich	584 - 608 MHz
Kanäle	12
Übertragungsverfahren	FM, mono/stereo
Frequenzgang	50 - 16.000
Klirrfaktor (THD)	0,25 %
Audio-Ausgänge	3,5 mm Stereoklinke
minimale angeschlossene Impedanz	16 Ohm
Max. Audio-Ausgangspegel	100 (@ 16 Ohm Belastbarkeit) mW
Max. Audio-Ausgangspegel	73 (@ 33 Ohm Belastbarkeit) mW
Antennenanschluss	Fest mit Gehäuse verbunden
Bedienelemente	An- Ausschalter
Bedienelemente	Channel down
Bedienelemente	Channel up
Bedienelemente	Lautstärkeregler
Anzeigeelemente	LC-Display
Anzeigeelemente	RF (LED)
Stromversorgung	2 x 1,5 V AA
Betriebsdauer	< 10 Std.
Breite	64 mm
Höhe	103 mm
Tiefe	24 mm
Gewicht	0,085 kg
Features	Batteriestatus-LED
Features	inkl. Batterien
Produktart	In Ear Monitoring Zubehör
Typ	Sender
Funkfrequenzbereich	584 - 608 MHz
Kanäle	12
Betriebsarten	FM, mono/stereo
Betriebsarten	Mono/Stereo
Übertragungsverfahren	FM, mono/stereo
HF-Ausgangsleistung	10 mW
Frequenzgang	50 - 16.000
Geräuschspannungsabstand	90 dB
Klirrfaktor (THD)	<0,5%
Dynamik	88 dB
Eingänge	2
Eingangsanschlüsse	6,3 mm Klinke
Eingangsanschlüsse	XLR
Eingangsimpedanz (kOhm)	8,5 kOhm
Eingangsempfindlichkeit	-4,5 dbu
Antennenanschluss	BNC
Bedienelemente	Eingangspegel
Bedienelemente	Mono-Stereo Schalter
Bedienelemente	Power On/Off
Anzeigeelemente	LC-Display
Leistungsaufnahme	1,7 W
Stromversorgung	12 - 18 V DC
Breite	212 mm
Höhe	43 mm
Tiefe	123 mm
Gewicht	0,66 kg
Zubehör (im Lieferumfang)	19" Rack mount kit
Zubehör (im Lieferumfang)	BNC Antenne
Zubehör (im Lieferumfang)	Netzteil
