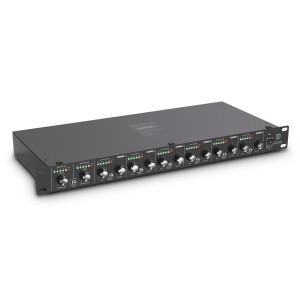

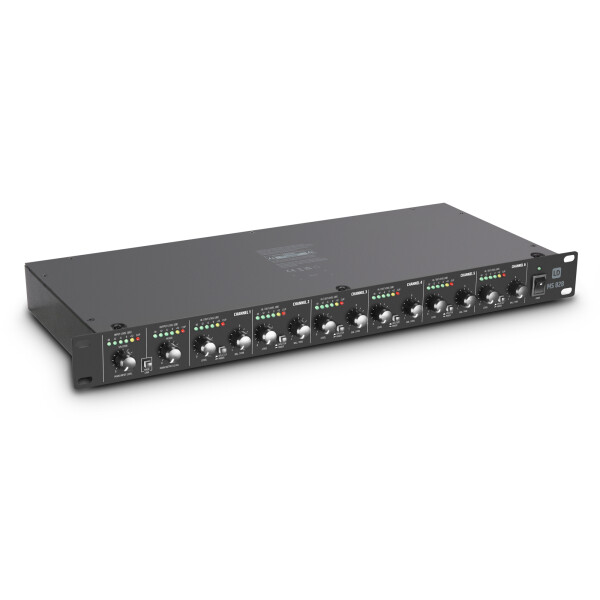

The LD Systems LDMS828 is a mixer, signal splitter, and gain amplifier in a 19" rack format for flexible live and studio applications.

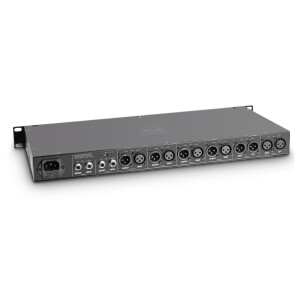

The LDMS828 features one stereo and six mono channels with individual LED levels. All inputs and outputs are electronically balanced. Two mono channels are equipped with stereo jack sockets, while the remaining connections are XLR. The stereo channel has individual input and output volume controls and a link button for signal pass-through. Each mono channel has volume and pan controls, as well as a switch to select between splitter and mixer modes.
In addition to its practical features, the LDMS828 from LD Systems also boasts impressive technical specifications. The wide frequency response of 5–40,000 Hz, a dynamic range of 85 dB, and the extremely low total harmonic distortion of 0.0008% guarantee the highest signal fidelity, and the nominal operating level of -10 dBV to +4 dBU makes the mixer/splitter suitable for connecting both professional and consumer devices.
| Produktart | Mischpulte |
| Typ | Installationen |
| Kanäle | 8 |
| Mono Line Eingangskanäle | 6 |
| Mono Line Eingangsanschlüsse | 2 x 6,3 mm Klinke |
| Mono Line Eingangtyp | Elektronisch symmetriert |
| Stereo Line Eingangskanäle | 1 |
| Stereo Line Eingangsanschlüsse | 2 x XLR |
| Stereo Line Eingangstyp | Elektronisch symmetriert |
| Eingangsimpedanz | (balanced) 50000 Ohm |
| Eingangsimpedanz | (unbalanced) 25000 Ohm |
| Max. Eingangspegel | +21 dBu |
| nominaler Arbeitspegel | -10 dBV - +4 dBu |
| Mono Ausgangskanäle | 6 |
| Mono Ausgangsanschlüsse | 2 x 6,3 mm Klinke |
| Mono Ausgangstyp | Elektronisch symmetriert |
| Stereo Ausgangskanäle | 1 |
| Stereo Ausgangsanschlüsse | 1 x XLR |
| Stereo Ausgangstyp | Elektronisch symmetriert |
| Ausgangsimpedanz | (balanced) 60 Ohm |
| Ausgangsimpedanz | (unbalanced) 30 Ohm |
| Max. Ausgangspegel | +22 dBu |
| Frequenzgang | 5 - 40000 |
| THD | 0,0008 % |
| S/N Ratio | 85 dB |
| Bedienelemente | Level Kanal 1-6, Bal/Pan Kanal 1-6 |
| Bedienelemente | Main Input Level |
| Bedienelemente | Main Link |
| Bedienelemente | Main Output Level |
| Bedienelemente | Power |
| Bedienelemente | Splitter/Mixer Kanal 1-6 |
| Anzeigeelemente | In/Out Level Kanal 1-6 (6 Segment) |
| Anzeigeelemente | Input Level LED Anzeige (6 Segment) |
| Anzeigeelemente | Output Level Anzeige (6 Segment) |
| Anzeigeelemente | Power |
| Betriebsspannung | 220 V AC - 240 V AC, 50 - 60 Hz |
| Netzanschluss | IEC Gerätebuchse |
| Leistungsaufnahme | 15 W |
| Sicherung | T 315 mAL, AC 250V |
| Breite | 483 mm |
| Höhe | 44,5 mm |
| Tiefe | 216 mm |
| Gewicht | 3 kg |
| Zubehör (im Lieferumfang) | Netzkabel |
