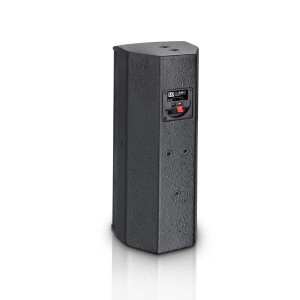

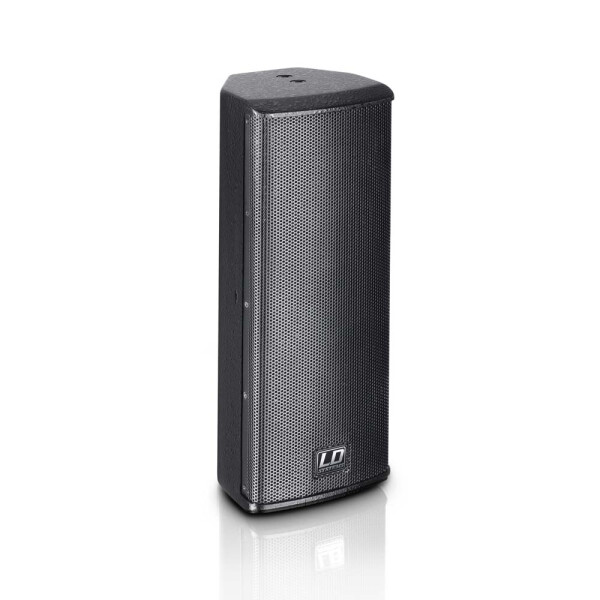

The LD Systems SAT242G2 is the powerful big brother of the SAT42G2 and is suitable for smaller installations and elegant integration into virtually any environment.
The closed design of this slim, compact loudspeaker features two 4" custom woofers and a 1" silk dome tweeter with waveguide, delivering a maximum sound pressure level of 108 dB. The LD SAT242G2 can handle 100 W RMS power and can be used as a standalone full-range speaker or with a subwoofer from the LD installation series for bass extension.

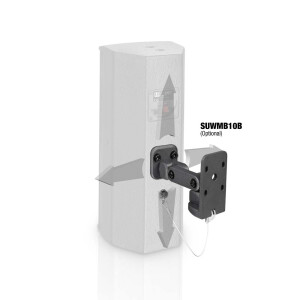

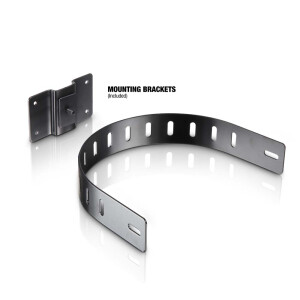

The SAT242G2's enclosure is constructed from 12mm thick MDF, finished with a durable textured paint, and is available in black and white. Connection is via spring terminals. M6 inserts and an included mounting bracket provide numerous mounting options; a universal swivel bracket is available as an accessory.
| Produktart | Installationslautsprecher |
| Typ | Wandlautsprecher |
| Größe Tieftöner | 2 x 4 " |
| Größe Tieftöner | 2 x 101 mm |
| Magnet Tieftöner | Ferrit |
| Marke Tieftöner | Custom Made |
| Größe HF Treiber | 1 " |
| Größe HF Treiber | 25 mm |
| Magnet HF Treiber | Ferrit |
| Marke HF Treiber | Custom Made |
| Abstrahlwinkel (H x V) | 60 x 60 ° |
| Belastbarkeit (RMS) | 100 W |
| Frequenzgang | 75 - 20000 |
| SPL (1 W/1 m) | 88 dB |
| Max. SPL | 108 dB |
| Impedanz | 8 Ohm |
| Schutzschaltungen | HF Treiber |
| Lautsprechereingänge | 1 |
| Lautsprechereingangsanschlüsse | Klemmanschluss |
| Lautsprecher pro Verstärkerkanal (DSP44/45K) | 4 |
| Gehäusematerial | 12 mm MDF |
| Gehäuseoberfläche | Strukturlack |
| Gehäusefarbe | schwarz |
| Gehäusebauart | geschlossen |
| Breite | 140 mm |
| Höhe | 378 mm |
| Tiefe | 135 mm |
| Gewicht | 4,15 kg |
