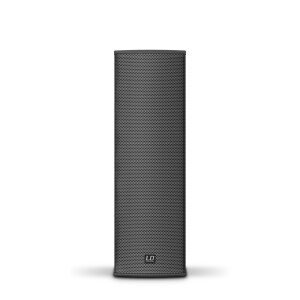

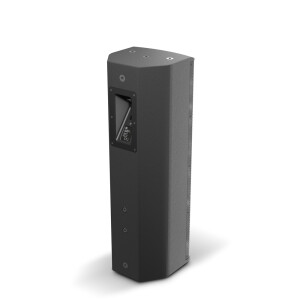

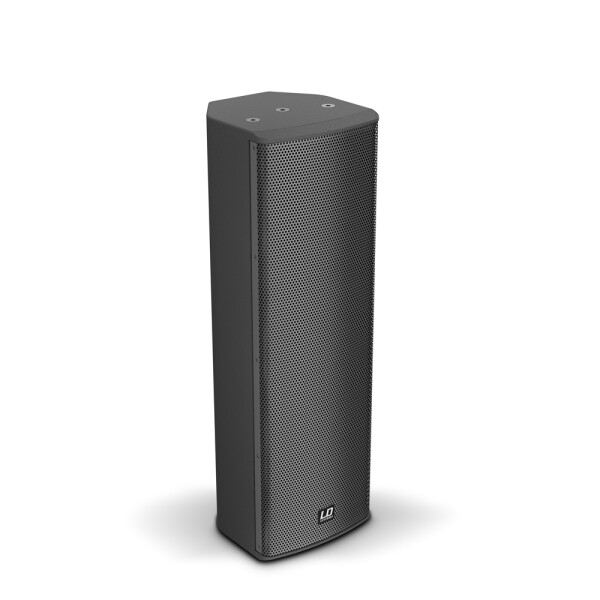

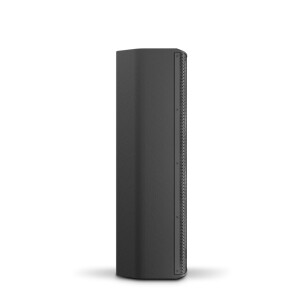

With its streamlined, slim design, the LD Systems SAT 262 G2 is ideally suited for permanent installation and discreet integration into almost any environment. It is equipped with two 6.5" custom woofers and a 1" Celestion compression driver, coupled to a rotatable CD horn with an 80° x 60° dispersion angle. This makes the passive 2-way loudspeaker suitable for both vertical and horizontal use.
The SAT 262 G2 achieves a maximum sound pressure level of 116 dB, its frequency response ranges from 65 Hz to 19 kHz, and it has a continuous power handling of 180 watts.

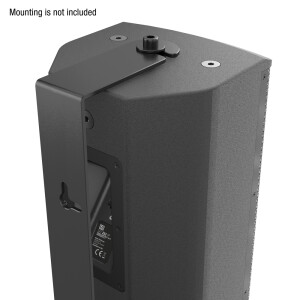

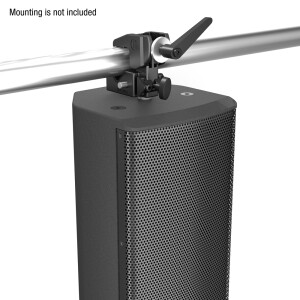

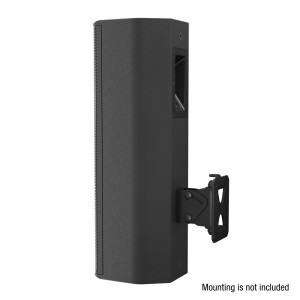

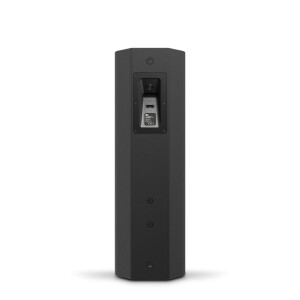

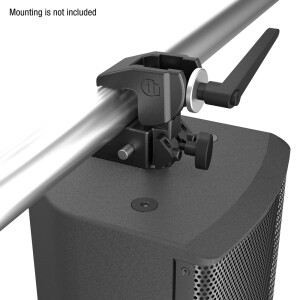

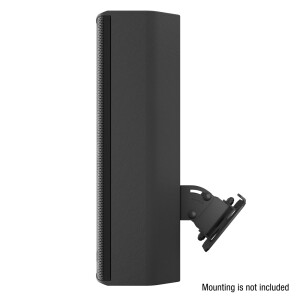

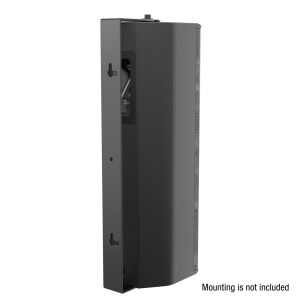

The reflex enclosure, made of 12 mm thick MDF, is equipped with four M8 rigging points. Inputs include a speakON-compatible jack and a terminal block, while another terminal block serves as the output for convenient parallel connection. Special wall brackets are available as accessories to simplify speaker installation. The SAT 262 G2 is available in black (part no. LDSAT262G2) or white textured paint (part no. LDSAT262G2W).
| Produktart | Installationslautsprecher |
| Typ | Wandlautsprecher |
| Größe Tieftöner | 2 x 6,5 " |
| Größe Tieftöner | 2 x 165,1 mm |
| Magnet Tieftöner | Ferrit |
| Marke Tieftöner | Custom Made |
| Schwingspule Tieftöner (mm) | 38,1 mm |
| Horn | CD Horn |
| Größe HF Treiber | 1 " |
| Größe HF Treiber | 25,4 mm |
| Magnet HF Treiber | Ferrit |
| Marke HF Treiber | Celestion |
| Schwingspule HF Treiber | 1 " |
| Schwingspule HF Treiber | 25,4 mm |
| Abstrahlwinkel (H x V) | 80 x 60 ° |
| Belastbarkeit (RMS) | 180 W |
| Belastbarkeit (Peak) | 360 W |
| Frequenzgang | 65 - 19000 |
| SPL (1 W/1 m) | 93 dB |
| Max. SPL | 116 dB |
| Impedanz | 8 Ohm |
| Schutzschaltungen | HF Treiber |
| Lautsprechereingänge | 2 |
| Lautsprechereingangsanschlüsse | Klemmblock |
| Lautsprechereingangsanschlüsse | Speakon kompatibel |
| Lautsprecherausgänge | 1 |
| Lautsprecherausgangsanschlüsse | Klemmblock |
| Lautsprecher pro Verstärkerkanal (DSP44/45K) | 4 |
| Gehäusematerial | 12 mm MDF |
| Gehäuseoberfläche | Strukturlack |
| Gehäusefarbe | schwarz |
| Gehäusebauart | Bassreflex |
| Breite | 200 mm |
| Höhe | 630 mm |
| Tiefe | 205 mm |
| Gewicht | 9,8 kg |
