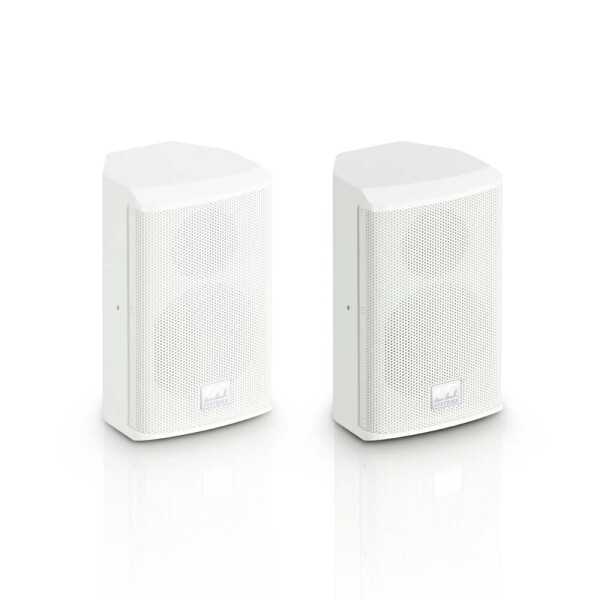

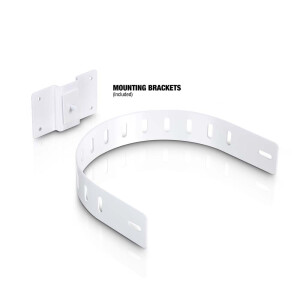

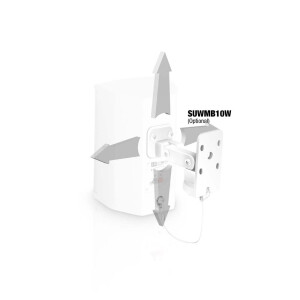

The LD Systems SAT42G2 is an ultra-compact 2-way loudspeaker, ideal for smaller installations and discreet integration into virtually any environment, such as restaurants, retail spaces, and homes. A 4" custom woofer and a 1" silk dome tweeter with waveguide deliver balanced sound with a 60° x 60° dispersion angle and a maximum sound pressure level of 103dB. The 16-ohm impedance allows for parallel operation of eight SAT42G2 units at 2 ohms. For deep, powerful bass, the subwoofers from the LD installation series are the perfect complement. The cabinet, finished with a durable textured paint, is made of 12mm thick MDF and is available in black and white. M6 mounting holes and the included mounting bracket offer versatile installation options; a universal swivel mount is available as an accessory. The connection is made via spring clamps.
| Produktart | Installationslautsprecher |
| Typ | Wandlautsprecher |
| Größe Tieftöner | 4 " |
| Größe Tieftöner | 101 mm |
| Magnet Tieftöner | Ferrit |
| Marke Tieftöner | Custom Made |
| Größe HF Treiber | 1 " |
| Größe HF Treiber | 25 mm |
| Magnet HF Treiber | Ferrit |
| Marke HF Treiber | Custom Made |
| Abstrahlwinkel (H x V) | 60 x 60 ° |
| Belastbarkeit (RMS) | 60 W |
| Frequenzgang | 75 - 20000 |
| SPL (1 W/1 m) | 85 dB |
| Max. SPL | 103 dB |
| Impedanz | 16 Ohm |
| Schutzschaltungen | HF Treiber |
| Lautsprechereingänge | 1 |
| Lautsprechereingangsanschlüsse | Klemmanschluss |
| Lautsprecher pro Verstärkerkanal (DSP44/45K) | 8 |
| Gehäusematerial | 12 mm MDF |
| Gehäuseoberfläche | Strukturlack |
| Gehäusefarbe | weiß |
| Gehäusebauart | geschlossen |
| Breite | 140 mm |
| Höhe | 230 mm |
| Tiefe | 125 mm |
| Gewicht | 5 kg |
