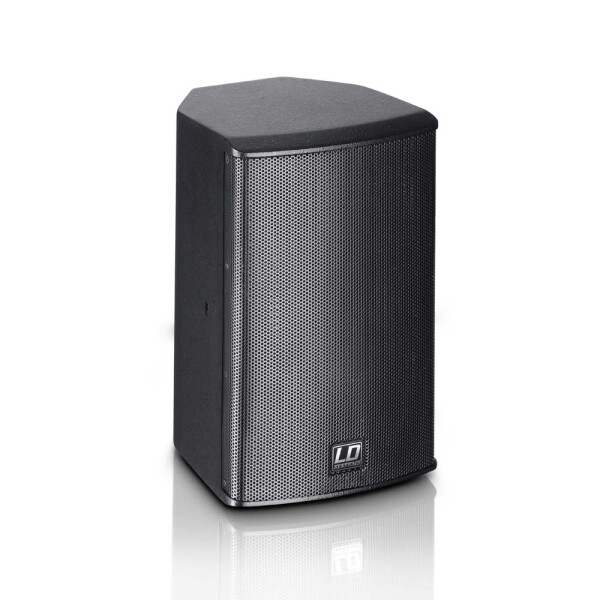

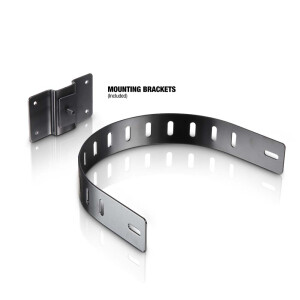

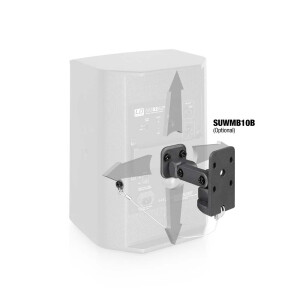

The LD Systems SAT62AG2 is the active version of the SAT62G2. This compact 2-way loudspeaker is suitable not only for installation but also as a monitor in a home studio and for other sound reinforcement applications. The bass-reflex design features a 6.5" custom woofer and a 1" silk dome tweeter with waveguide, driven by a Class AB amplifier with 50 W RMS power and overcurrent protection. An XLR/TRS combo jack serves as the input, while a separate XLR jack allows for signal pass-through. The sound reproduction is balanced and dynamic across the entire frequency range of 55 Hz to 20 kHz and achieves a maximum sound pressure level of 108 dB. The SAT62AG2 is equipped with a switchable power-saving mode that automatically switches to standby if no signal is present for 3 minutes. The 12mm thick MDF housing with durable textured paint is available in black and white and features M6 rigging points. A mounting bracket is included for additional mounting options, and a universal swivel mount is available as an accessory.
| Produktart | Installationslautsprecher |
| Typ | Wandlautsprecher |
| Größe Tieftöner | 6,5 " |
| Größe Tieftöner | 165 mm |
| Magnet Tieftöner | Ferrit |
| Marke Tieftöner | Custom Made |
| Größe HF Treiber | 1 " |
| Größe HF Treiber | 25 mm |
| Magnet HF Treiber | Ferrit |
| Marke HF Treiber | Custom Made |
| Verstärker (A) | Class A/B |
| Abstrahlwinkel (H x V) | 60 x 60 ° |
| Leistung (RMS) | 50 W |
| Frequenzgang | 55 - 20000 |
| Max. SPL | 108 dB |
| Schutzschaltungen | HF Treiber |
| Schutzschaltungen | Überstrom |
| Bedienelemente | Lautstärkeregler |
| Bedienelemente | Netzschalter (On/Off) |
| Bedienelemente | schaltbarer Auto-Power Modus |
| Anzeigeelemente | Power |
| Line-Eingangsanschlüsse | 6,3 mm Klinke |
| Line-Eingangsanschlüsse | XLR |
| Line-Ausgangsanschlüsse | XLR |
| Stromversorgung | Transformator |
| Betriebsspannung | 220 V AC - 240 V AC, 50 - 60 Hz |
| Gehäusematerial | 12 mm MDF |
| Gehäuseoberfläche | Strukturlack |
| Gehäusefarbe | schwarz |
| Gehäusebauart | Bassreflex |
| Breite | 200 mm |
| Höhe | 320 mm |
| Tiefe | 200 mm |
| Gewicht | 5,25 kg |
| Features | Wandhalterung |
