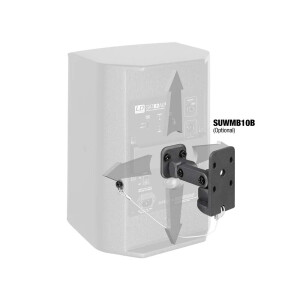

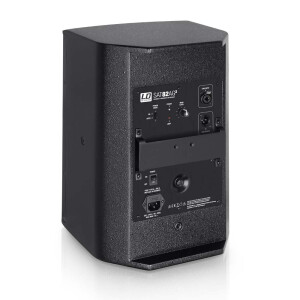

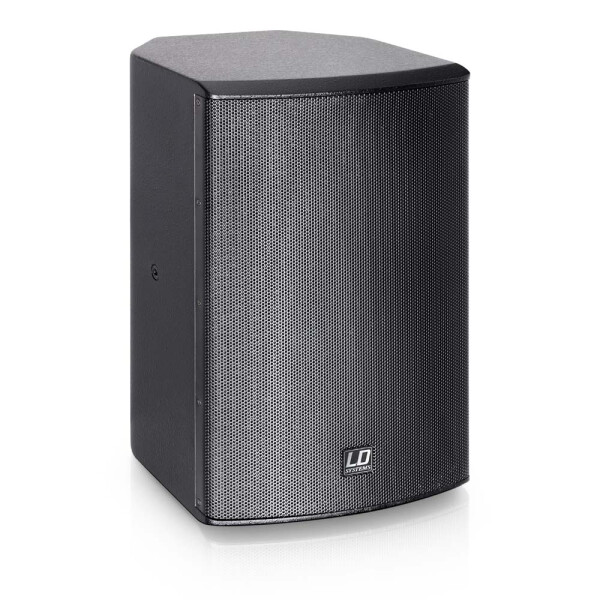

The LD Systems SAT82AG² is an active installation loudspeaker that also excels with PCs or laptops and as a home studio monitor. The compact 2-way bass-reflex design features an 8" custom woofer and a 1" tweeter, powered by an 80-watt Class AB amplifier. The input is a combo jack, and an XLR output is provided for signal routing. With a frequency response of 50 Hz - 20 kHz and a maximum SPL of 114 dB, the SAT82AG² produces a balanced sound with high dynamics. The loudspeaker has protection circuits for the tweeter and against overcurrent, as well as a selectable power-saving mode that switches to standby after 3 minutes of inactivity. The SAT82AG²'s enclosure is made of 12mm thick MDF, equipped with M6 rigging points, and available in black or white textured paint. A versatile mounting bracket is included; a universal swivel mount is available as an accessory.
| Produktart | Installationslautsprecher |
| Typ | Wandlautsprecher |
| Größe Tieftöner | 8 " |
| Größe Tieftöner | 203,2 mm |
| Magnet Tieftöner | Ferrit |
| Marke Tieftöner | Custom Made |
| Größe HF Treiber | 1 " |
| Größe HF Treiber | 25 mm |
| Magnet HF Treiber | Ferrit |
| Marke HF Treiber | Custom Made |
| Verstärker (A) | Class A/B |
| Abstrahlwinkel (H x V) | 60° x 60 ° |
| Leistung (RMS) | 80 W |
| Frequenzgang | 50 - 20000 |
| Max. SPL | 114 dB |
| Schutzschaltungen | HF Treiber |
| Schutzschaltungen | Überstrom |
| Bedienelemente | Lautstärke |
| Bedienelemente | Netzschalter (On/Off) |
| Anzeigeelemente | Power |
| Anzeigeelemente | Überlastung |
| Line-Eingangsanschlüsse | 6,3 mm Klinke |
| Line-Eingangsanschlüsse | XLR |
| Line-Ausgangsanschlüsse | XLR |
| Stromversorgung | Transformator |
| Betriebsspannung | 220 V AC - 240 V AC, 50 - 60 Hz |
| Gehäusematerial | 12 mm MDF |
| Gehäuseoberfläche | Strukturlack |
| Gehäusefarbe | schwarz |
| Gehäusebauart | Bassreflex |
| Breite | 274 mm |
| Höhe | 410 mm |
| Tiefe | 243 mm |
| Gewicht | 8,5 kg |

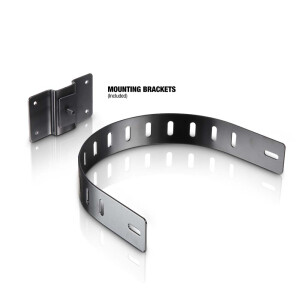

| Zubehör (im Lieferumfang) | Wandhalterung |
