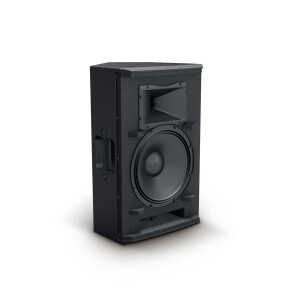

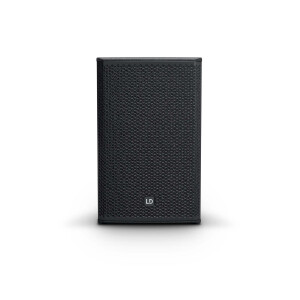

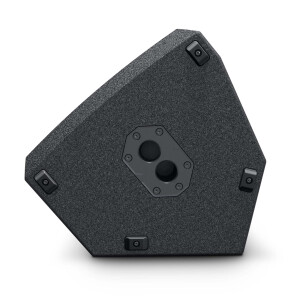

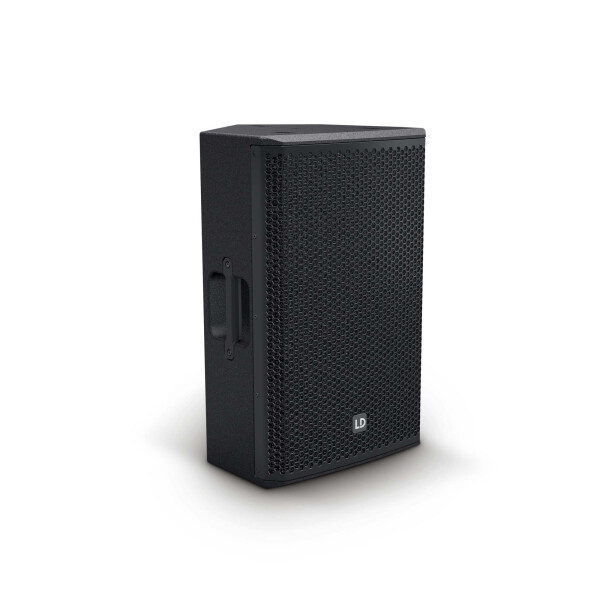

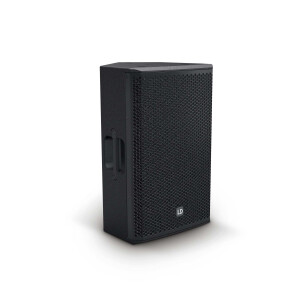

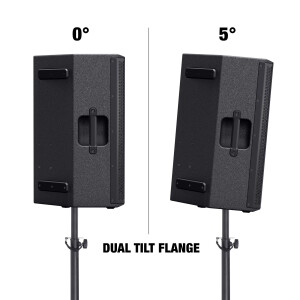

This highly professional 2-way loudspeaker is designed for absolute, long-lasting reliability. With its multifunctional bass-reflex enclosure, it is suitable as a full-range speaker, satellite, and floor monitor in mobile and installed PA systems. The STINGER® 12 G3 boasts a high power handling capacity of 400 watts continuous power and achieves a maximum sound pressure level of 125 dB. Its specially developed 12” woofer and BMS tweeter deliver deep bass response and crisp, natural highs. The tweeter's waveguide was developed using the Boundary Element Method (BEM), a numerical simulation of sound radiation and propagation. It reduces reflections from floors and ceilings, prevents side peaks, and thus achieves controlled, homogeneous dispersion. The STINGER® 12 G3 is designed as a true workhorse. The robust birch plywood enclosure, with its extremely durable polyurea coating, offers exceptional stability and longevity. Features include a steel front grille, dual-tilt stand mount, rigging points, and ergonomic handles. The STINGER® 12 G3 is an attractively priced solution for professional sound reinforcement applications, and a wide range of accessories supports its use on stage and in permanent installations.
| Produktart | PA Lautsprecher |
| Typ | Passive |
| Größe Tieftöner | 12 " |
| Größe Tieftöner | 304,8 mm |
| Magnet Tieftöner | Ferrit |
| Marke Tieftöner | Custom Made |
| Schwingspule Tieftöner | 2,5 " |
| Schwingspule Tieftöner (mm) | 63,5 mm |
| Horn | BEM optimiertes CD Horn |
| Größe HF Treiber | 1 " |
| Größe HF Treiber | 25,4 mm |
| Magnet HF Treiber | Ferrit |
| Marke HF Treiber | BMS |
| Schwingspule HF Treiber | 1 " |
| Schwingspule HF Treiber | 25,4 mm |
| Abstrahlwinkel (H x V) | 90 x 50 ° |
| Belastbarkeit (RMS) | 400 W |
| Belastbarkeit (Peak) | 800 W |
| Frequenzgang | 58 - 20000 |
| SPL (1 W/1 m) | 99 dB |
| Max. SPL | 125 dB |
| Impedanz | 8 Ohm |
| Schutzschaltungen | HF Treiber |
| Lautsprechereingänge | 1 |

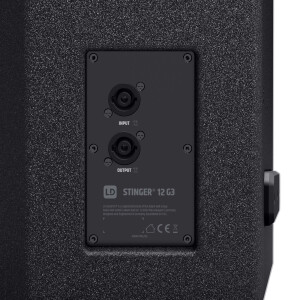

| Lautsprechereingangsanschlüsse | Speakon kompatibel |
| Lautsprecherausgänge | 1 |
| Lautsprecherausgangsanschlüsse | Speakon kompatibel |
| Lautsprecher pro Verstärkerkanal (DSP44/45K) | 3 |
| Gehäusematerial | 15 mm Sperrholz |
| Gehäuseoberfläche | Polyurea |
| Gehäusebauart | Bassreflex |

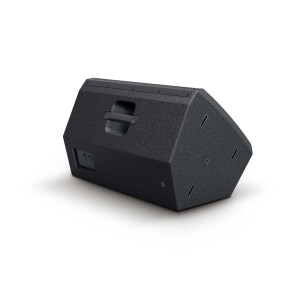

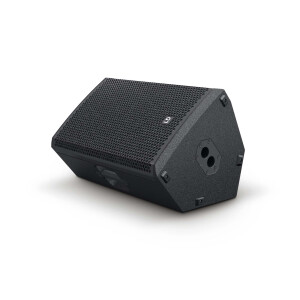

| Monitorwinkel | 54 ° |
| Breite | 390 mm |
| Höhe | 627 mm |
| Tiefe | 377 mm |
| Gewicht | 19,4 kg |
