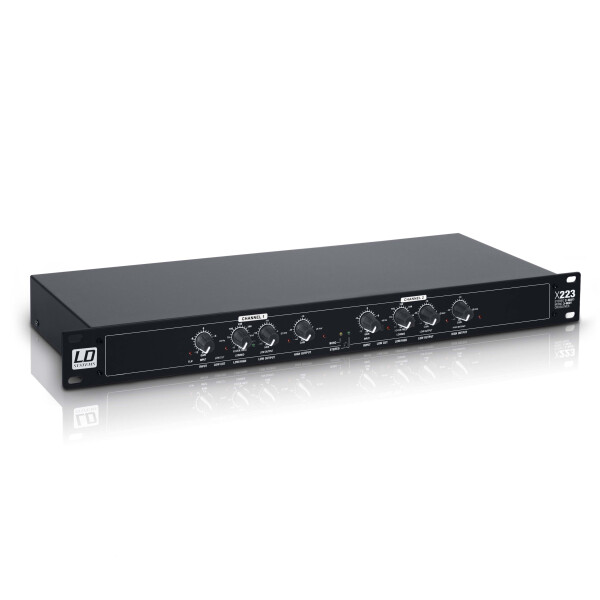

The LD Systems X223 is a standard rack-mountable (19"/1U) crossover that allows signal distribution to 2-way (stereo) or 3-way (mono) configurations. It features a robust overall construction, high quality, stable controls, and an integrated power supply, which is by no means a given in this price range.
Additional features include a mono subwoofer output, separately adjustable crossover frequencies for each channel, gain controls for low/high frequency and input gain, a phase reverse switch, switchable 40 Hz high-pass filters, and balanced XLR inputs and outputs. With the LD Systems X223, you have a crossover at your disposal that meets all professional requirements and is characterized by high quality and excellent sound.
| Produktart | Signalprozessoren |
| Ausführung | Stereo 2-Wege/Mono 3-Wege |
| Frequenzgang | 20 - 20.000 |
| Dynamik | 106 dB |
| Geräuschspannungsabstand | > 93 dB |
| Klirrfaktor (THD) | < 0,004 % |
| Kanalübersprechen | < - 80 (20 - 20.000 Hz) dB |
| Max. Eingangspegel | + 21 (symmetrisch oder unsymmetrisch) dBu |
| Max. Ausgangspegel | + 21 (symmetrisch oder unsymmetrisch) dBu |
| Eingangsimpedanz (kOhm) | 50.000 kOhm |
| Ausgangsimpedanz | 200 Ohm |
| Bedienelemente | 2 x High-Gain |
| Bedienelemente | 2 x Hochpass (40 Hz) |
| Bedienelemente | 2 x Input-Gain |
| Bedienelemente | 2 x Low-Gain |
| Bedienelemente | 2 x Switch Freq. x1/x10 |
| Bedienelemente | 2 x X-Over Freq. Low/High |
| Bedienelemente | 2 x X-Over Low/Mid |
| Bedienelemente | 4 x Inv.-Schalter |
| Bedienelemente | LF Sum |
| Bedienelemente | Mono/Stereo-Modus |
| Anzeigeelemente | 2 x Clip |
| Anzeigeelemente | 2 x Hochpass |
| Anzeigeelemente | 2 x X-Over x 10 |
| Anzeigeelemente | 4 x Inv. |
| Anzeigeelemente | Mono |
| Anzeigeelemente | Stereo |
| Line-Eingänge | 2 |
| Line-Eingangsanschlüsse | XLR |
| Line-Ausgänge | 4 |
| Line-Ausgangsanschlüsse | XLR |
| Netzanschluss | IEC-Netzbuchse |
| Betriebsspannung | 220 V AC - 240 V AC |
| Breite | 482 mm |
| Höhe | 44,5 mm |
| Tiefe | 153 mm |
| Gewicht | 2,6 kg |
