PA power amplifier 4 x 810 W 4 ohms

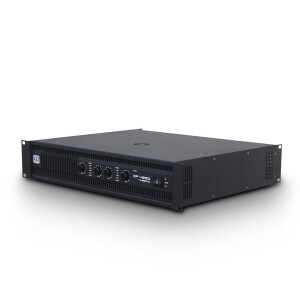

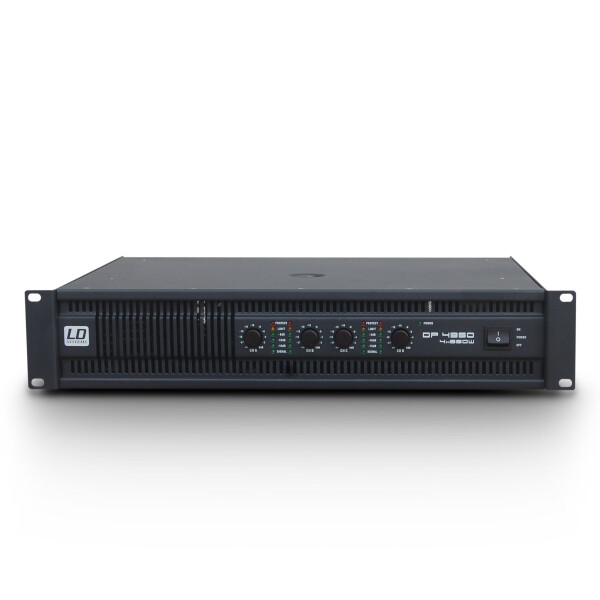

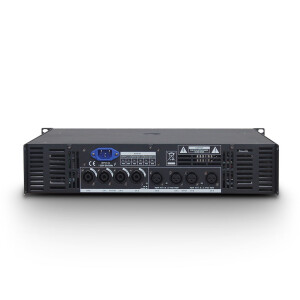

LD Systems DEEP2 4950

Name: LD Systems DEEP2 4950
Brand: LD Systems
SKU: 200130367
Price: 608.50 EUR
Availability: InStock

Item No.: 200130367

608,50 €

pieces

incl. 19% VAT (Paket)

In stock

Delivery time: 3 - 5 Workdays (DE - int. shipments may differ)

Payment Benefit:
Save 3% via bank transfer / advanced payment
Your price at checkout: 590,25 €

Description
Technische Daten

Product Information

Category H-L:

LD Systems Power Amplifiers
Series (power amplifiers):

DEEP2 Series
2 Ohms Stable:

no
Operating Mode:

Class H
Channels:

4

Product Description

The new DEEP2 power amplifier series comprises four Class-H power amplifiers with toroidal transformers, ranging in power from 2 x 400W to 2 x 810W at 4 ohms.

During development, the highest priority was placed on the reliability and longevity of the amplifiers under continuous operation. Only high-quality, selected components are used.

In addition to a clip limiter, the DEEP2 series features all common protection circuits. The amplifiers are equipped with all standard inputs and outputs on the rear panel.

The amplifiers impress with their dynamic and clear sound and are equally well-suited for sub-bass applications as well as for use as driver amplifiers in multi-functional speakers.

All models, constructed from robust sheet steel, feature a clear and compact design, all while maintaining a very moderate weight.

Whether used as a band amplifier or a reliable rental amplifier, the DEEP2 series always offers the right tool at an excellent price-performance ratio.

Produktart	Endstufen
Typ	PA Endstufen
Ausgangsleistung (1 kHz @ 4 Ohm)	4 x 810 W
Ausgangsleistung (1 kHz @ 8 Ohm)	4 x 490 W
Ausgangsleistung (1 kHz @ 8 Ohm, Bridge-Modus)	2 x 1600 W
Schaltungskonzept	Class H
Frequenzgang	20 - 20000
Klirrfaktor (THD)	< 0,1 %
Geräuschspannungsabstand	105 dB
Dämpfungsfaktor (20Hz-500Hz @8ohm)	>400
Übersprechen	>70 dB
Spannungsverstärkung (Gain)	38 dB
Eingangsempfindlichkeit	0,775 V
Schutzschaltungen	Kurzschluss
Schutzschaltungen	Schutz vor Gleichstrom
Schutzschaltungen	Überhitzung
Bedienelemente	4 x Laustärke
Bedienelemente	Ground-Lift
Bedienelemente	Netzschalter (On/Off)
Bedienelemente	Schalter für Bridge-/Stereomodus
Anzeigeelemente	Limit
Anzeigeelemente	Power
Anzeigeelemente	Protect (Schutzschaltung aktiv)
Anzeigeelemente	Signal
Lautsprecherausgänge	4
Lautsprecherausgangsanschlüsse	Speakon kompatibel
Kühlung	Hocheffizienter, automatischer Lüfter mit zwei Geschwindigkeiten
Stromversorgung	Transformator
Betriebsspannung	230 V AC, 50 - 60 Hz
Gewicht	19,6 kg
