Passive 2 x 8” 2-way bass reflex PA speaker

Passive 2-way 2 x 8" bass reflex PA speaker
400 watts RMS power handling
125 dB maximum sound pressure level
2 x 8" custom woofers and BMS pressure drivers
Homogeneous dispersion pattern thanks to BEM-optimized high-frequency waveguide
Birch plywood enclosure with ultra-robust polyurea coating

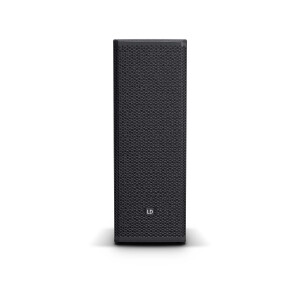

Robust front grille for optimal speaker protection

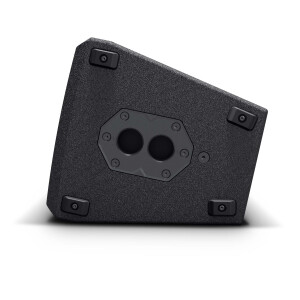

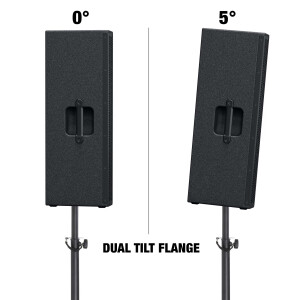

36 mm dual-tilt stand mount with 0° and 5° tilt angles
Extensive and clever accessories for installation and transport

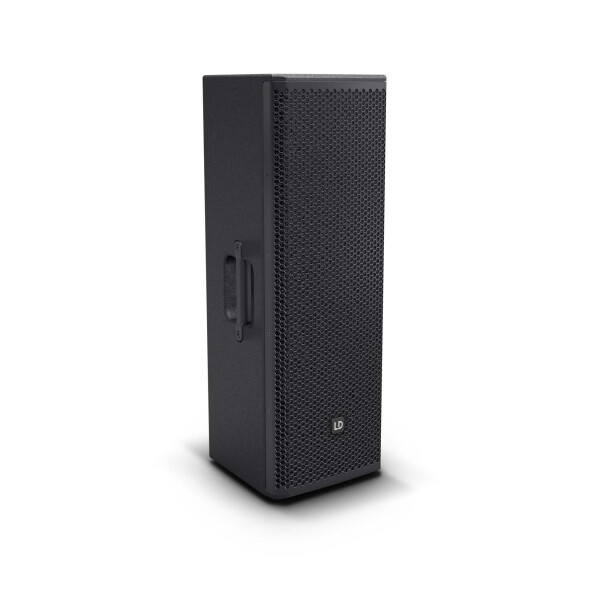

LD Systems STINGER 28 G3

Name: LD Systems STINGER 28 G3
Brand: LD Systems
SKU: 200129614
Price: 446.00 EUR
Availability: InStock

Item No.: 200129614

446,00 €

pieces

incl. 19% VAT (Paket)

In stock

Delivery time: 3 - 5 Workdays (DE - int. shipments may differ)

Payment Benefit:
Save 3% via bank transfer / advanced payment
Your price at checkout: 432,62 €

Description
Technische Daten

Product Information

Power Rms:

400W
Speaker Equipment:

2x 8 inches
Housing Material:

plywood
Ways:

2-way
Active/Passive:

passive

Product Description

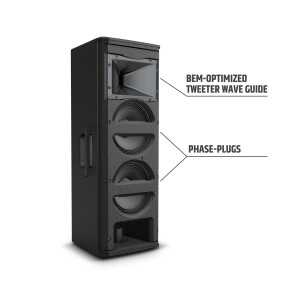

This highly professional 2-way loudspeaker is designed for absolute, long-lasting reliability. With its multifunctional bass-reflex enclosure, it is suitable as a full-range speaker, satellite, and monitor in mobile and installed PA systems. The STINGER® 28 G3 boasts a high power handling capacity of 400 watts continuous power and achieves a maximum sound pressure level of 125 dB. Its two specially developed 8” woofers and the BMS tweeter deliver powerful bass and crisp, natural highs. The tweeter's waveguide was developed using the Boundary Element Method (BEM), a numerical simulation of sound radiation and propagation. It reduces reflections from floors and ceilings, prevents secondary peaks, and thus achieves controlled, homogeneous dispersion. Phase plugs positioned directly in front of the two 8” woofers increase efficiency in the midrange and reduce distortion above the crossover frequency. The STINGER® 28 G3 is designed as a true workhorse. The robust birch plywood enclosure, with its extremely durable polyurea coating, offers exceptional stability and longevity. Features include a steel front grille, dual-tilt stand mount, rigging points, and ergonomic handles. The STINGER® 28 G3 is an attractively priced solution for professional sound reinforcement; extensive accessories support its use on stage and in permanent installations.

LD Systems STINGER 28 G3 PC

57,10 €

incl. 19% VAT (Paket)

Available

Payment Benefit:
Save 3% via bank transfer / advanced payment
Your price at checkout: 432,62 €

LD Systems STINGER 28 G3 WMB

45,30 €

incl. 19% VAT (Paket)

Available

Payment Benefit:
Save 3% via bank transfer / advanced payment
Your price at checkout: 432,62 €

Produktart	PA Lautsprecher
Typ	Passive
Größe Tieftöner	2 x 8 "
Größe Tieftöner	2 x 203,2 mm
Magnet Tieftöner	Ferrit
Marke Tieftöner	Custom Made
Schwingspule Tieftöner	2 "
Schwingspule Tieftöner (mm)	50,8 mm
Horn	BEM optimiertes CD Horn
Größe HF Treiber	1 "
Größe HF Treiber	25,4 mm
Magnet HF Treiber	Ferrit
Marke HF Treiber	BMS
Schwingspule HF Treiber	1 "
Schwingspule HF Treiber	25,4 mm
Abstrahlwinkel (H x V)	90 x 50 °
Belastbarkeit (RMS)	400 W
Belastbarkeit (Peak)	800 W
Frequenzgang	58 - 20000
SPL (1 W/1 m)	99 dB
Max. SPL	125 dB
Impedanz	8 Ohm
Schutzschaltungen	HF Treiber

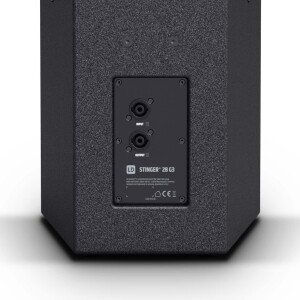

Lautsprechereingänge	1
Lautsprechereingangsanschlüsse	Speakon kompatibel
Lautsprecherausgänge	1
Lautsprecherausgangsanschlüsse	Speakon kompatibel
Lautsprecher pro Verstärkerkanal (DSP44/45K)	3
Gehäusematerial	12 mm Sperrholz
Gehäuseoberfläche	Polyurea
Gehäusebauart	Bassreflex
Breite	270 mm
Höhe	756 mm
Tiefe	290 mm
Gewicht	19,3 kg
