Number of Woofers:2
-
Woofer in Inches:8
-
Tweeter in Inches:1
-
Performance According To Manufacturer:1000W
-
Power Rms:500W
-
Vertical Beam Angle (Degrees):50
-
Beam Angle Horizontal (Degrees):90
-
Speaker Equipment:2x 8 inches
-
Operating Mode:Class D
-
Housing Material:Wood
-
Dsp:Yes
-
Ways:2-way
-
Active/Passive:active

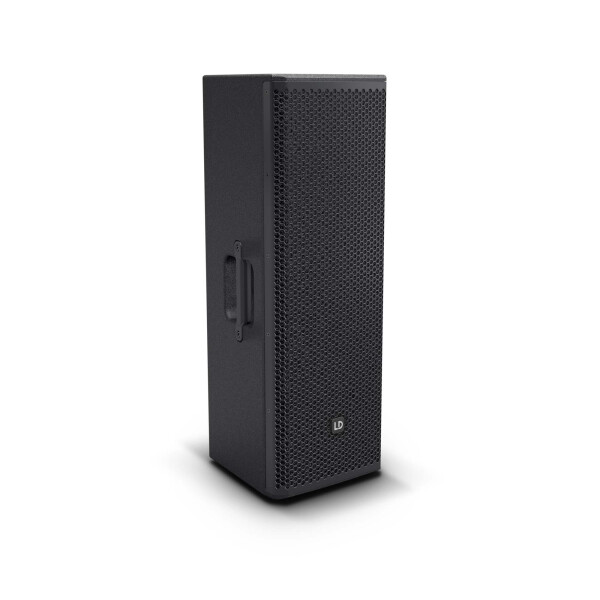

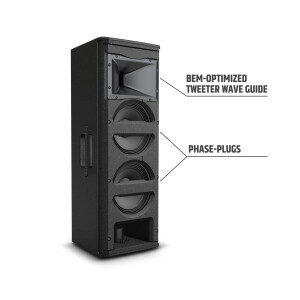

This highly professional 2-way active system is built for absolute, lasting reliability. With its robust bass-reflex enclosure and precisely tuned, user-friendly presets, the speaker is suitable as a full-range speaker, satellite, and monitor. The STINGER® 28 A G3 is driven by a highly efficient Class-D amplifier with a powerful 500 watts of continuous power. Its two specially designed 8” woofers and a BMS tweeter deliver powerful bass and crisp, natural highs. The tweeter's waveguide was developed using the Boundary Element Method (BEM), a numerical simulation of sound radiation and propagation. It reduces reflections from floors and ceilings, prevents secondary peaks, and thus achieves controlled, homogeneous dispersion. Phase plugs positioned directly in front of the two 8” woofers increase efficiency in the midrange and reduce distortion above the crossover frequency. Thanks to LD Systems’ proprietary DynX® DSP technology, the STINGER® 28 A G3 delivers perfect performance with maximum clarity and assertiveness under all conditions. The signal processing of the crossover function and the multiband limiter achieves optimal time alignment and the highest level of distortion-free operation. Designed as a true workhorse, the speaker's cabinet is constructed from robust birch plywood. It offers exceptional stability and durability thanks to its extremely resistant polyurea coating. Features include a steel front grille, dual-tilt tripod mount, rigging points, and ergonomic handles. The STINGER® 28 A G3 is an attractively priced solution for professional sound reinforcement; a wide range of accessories supports its use on stage and in permanent installations.
| Produktart | PA Lautsprecher |
| Typ | Aktive |
| Größe Tieftöner | 2 x 8 " |
| Größe Tieftöner | 2 x 203,2 mm |
| Magnet Tieftöner | Ferrit |
| Marke Tieftöner | Custom Made |
| Schwingspule Tieftöner | 2 " |
| Schwingspule Tieftöner (mm) | 50,8 mm |
| Horn | BEM optimiertes CD Horn |
| Größe HF Treiber | 1 " |
| Größe HF Treiber | 25,4 mm |
| Magnet HF Treiber | Ferrit |
| Marke HF Treiber | BMS |
| Schwingspule HF Treiber | 1 " |
| Schwingspule HF Treiber | 25,4 mm |
| Verstärker | Class D |
| Abstrahlwinkel (H x V) | 90 x 50 ° |
| Leistung (RMS) | 500 W |
| Leistung (Peak) | 1000 W |
| Frequenzgang | 58 - 20000 |
| Max. SPL (Peak) | 131 dB |
| Schutzschaltungen | Multiband Limiter |
| Schutzschaltungen | Überhitzung |
| Schutzschaltungen | Überspannung |
| Schutzschaltungen | Überstrom |
| Eingangsempfindlichkeit | -5 dBu |

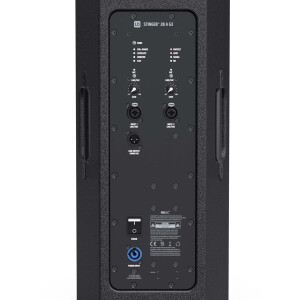

| Bedienelemente | 2 x Gain |
| Bedienelemente | 2 x Mic/Line |
| Bedienelemente | Mode |
| Anzeigeelemente | Limit |
| Anzeigeelemente | Mode |
| Anzeigeelemente | On |
| Anzeigeelemente | Protect (Schutzschaltung aktiv) |
| Anzeigeelemente | Signal |
| Line-Eingänge | 2 |
| Line-Eingangsanschlüsse | 6,3 mm Klinke |
| Line-Eingangsanschlüsse | XLR |
| Line-Ausgänge | 1 |
| Line-Ausgangsanschlüsse | XLR |
| Stromversorgung | 100 - 120V / 50 - 60Hz oder 200 - 240 V / 50 - 60Hz (automatische Umrechnung) |
| Betriebstemperatur | 0 - 40 °C |
| Relative Luftfeuchtigkeit | <80% (nicht kondensierend) |
| Gehäusematerial | 12 mm Sperrholz |
| Gehäuseoberfläche | Polyurea |
| Gehäusebauart | Bassreflex |
| Breite | 270 mm |
| Höhe | 756 mm |
| Tiefe | 290 mm |
| Gewicht | 20,5 kg |
