Number of Woofers:1
-
Woofer in Inches:15
-
Tweeter in Inches:1
-
Performance According To Manufacturer:1000W
-
Power Rms:500W
-
Vertical Beam Angle (Degrees):50
-
Beam Angle Horizontal (Degrees):90
-
Speaker Equipment:1x 15 inches
-
Operating Mode:Class D
-
Housing Material:Wood
-
Dsp:Yes
-
Ways:2-way
-
Active/Passive:active

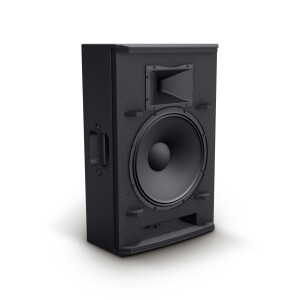

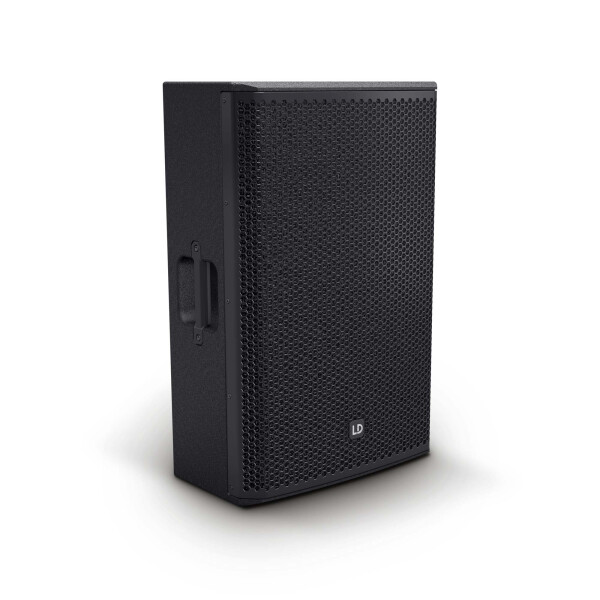

This highly professional 2-way active system is designed for absolute, lasting reliability. With its multifunctional bass-reflex enclosure and precisely tuned, user-friendly presets, the speaker is suitable as a full-range speaker, satellite, and floor monitor. The STINGER® 15 A G3 is driven by a highly efficient Class-D amplifier with a remarkable 500 watts of continuous power. The specially developed 15” woofer and a BMS tweeter achieve deep bass reproduction and crisp, natural highs. The tweeter's waveguide was developed using the Boundary Element Method (BEM), a numerical simulation of sound radiation and propagation. It reduces reflections from floors and ceilings, prevents secondary peaks, and thus achieves controlled, homogeneous dispersion. Thanks to LD Systems’ proprietary DynX® DSP technology, the STINGER® 15 A G3 delivers perfect performance with maximum clarity and assertiveness under all conditions. The signal processing of the crossover function and multiband limiter achieves optimal time alignment and the highest level of distortion-free operation. Designed as a true workhorse, the speaker's cabinet is constructed from robust birch plywood. With an extremely durable polyurea coating, it offers exceptional stability and longevity. Features include a steel front grille, dual-tilt stand mount, rigging points, and ergonomic handles. The STINGER® 15 A The G3 is an attractively priced solution for professional sound reinforcement; extensive accessories support its use on stage and in permanent installations.
| Produktart | PA Lautsprecher |
| Typ | aktiv |
| Größe Tieftöner | 15 " |
| Größe Tieftöner | 381 mm |
| Magnet Tieftöner | Ferrit |
| Marke Tieftöner | Custom Made |
| Schwingspule Tieftöner | 3 " |
| Schwingspule Tieftöner (mm) | 76,2 mm |
| Horn | BEM optimiertes CD Horn |
| Größe HF Treiber | 1 " |
| Größe HF Treiber | 25,4 mm |
| Magnet HF Treiber | Ferrit |
| Marke HF Treiber | BMS |
| Schwingspule HF Treiber | 1 " |
| Schwingspule HF Treiber | 25,4 mm |
| Verstärker | Class D |
| Abstrahlwinkel (H x V) | 90 x 50 ° |
| Leistung (RMS) | 500 W |
| Leistung (Peak) | 1000 W |
| Frequenzgang | 50 - 20000 |
| Max. SPL (Peak) | 133 dB |
| Schutzschaltungen | Multiband Limiter |
| Schutzschaltungen | Überhitzung |
| Schutzschaltungen | Überspannung |
| Schutzschaltungen | Überstrom |
| Eingangsempfindlichkeit | -5 dBu |

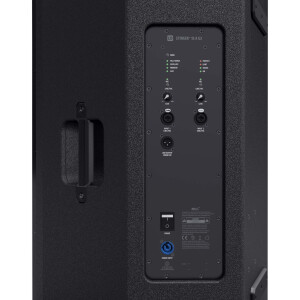

| Bedienelemente | 2 x Gain |
| Bedienelemente | 2 x Mic/Line |
| Bedienelemente | Mode |
| Anzeigeelemente | Limit |
| Anzeigeelemente | Mic |
| Anzeigeelemente | Mode |
| Anzeigeelemente | On |
| Anzeigeelemente | Protect (Schutzschaltung aktiv) |
| Anzeigeelemente | Signal |
| Line-Eingänge | 2 |
| Line-Eingangsanschlüsse | 6,3 mm Klinke |
| Line-Eingangsanschlüsse | XLR |
| Line-Ausgänge | 1 |
| Line-Ausgangsanschlüsse | XLR |
| Stromversorgung | 100 - 120V / 50 - 60Hz oder 200 - 240 V / 50 - 60Hz (automatische Umrechnung) |
| Stromversorgung | Schaltnetzteil |
| Betriebstemperatur | 0 - 40 °C |
| Relative Luftfeuchtigkeit | <80% (nicht kondensierend) |
| Gehäusematerial | 15 mm Sperrholz |
| Gehäuseoberfläche | Polyurea |
| Gehäusebauart | Bassreflex |

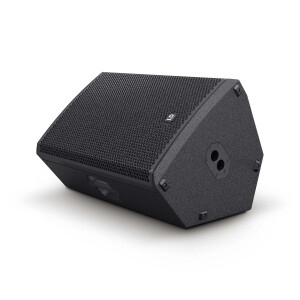

| Monitorwinkel | 54 ° |
| Breite | 480 mm |
| Höhe | 737 mm |
| Tiefe | 455 mm |
| Gewicht | 26,8 kg |
