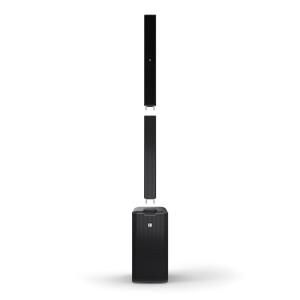

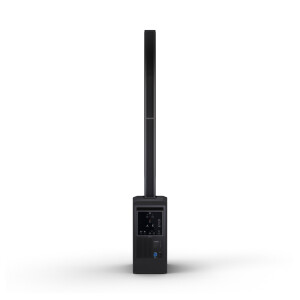

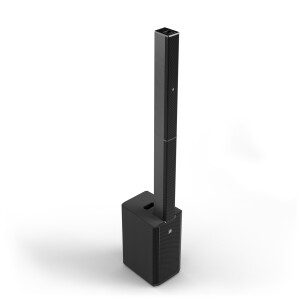

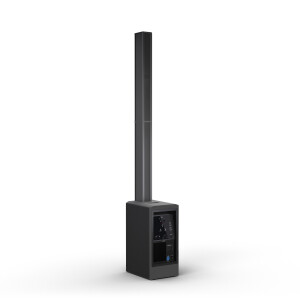

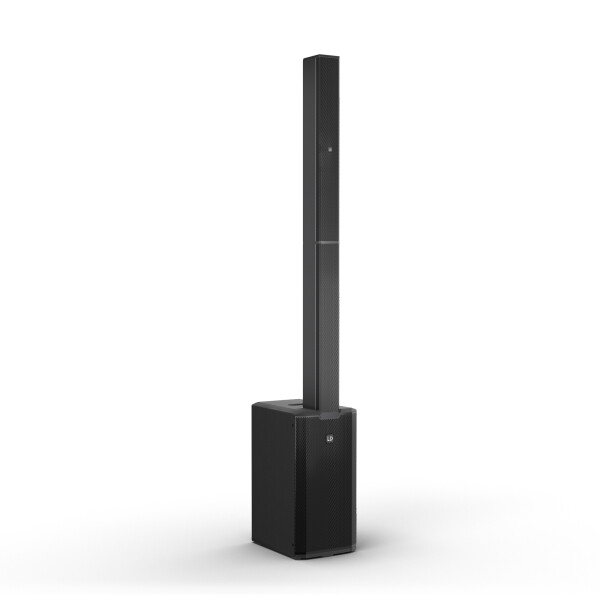

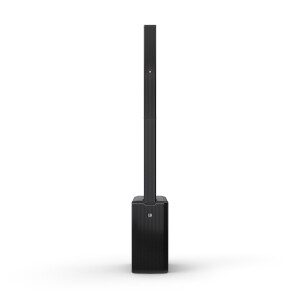

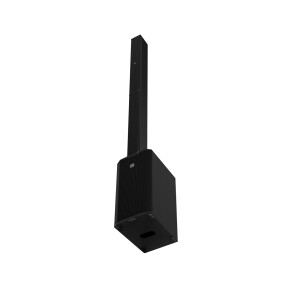

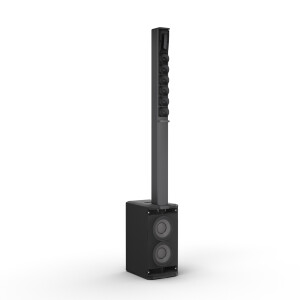

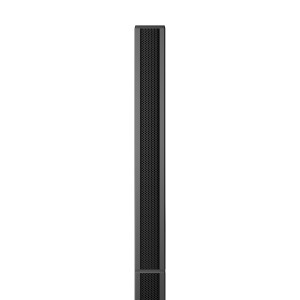

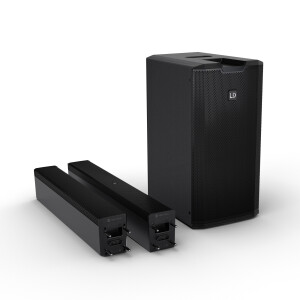

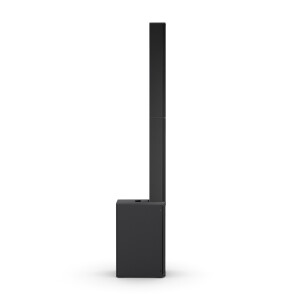

LD Systems MAUI 11 G3

Name: LD Systems MAUI 11 G3
Brand: LD Systems
SKU: 200130456
Price: 879.00 EUR
Availability: InStock

Item No.: 200130456

879,00 €

incl. 19% VAT (Paket)

pieces

In stock

Delivery time: 3 - 5 Workdays (DE - int. shipments may differ)

Payment Benefit:
Save 3% via bank transfer / advanced payment
Your price at checkout: 852,63 €

Description
Technische Daten

Product Information

Category H-L:

LD Systems MAUI series
Number of Woofers:

2
Performance According To Manufacturer:

1460W
Power Rms:

730W
Vertical Beam Angle (Degrees):

30
Beam Angle Horizontal (Degrees):

120
Operating Mode:

Class D
Housing Material:

Multiplex
Bluetooth:

Yes
Dsp:

Yes

Product Description

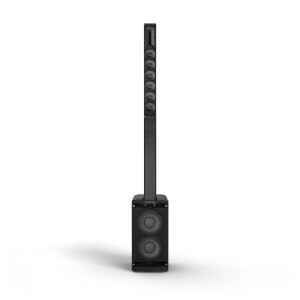

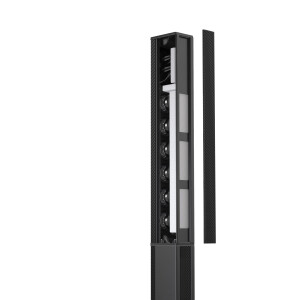

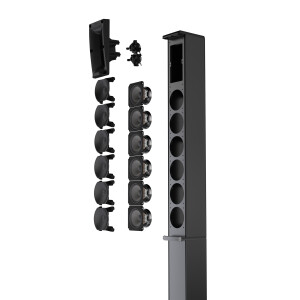

Compact, powerful, and uncomplicated – a column PA is and remains the ideal partner for DJs and small bands. The MAUI series from LD Systems embodies the all-in-one concept in its purest form and offers an unbeatable PA package combining sound, design, technology, and handling. Set it up, plug it in, and you're done! The MAUI 11 G3 delivers a big, powerful, and precise sound with 730 W RMS power (1,460 W peak) that impresses in all applications: as a main PA for concerts, as a sound system for mobile DJs, or as a sound reinforcement system at weddings, corporate events, and other occasions. With its elegant design, the MAUI 11 G3 has a particularly harmonious appearance. The two aluminum column elements are positioned at the front edge of the subwoofer in the MAUI G3 series, further enhancing the seamless visual impression. These columns house six 3.5" midrange drivers, which, in combination with the innovative phase plug design and the two 1" tweeters, ensure even sound distribution with consistent horizontal dispersion. Furthermore, the BEM-optimized waveguide in front of the tweeters carries the high frequencies all the way to the rear of the audience. The developers also worked on the crossover point, the transition between the midrange and tweeter drivers, to reduce harmonic distortion and cancellations, making the sound even more transparent and powerful. The result: exceptionally precise reproduction of vocals and instruments across the entire 120° x 30° dispersion area. The columns of the MAUI 11 G3 are designed as cardioid loudspeakers. This ensures controlled low-midrange frequencies at the front and attenuation of up to 18 dB at the rear, resulting in a clean stage sound field. With its two larger 8" drivers and four bass reflex ports, the audibly more powerful subwoofer reproduces bass down to 39 Hz clearly and powerfully. When using a second subwoofer, the bass range can be boosted by 6 dB and operated in cardioid configuration at the touch of a button (preset). Furthermore, the extremely durable polyurea coating of the subwoofer easily withstands even the toughest demands on the road. The MAUI 11 G3 is a true sound machine, but it also impresses with its practical features for the everyday use of DJs, musicians, and technicians. Thanks to Bluetooth 5.0, the column PA becomes a versatile sound system. Transport is as easy as ever, and during setup, the improved, invisible connectors between the elements offer increased stability – nothing can easily throw the MAUI off balance...

LD Systems MAUI 11 G3 CB

90,40 €

incl. 19% VAT (Paket)

Available

Payment Benefit:
Save 3% via bank transfer / advanced payment
Your price at checkout: 852,63 €

LD Systems MAUI 11 G3 SAT BAG

70,60 €

incl. 19% VAT (Paket)

Available

Payment Benefit:
Save 3% via bank transfer / advanced payment
Your price at checkout: 852,63 €

LD Systems MAUI 11 G3 SUB PC

49,70 €

incl. 19% VAT (Paket)

Available

Payment Benefit:
Save 3% via bank transfer / advanced payment
Your price at checkout: 852,63 €

Produktart	PA Komplettsysteme
Typ	Aktive
Farbe	Schwarz
Max. SPL (Peak)	125 dB
Frequenzgang (-10dB)	39 Hz - 20000 Hz
Abstrahlwinkel (H x V)	120° x 30 °
Höhe (gesamt)	2052 mm
Gewicht	30,7 kg
Merkmale	Bluetooth-Audio-Streaming
Merkmale	Cardioid Säule
Merkmale	DSP basierte Signalverarbeitung
Merkmale	Exzellentes Abstrahlverhalten
Merkmale	Mono-/Stereo-Betrieb

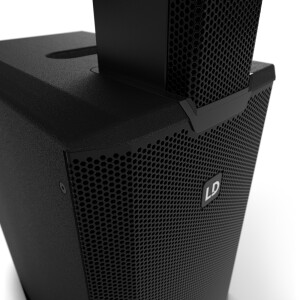

Subwoofer

Größe Tieftöner	2 x 8 "
Größe Tieftöner	2 x 203 mm
Magnet Tieftöner	Ferrit
Marke Tieftöner	Custom Made
Schwingspule Tieftöner	2 "
Schwingspule Tieftöner (mm)	50,8 mm
Gehäusebauart	Bassreflex
Gehäusematerial	15 mm Multiplex
Gehäuseoberfläche	Polyurea
Abmessungen Subwoofer (B x H x T)	305 x 607 x 403 mm
Gewicht Subwoofer	20,5 kg

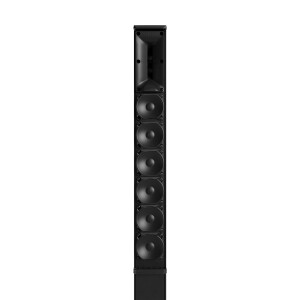

Mid/Hi System

Größe Mittentöner	6 x 3,5 "
Größe Mittentöner	6 x 89 mm
Magnet Mittentöner	Ferrit
Marke Mittentöner	Custom Made
Schwingspule Mittentöner	0,75 "
Schwingspule Mittentöner	19 mm
Größe Hochtöner	2 x 1 "
Größe Hochtöner	2 x 25,4 mm
Magnet Hochtöner	Neodym
Marke Hochtöner	Custom Made
Schwingspule Hochtöner	1 "
Schwingspule Hochtöner	25,4 mm
Waveguide	CD Waveguide
Lautsprechereingänge	1

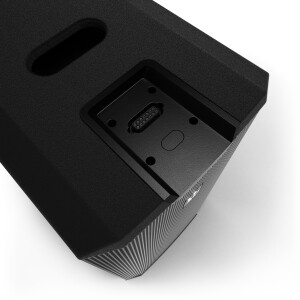

Lautsprechereingangsanschlüsse	Custom Made Multipin
Gehäusebauart Mid/Hi-System	Passiv Cardioid
Gehäusematerial Mid/Hi-System	Aluminium
Gehäuseoberfläche Mid/Hi-System	Pulverbeschichtet
Breite Mid/Hi-System	103 mm
Höhe Mid/Hi-System	1460 mm
Tiefe Mid/Hi-System	135 mm
Gewicht Mid/Hi-System	10,2 kg

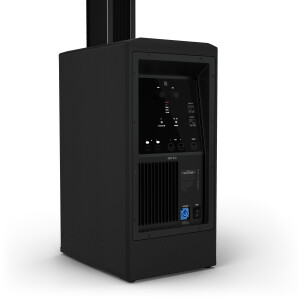

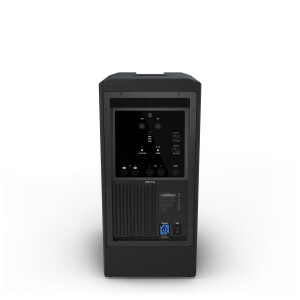

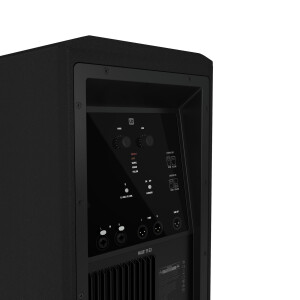

Verstärkermodul (im Subwoofer integriert)

Verstärker	Class D
Systemleistung (RMS)	730 W
Systemleistung (Peak)	1460 W
Schutzschaltungen	Kurzschluss
Schutzschaltungen	Multiband Limiter
Schutzschaltungen	Schutz vor Gleichstrom
Schutzschaltungen	Schutz vor Überhitzung
Kühlung	Konvektion
Bedienelemente	Bluetooth HOLD TO LINK-Taste
Bedienelemente	Cardioid On/Off
Bedienelemente	Main Level
Bedienelemente	Power On/Off
Bedienelemente	Sub Level
Anzeigeelemente	Bluetooth
Anzeigeelemente	Cardioid On/Off
Anzeigeelemente	Follower Mode
Anzeigeelemente	Limit
Anzeigeelemente	Power
Anzeigeelemente	Protect (Schutzschaltung aktiv)
Anzeigeelemente	Signal
Anzeigeelemente	Subwoofer Mode
Netzanschluss	PowerCon
Betriebsspannung	100 V AC - 120 V AC / 50 - 60 Hz
Betriebsspannung	220 V AC - 240 V AC, 50 - 60 Hz
Sicherung	T 3,15AL / 250 V
Leistungsaufnahme	300 W
Umgebungstemperatur	0 - 40 °C
Relative Luftfeuchtigkeit	<80% (nicht kondensierend)
Anzahl Line-Eingänge	2
Anschlüsse Line-Eingänge	Combo XLR / TRS
Anzahl Line-Ausgänge	1 x Sub OUT
Anzahl Line-Ausgänge	2 x THRU
Anschlüsse Line-Ausgänge	XLR male
Anzahl Lautsprecherausgänge	1
Anschlüsse Lautsprecherausgänge	Custom Made Multipin
Bluetooth-Standard	A2DP
Bluetooth-Audio-Decoder	AAC
Bluetooth-Audio-Decoder	SBC
