Kompaktes Cardioid Säulen PA System, Weiß

2060 W peak power and 127 dB max. SPL
12" subwoofer for powerful and deep bass reproduction

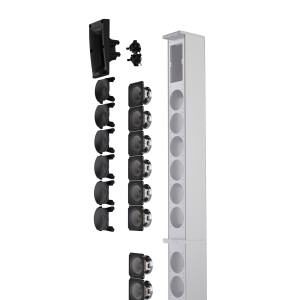

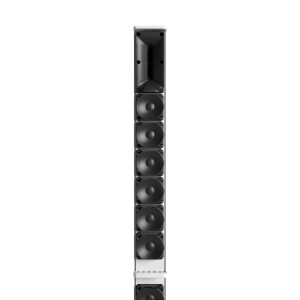

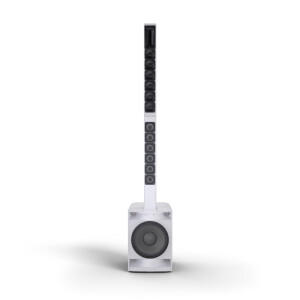

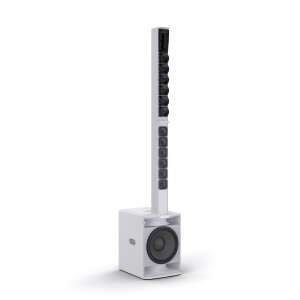

12 x 3.5" full-range speakers for balanced midrange
2 x 1" tweeters for precise and silky highs

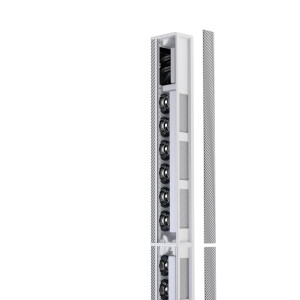

Cardioid column for controlled dispersion in the low and midrange frequencies
BEM-optimized HF waveguide and phase plugs for homogeneous dispersion characteristics
Optimized bass reflex design for improved bass response and reduced flow noise
Combination with a second MAUI® 28 G3 W subwoofer for extended low-end or cardioid subwoofer setup
New DynX® DSP (Gen. 2) for distortion-free playback even at maximum volume
Wireless streaming via Bluetooth 5.0
Automatic setup detection for easy operation

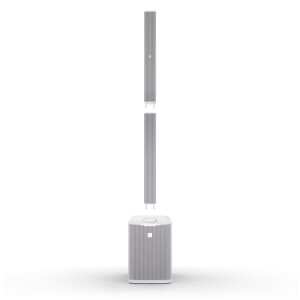

Easy and quick setup without stands

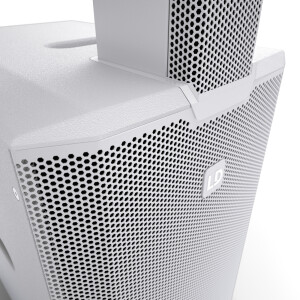

Robust birch plywood subwoofer enclosure with durable polyurea coating

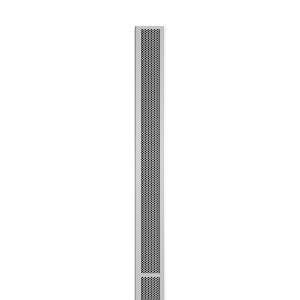

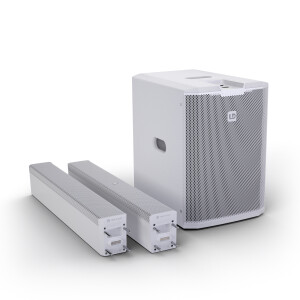

Lightweight powder-coated aluminum columns

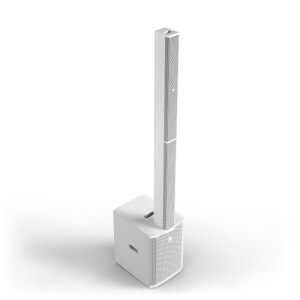

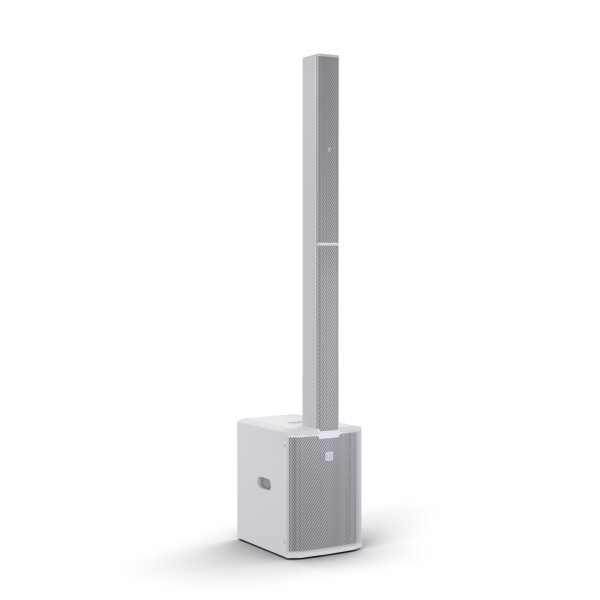

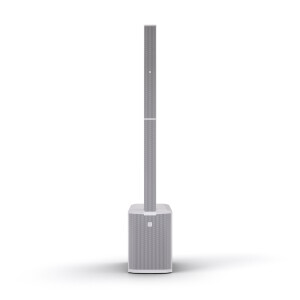

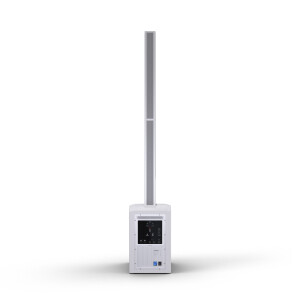

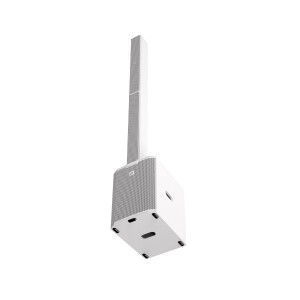

LD Systems MAUI 28 G3 W

Name: LD Systems MAUI 28 G3 W
Brand: LD Systems
SKU: 200130464
Price: 1300.00 EUR
Availability: InStock

Item No.: 200130464

1.300,00 €

pieces

incl. 19% VAT (Spedition)

In stock

Delivery time: 4 - 6 Workdays (DE - int. shipments may differ)

Payment Benefit:
Save 3% via bank transfer / advanced payment
Your price at checkout: 1.261,00 €

Description
Technische Daten

Product Information

Category H-L:

LD Systems MAUI 28| LD Systems MAUI series
Number of Woofers:

1
Performance According To Manufacturer:

2060W
Vertical Beam Angle (Degrees):

30
Beam Angle Horizontal (Degrees):

120
Operating Mode:

Class D
Housing Material:

Multiplex
Bluetooth:

Yes
Dsp:

Yes

Product Description

Compact, powerful, and uncomplicated – a column PA is and remains the ideal partner for DJs and small bands. The MAUI series from LD Systems embodies the all-in-one concept in its purest form and offers an unbeatable PA package combining sound, design, technology, and handling. Set it up, plug it in, and you're done! The MAUI 28 G3 W delivers a big, powerful, and precise sound with 1,030 W RMS power (2,060 W peak) that impresses in all applications: as a main PA for concerts, as a sound system for mobile DJs, or as a sound reinforcement system at weddings, corporate events, and other occasions. With its elegant design, the MAUI 28 G3 W has a particularly harmonious appearance. The two aluminum column elements are positioned at the front edge of the subwoofer in the MAUI G3 series, further enhancing the seamless visual impression. These columns house 12 x 3.5" midrange drivers, which, in combination with the innovative phase plug design and the 2 x 1" tweeters, ensure even sound distribution with constant horizontal dispersion. Furthermore, the BEM-optimized waveguide in front of the tweeters carries the high frequencies all the way to the rear of the audience. The developers also worked on the crossover point, the transition between the midrange and treble speakers, to reduce harmonic distortion and cancellations, making the sound even more transparent and powerful. The result: exceptionally precise reproduction of vocals and instruments across the entire 120° x 30° dispersion area. The columns of the MAUI 28 G3 W are designed as cardioid loudspeakers. This ensures controlled low-midrange frequencies at the front and attenuation of up to 18 dB at the rear, resulting in a clean stage sound field. With its larger 12" driver and four bass reflex ports, the audibly more powerful subwoofer reproduces bass down to 37 Hz clearly and powerfully. When using a second subwoofer, the bass range can be boosted by 6 dB and operated in cardioid configuration at the touch of a button (preset). Furthermore, the extremely durable polyurea coating of the subwoofer easily withstands even the toughest demands on the road. The MAUI 28 G3 W is a true sound machine, but it also impresses with its practical features for the everyday use of DJs, musicians, and technicians. Thanks to Bluetooth 5.0, the column PA becomes a versatile sound system. Transport is as easy as ever, and during setup, the improved, invisible connectors between the elements offer increased stability – nothing can easily throw the MAUI off balance...

Product Video: LD Systems MAUI 28 G3 W

Discover the product LD Systems MAUI 28 G3 W in detail:

LD Systems MAUI 28 G3 CB

100,50 €

incl. 19% VAT (Paket)

Available

Payment Benefit:
Save 3% via bank transfer / advanced payment
Your price at checkout: 1.261,00 €

LD Systems MAUI 28 G3 SAT BAG

87,50 €

incl. 19% VAT (Paket)

Available

Payment Benefit:
Save 3% via bank transfer / advanced payment
Your price at checkout: 1.261,00 €

LD Systems MAUI 28 G3 SUB PC

52,70 €

incl. 19% VAT (Paket)

Available

Payment Benefit:
Save 3% via bank transfer / advanced payment
Your price at checkout: 1.261,00 €

Produktart	PA Komplettsysteme
Typ	Aktive
Farbe	Weiß (RAL 9003)
Max. SPL (Peak)	127 dB
Frequenzgang (-10dB)	37 Hz - 20000 Hz
Abstrahlwinkel (H x V)	120° x 30 °
Höhe (gesamt)	2052 mm
Gewicht	35,4 kg
Merkmale	Bluetooth-Audio-Streaming
Merkmale	Cardioid Säule
Merkmale	DSP basierte Signalverarbeitung
Merkmale	Exzellentes Abstrahlverhalten
Merkmale	Mono-/Stereo-Betrieb

Subwoofer

Größe Tieftöner	12 "
Größe Tieftöner	305 mm
Magnet Tieftöner	Ferrit
Marke Tieftöner	Custom Made
Schwingspule Tieftöner	3 "
Schwingspule Tieftöner (mm)	76,2 mm
Gehäusebauart	Bassreflex
Gehäusematerial	15 mm Multiplex
Gehäuseoberfläche	Polyurea
Abmessungen Subwoofer (B x H x T)	370 x 527 x 472 mm
Gewicht Subwoofer	22,8 kg

Mid/Hi System

Größe Mittentöner	12 x 3,5 "
Größe Mittentöner	12 x 89 mm
Magnet Mittentöner	Ferrit
Marke Mittentöner	Custom Made
Schwingspule Mittentöner	0,75 "
Schwingspule Mittentöner	19 mm
Größe Hochtöner	2 x 1 "
Größe Hochtöner	2 x 25,4 mm
Magnet Hochtöner	Neodym
Marke Hochtöner	Custom Made
Schwingspule Hochtöner	1 "
Schwingspule Hochtöner	25,4 mm
Waveguide	CD Waveguide
Lautsprechereingänge	1

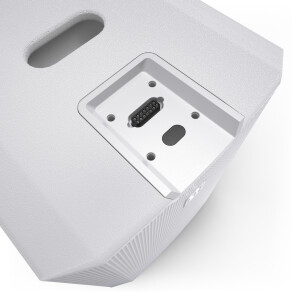

Lautsprechereingangsanschlüsse	Custom Made Multipin
Gehäusebauart Mid/Hi-System	Passiv Cardioid
Gehäusematerial Mid/Hi-System	Aluminium
Gehäuseoberfläche Mid/Hi-System	Pulverbeschichtet
Breite Mid/Hi-System	103 mm
Höhe Mid/Hi-System	1540 mm
Tiefe Mid/Hi-System	135 mm
Gewicht Mid/Hi-System	12,6 kg

Verstärkermodul (im Subwoofer integriert)

Verstärker	Class D
Systemleistung (RMS)	1030 W
Systemleistung (Peak)	2060 W
Schutzschaltungen	Kurzschluss
Schutzschaltungen	Multiband Limiter
Schutzschaltungen	Schutz vor Gleichstrom
Schutzschaltungen	Schutz vor Überhitzung
Kühlung	Konvektion

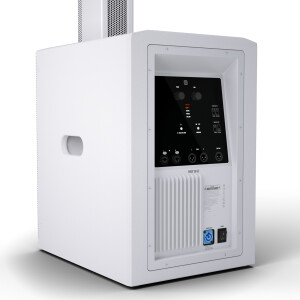

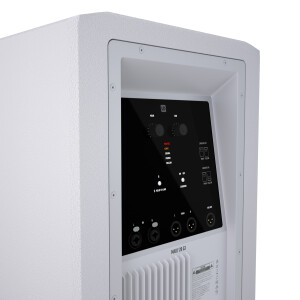

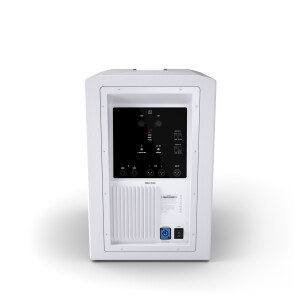

Bedienelemente	Bluetooth HOLD TO LINK-Taste
Bedienelemente	Cardioid On/Off
Bedienelemente	Main Level
Bedienelemente	Power On/Off
Bedienelemente	Sub Level
Anzeigeelemente	Bluetooth
Anzeigeelemente	Cardioid On/Off
Anzeigeelemente	Follower Mode
Anzeigeelemente	Limit
Anzeigeelemente	Power
Anzeigeelemente	Protect (Schutzschaltung aktiv)
Anzeigeelemente	Signal
Anzeigeelemente	Subwoofer Mode
Netzanschluss	PowerCon
Betriebsspannung	100 V AC - 120 V AC / 50 - 60 Hz
Betriebsspannung	220 V AC - 240 V AC, 50 - 60 Hz
Sicherung	T 5AL / 250 V
Leistungsaufnahme	400 W
Umgebungstemperatur	0 - 40 °C
Relative Luftfeuchtigkeit	<80% (nicht kondensierend)
Anzahl Line-Eingänge	2
Anschlüsse Line-Eingänge	Combo XLR / TRS
Anzahl Line-Ausgänge	1 x Sub OUT
Anzahl Line-Ausgänge	2 x THRU
Anschlüsse Line-Ausgänge	XLR male
Anzahl Lautsprecherausgänge	1
Anschlüsse Lautsprecherausgänge	Custom Made Multipin
Bluetooth-Standard	A2DP
Bluetooth-Audio-Decoder	AAC
Bluetooth-Audio-Decoder	SBC

DSP Eigenschaften

Bit - Tiefe AD / DA Wandler	24 Bit
Sampling-Frequenz	48 kHz
