Kompaktes Cardioid Säulen PA System mit Digital-Mixer, Weiß

2060 W peak power and 127 dB max. SPL

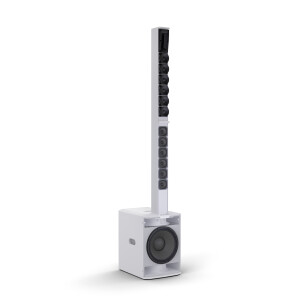

12" subwoofer for powerful bass reproduction
12 x 3.5" full-range speakers for balanced midrange
2 x 1" tweeters for precise and silky highs

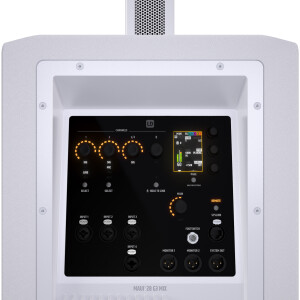

Digital 6-channel mixer with effects and footswitch input
Free app with "Easy" and "Expert" modes for configuration via smartphone and tablet (optional)
SysLink® Allows connection of two MAUI G3 MIX for twice as many mixer channels
Cardioid column for controlled dispersion in the low mids and mids
BEM-optimized HF waveguide and phase plugs for homogeneous dispersion characteristics
Optimized bass reflex design for improved bass response and reduced flow noise
Combination with a second MAUI® 28 G3 subwoofer for extended low-end or cardioid subwoofer setup
New DynX® DSP (Gen. 2) for distortion-free playback even at maximum volume
Wireless streaming via Bluetooth
Automatic setup detection for easy operation
Easy and quick setup without stands

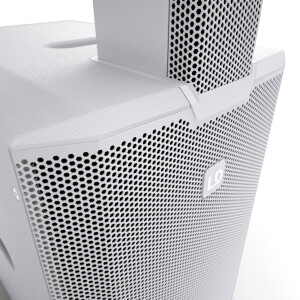

Robust subwoofer enclosure made of birch plywood with durable polyurea coating

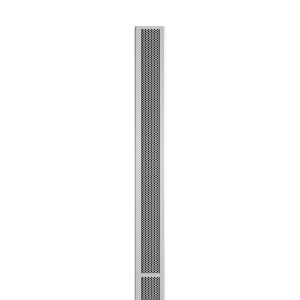

Lightweight aluminum columns with powder coating

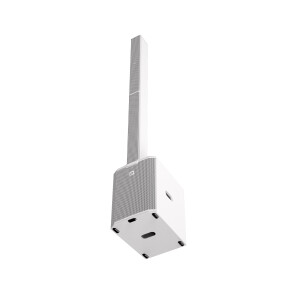

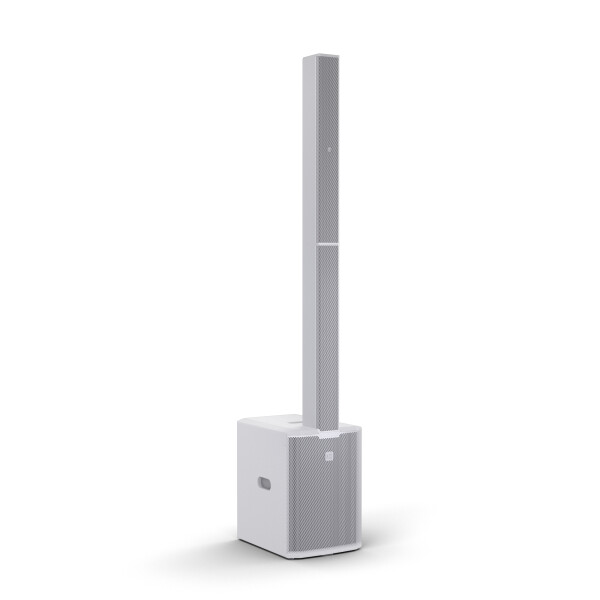

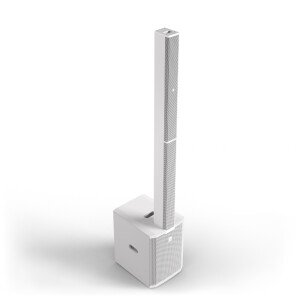

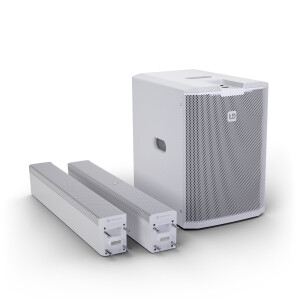

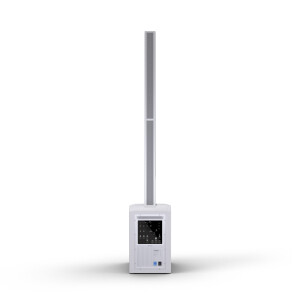

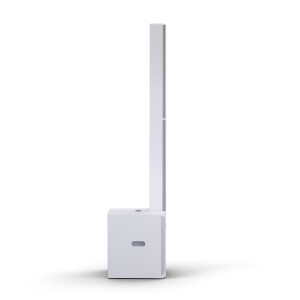

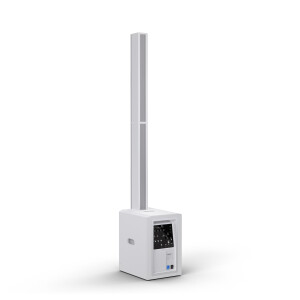

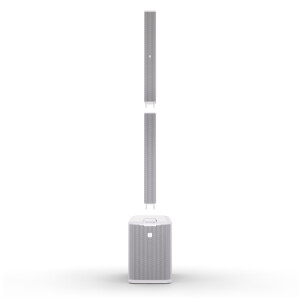

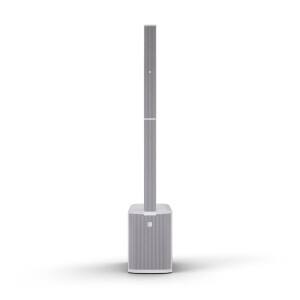

LD Systems MAUI 28 G3 MIX W

Name: LD Systems MAUI 28 G3 MIX W
Brand: LD Systems
SKU: 200130463
Price: 1590.00 EUR
Availability: InStock

Item No.: 200130463

1.590,00 €

pieces

incl. 19% VAT (Spedition)

In stock

Delivery time: 4 - 6 Workdays (DE - int. shipments may differ)

Payment Benefit:
Save 3% via bank transfer / advanced payment
Your price at checkout: 1.542,30 €

Description
Technische Daten

Product Information

Category H-L:

LD Systems MAUI 28 G3 MIX| LD Systems MAUI series
Number of Woofers:

1
Performance According To Manufacturer:

2060W
Vertical Beam Angle (Degrees):

30
Beam Angle Horizontal (Degrees):

120
Operating Mode:

Class D
Housing Material:

Multiplex
Bluetooth:

Yes
Dsp:

Yes

Product Description

Compact, powerful, and uncomplicated – a column PA system is and remains the ideal partner for DJs and small bands. The MAUI series from LD Systems embodies the all-in-one concept in its purest form, offering an unbeatable PA package in terms of sound, design, technology, and handling. Set it up, plug it in, and you're done! This is especially true for the MAUI G3 MIX versions with their integrated 6-channel digital mixer. All components are included and perfectly matched: mixer, effects, dynamics processing, DSP controller, power amplifiers, and speakers. Wireless remote control via smartphone or tablet using the free MAUI app (iOS or Android) is also included. The MAUI 28 G3 MIX is a highly developed, extremely powerful and smart premium-class column PA system with exceptionally superior audio quality. It delivers a big, powerful, and precise sound with 1,030 W RMS power (2,060 W peak), convincing in all applications: as a main PA for singer/songwriters and small bands, as a sound system for mobile DJ sets, or as a PA system for weddings, corporate events, and other occasions. The built-in 6-channel mixer adapts to the user's preferences via Easy or Expert mode. The user decides, for example, whether they prefer intuitive 3-band EQs or a 5-band fully parametric EQ. A comprehensive effects section provides the full range of reverb, delay, and dynamics processing options. All mixer and effects settings can be wirelessly controlled via the app. For stereo applications, two MAUI 28 G3 MIX units can be paired via SysLink®. In this case, twice the number of mixer channels is available, and with the REMOTE button, all channels can even be controlled from one system. With its elegant design, the MAUI 28 G3 MIX has a particularly harmonious appearance. The two aluminum column elements are located at the front edge of the subwoofer in the MAUI G3 series, which further enhances the seamless visual impression. The columns house 12 x 3.5" midrange drivers, which, in combination with the innovative phase-plug design and the 2 x 1" tweeters, ensure even sound distribution with constant horizontal dispersion. Furthermore, the BEM-optimized waveguide in front of the tweeters carries the high frequencies to the rear of the audience area. The crossover point, the transition between the midrange and tweeter drivers, was also meticulously engineered to reduce harmonic distortion and cancellation, resulting in an even more transparent and powerful sound. The result: exceptionally precise reproduction of vocals and instruments across the entire 120° x 30° dispersion area. The columns of the MAUI 28 G3 MIX are designed as cardioid loudspeakers. This ensures controlled low-midrange frequencies at the front and attenuation of up to 18 dB at the rear, resulting in a clean stage sound field. With its larger 12" driver and four bass reflex ports, the audibly more powerful subwoofer reproduces bass down to 37 Hz clearly and powerfully. When using a second subwoofer, the bass range can be boosted by 6 dB and operated in cardioid configuration at the touch of a button (preset). Furthermore, the subwoofer's extremely durable polyurea coating easily withstands even the toughest conditions "on the road." The MAUI 28 G3 MIX is a true sound machine, but it also impresses with its practical features for everyday use by solo entertainers, singer-songwriters, or small bands. Transport is as easy as ever, and during setup, the improved, invisible connectors between the elements offer increased stability – nothing can easily throw the MAUI off balance...

Product Video: LD Systems MAUI 28 G3 MIX W

Discover the product LD Systems MAUI 28 G3 MIX W in detail:

LD Systems MAUI 28 G3 CB

100,50 €

incl. 19% VAT (Paket)

Available

Payment Benefit:
Save 3% via bank transfer / advanced payment
Your price at checkout: 1.542,30 €

LD Systems MAUI 28 G3 SAT BAG

87,50 €

incl. 19% VAT (Paket)

Available

Payment Benefit:
Save 3% via bank transfer / advanced payment
Your price at checkout: 1.542,30 €

LD Systems MAUI 28 G3 SUB PC

52,70 €

incl. 19% VAT (Paket)

Available

Payment Benefit:
Save 3% via bank transfer / advanced payment
Your price at checkout: 1.542,30 €

Produktart	PA Komplettsysteme
Typ	Aktive
Farbe	Weiß (RAL 9003)
Max. SPL (Peak)	127 dB
Frequenzgang (-10dB)	37 Hz - 20000 Hz
Abstrahlwinkel (H x V)	120° x 30 °
Höhe (gesamt)	2052 mm
Gewicht	36,2 kg
Merkmale	6 Kanal Mixer
Merkmale	App Control (Easy + Expert Mode)
Merkmale	Bluetooth-Audio-Streaming
Merkmale	Cardioid Säule
Merkmale	Footswitch Input
Merkmale	On-Board Effekte + Dynamics
Merkmale	SysLink® (Kaskadieren von 2 Systemen)

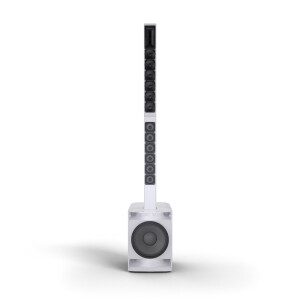

Subwoofer

Größe Tieftöner	12 "
Größe Tieftöner	305 mm
Magnet Tieftöner	Ferrit
Marke Tieftöner	Custom Made
Schwingspule Tieftöner	3 "
Schwingspule Tieftöner (mm)	76,2 mm
Gehäusebauart	Bassreflex
Gehäusematerial	15 mm Birken Multiplex
Gehäuseoberfläche	Polyurea
Abmessungen Subwoofer (B x H x T)	370 x 527 x 472 mm
Gewicht Subwoofer	23,6 kg

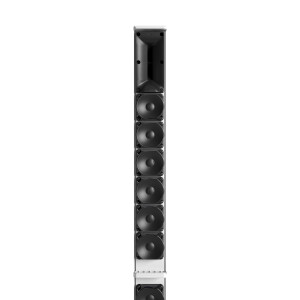

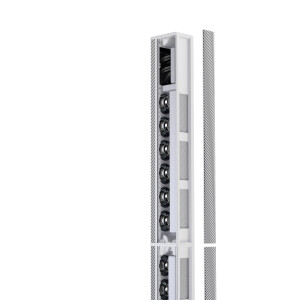

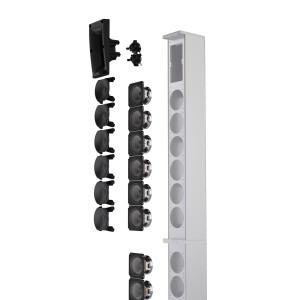

Mid/Hi System

Größe Mittentöner	12 x 3,5 "
Größe Mittentöner	12 x 89 mm
Magnet Mittentöner	Ferrit
Marke Mittentöner	Custom Made
Schwingspule Mittentöner	0,75 "
Schwingspule Mittentöner	19 mm
Größe Hochtöner	2 x 1 "
Größe Hochtöner	2 x 25,4 mm
Magnet Hochtöner	Neodym
Marke Hochtöner	Custom Made
Schwingspule Hochtöner	1 "
Schwingspule Hochtöner	25,4 mm
Waveguide	CD Waveguide
Lautsprechereingänge	1

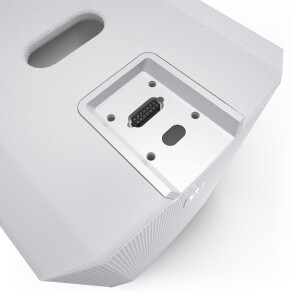

Lautsprechereingangsanschlüsse	Custom Made Multipin
Gehäusebauart Mid/Hi-System	Passiv Cardioid
Gehäusematerial Mid/Hi-System	Aluminium
Gehäuseoberfläche Mid/Hi-System	Pulverbeschichtet
Breite Mid/Hi-System	103 mm
Höhe Mid/Hi-System	1540 mm
Tiefe Mid/Hi-System	135 mm
Gewicht Mid/Hi-System	12,6 kg

Verstärkermodul (im Subwoofer integriert)

Verstärker	Class D
Systemleistung (RMS)	1030 W
Systemleistung (Peak)	2060 W
Schutzschaltungen	Kurzschluss
Schutzschaltungen	Multiband Limiter
Schutzschaltungen	Schutz vor Gleichstrom
Schutzschaltungen	Schutz vor Überhitzung
Kühlung	Konvektion

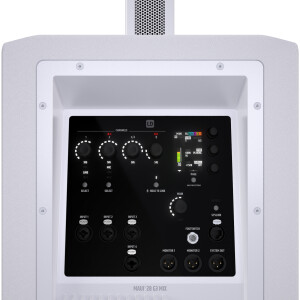

Bedienelemente	Bluetooth HOLD TO LINK-Taste
Bedienelemente	Channel Level
Bedienelemente	Dreh-Drück Encoder
Bedienelemente	Input Typ
Bedienelemente	Main Level
Bedienelemente	Page Taste
Bedienelemente	Power On/Off
Bedienelemente	Remote
Anzeigeelemente	Bluetooth
Anzeigeelemente	Channel Level
Anzeigeelemente	Display
Anzeigeelemente	Input Typ
Anzeigeelemente	Limit
Anzeigeelemente	Mute
Anzeigeelemente	Power
Anzeigeelemente	Protect (Schutzschaltung aktiv)
Anzeigeelemente	Remote
Anzeigeelemente	Signal
Netzanschluss	PowerCON
Betriebsspannung	100 V AC - 120 V AC / 50 - 60 Hz
Betriebsspannung	220 V AC - 240 V AC, 50 - 60 Hz
Sicherung	T5AL / 250 V
Leistungsaufnahme	400 W
Umgebungstemperatur	0 - 40 °C
Relative Luftfeuchtigkeit	<80% (nicht kondensierend)
Anzahl Line-Eingänge	4
Anzahl Line-Eingänge	Footswitch
Anschlüsse Line-Eingänge	Combo XLR / TRS
Anzahl Line-Ausgänge	1 System OUT
Anzahl Line-Ausgänge	2 Monitor OUT
Anschlüsse Line-Ausgänge	XLR male
Anzahl Lautsprecherausgänge	1
Anschlüsse Lautsprecherausgänge	Custom Made Multipin
Weitere Anschlüsse	1 RJ45 SysLink® Port
Bluetooth-Standard	A2DP
Bluetooth-Version	4.2
Bluetooth-Audio-Decoder	SBC

DSP Eigenschaften

Bit - Tiefe AD / DA Wandler	24 Bit
Sampling-Frequenz	48 kHz
