Kompaktes Säulen PA System aktiv mit Mixer und Bluetooth schwarz

All-in-one column loudspeaker for PA and monitor applications
2,000 watts peak Class-D system power delivers high performance at a low weight
Powerful bass response thanks to 2 x 8" woofers
Balanced midrange thanks to 16 x 3" full-range drivers
Precise and silky highs with 2 x 1" tweeters
Increased throw and wider room coverage thanks to array design
Homogeneous dispersion pattern thanks to BEM-optimized high-frequency waveguide
Distortion-free sound even at maximum volume thanks to LD Systems DynX® DSP technology
Full control via 4-channel mixer including Bluetooth® stereo audio streaming
Two-piece column for compact transport
Secure plug-and-play connection thanks to wireless multipin Plug-in mechanism
Versatile application possibilities thanks to detachable column
Child's play operation with presets for mono or stereo configuration
Extensive and clever accessories for installation and transport

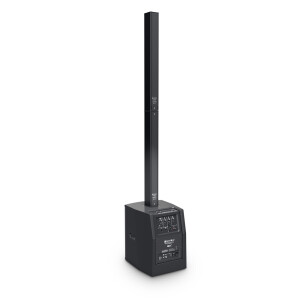

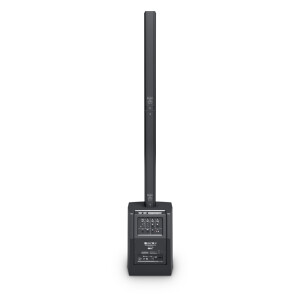

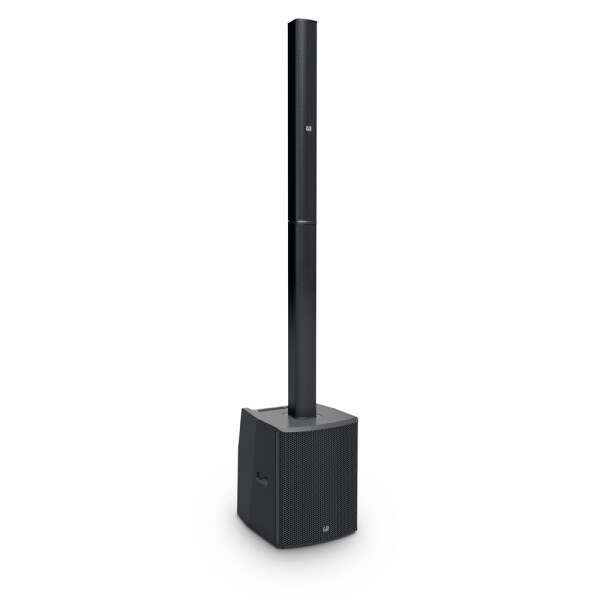

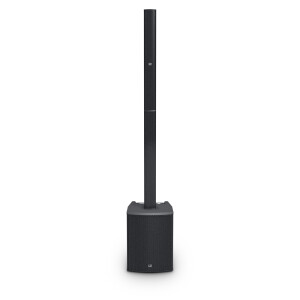

LD Systems MAUI 28 G2

Name: LD Systems MAUI 28 G2
Brand: LD Systems
SKU: 200130460
Price: 972.00 EUR
Availability: OutOfStock

Item No.: 200130460

972,00 €

pieces

incl. 19% VAT (Paket)

Out of Stock

Payment Benefit:
Save 3% via bank transfer / advanced payment
Your price at checkout: 942,84 €

Description
Technische Daten

Product Information

Category H-L:

LD Systems MAUI 28| LD Systems MAUI series
Number of Woofers:

2
Performance According To Manufacturer:

2000W
Power Rms:

1000W
Vertical Beam Angle (Degrees):

20
Beam Angle Horizontal (Degrees):

120
Operating Mode:

Class D
Housing Material:

plywood
Bluetooth:

Yes
Dsp:

Yes

Product Description

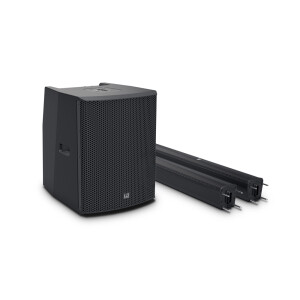

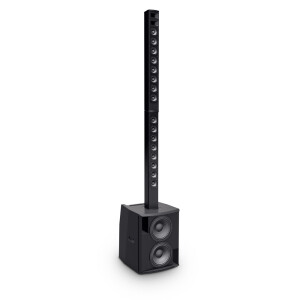

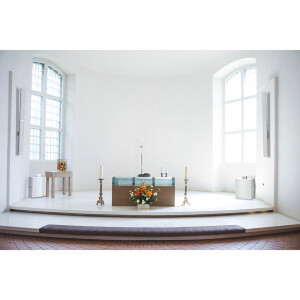

A complete sound system you can carry along with your instrument: that's the MAUI 28 G2. The two column elements fit in the padded shoulder bag, the subwoofer in one hand, and your guitar or keyboard in the other – that's it. Setting up this complete system, which functions as both a PA and monitor system, is just as easy thanks to the special multipin connectors. The compact and elegant MAUI 28 G2 offers unbeatable sound quality and wide-ranging sound dispersion. It was developed with years of experience in column system design as a user-friendly solution for mid-sized gigs and permanent installations. The MAUI 28 G2 is equipped with two 8” woofers, sixteen 3” full-range speakers, and two 1” neodymium pressure drivers. These are powered by a lightweight Class-D amplifier with a massive 2,000 watts peak power, producing powerful bass, balanced mids, and precise, silky highs. LD Systems' DynX® DSP technology ensures top-class performance and maximum distortion-free operation at all times. It includes a multiband limiter to protect against clipping, EQ, compressor, and a 3-way crossover with time alignment. The MAUI 28 G2's line array design achieves greater throw, increased feedback rejection, and wider room coverage, eliminating the need for separate monitor speakers. The tweeter waveguide was designed with the The MAUI 28 G2 utilizes the Edge Element Method (BEM), a numerical simulation of sound radiation and propagation. It reduces reflections from floors and ceilings, prevents side peaks, and thus achieves homogeneous sound dispersion – your audience hears you just as clearly in the back row as in the front. With the integrated 4-channel mixer, system presets for mono or stereo configuration, and Bluetooth® audio streaming, you have complete control over the system. As a singer-songwriter, solo entertainer, DJ, or musician in a small band, you'll be thrilled by the exceptional sound and portability of the MAUI 28 G2. The column and subwoofer can be set up separately, making the system extremely flexible and an excellent choice for permanent installations. With a selection of clever transport accessories and dedicated mounting hardware, the MAUI 28 G2 is a meticulously designed, comprehensive solution.

LD Systems MAUI 28 G2 Bundle

1.099,00 €

incl. 19% VAT (Paket)

Item out of stock

Payment Benefit:
Save 3% via bank transfer / advanced payment
Your price at checkout: 942,84 €

Gewicht	30,9 kg
Produktart	PA Komplettsysteme
Typ	aktiv

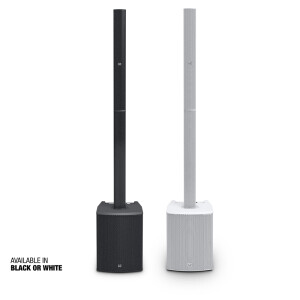

Farbe	schwarz
Max. SPL (Peak)	126 dB
Frequenzgang	45 - 20000
Abstrahlwinkel (H x V)	120° x 20 °
Gesamthöhe	2059 mm

Eigenschaften Tieftöner

Größe Tieftöner	2 x 8 "
Größe Tieftöner	2 x 203 mm
Magnet Tieftöner	Ferrit
Marke Tieftöner	Custom Made
Schwingspule Tieftöner	2 "
Schwingspule Tieftöner (mm)	50,8 mm
Gehäusebauart	Bassreflex
Gehäusematerial	15 mm Sperrholz
Gehäuseoberfläche	Strukturlack

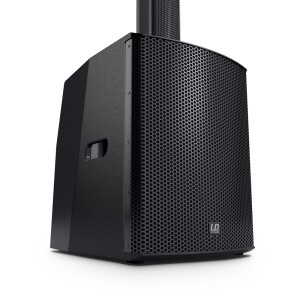

Breite Subwoofer	370 mm
Höhe Subwoofer	484 mm
Tiefe Subwoofer	480 mm
Gewicht Subwoofer	19,7 kg

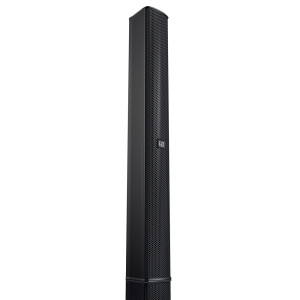

Mid/Hi System

Größe Mittentöner	16 x 3 "
Größe Mittentöner	16 x 76,2 mm
Magnet Mittentöner	Ferrit
Marke Mittentöner	Custom Made
Schwingspule Mittentöner	1 "
Schwingspule Mittentöner	25,4 mm
Horn	Waveguide
Größe Hochtöner	2 x 1 "
Größe Hochtöner	25,4 mm
Magnet Hochtöner	Neodym
Marke Hochtöner	Custom Made
Schwingspule Hochtöner	1 "
Schwingspule Hochtöner	25,4 mm
Lautsprechereingänge	1
Lautsprechereingangsanschlüsse	Custom made multipin
Gehäusebauart Mid/Hi-System	geschlossen
Gehäusematerial Mid/Hi-System	Aluminium
Gehäuseoberfläche Mid/Hi-System	HD coating
Breite Mid/Hi-System	96 mm
Höhe Mid/Hi-System	780 / 795 mm
Tiefe Mid/Hi-System	104 mm
Gewicht Mid/Hi-System	5,6 / 5,6 kg

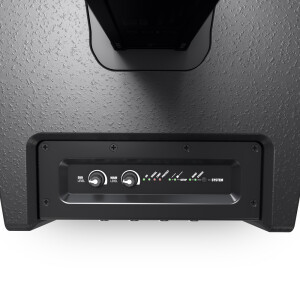

Verstärkermodul (im Subwoofer integriert)

Verstärker	Class D
Verstärkerleistung System (RMS)	1000 W
Verstärkerleistung System (Peak)	2000 W
Schutzschaltungen	DC-Schutz
Schutzschaltungen	Kurzschluss
Schutzschaltungen	Multiband Limiter
Schutzschaltungen	Überhitzung
Kühlung	Konvektion
Betriebstemperatur	0 - 40 °C
Feuchtigkeitsbereich	10% - 80% rel. (Nicht kondensierend)

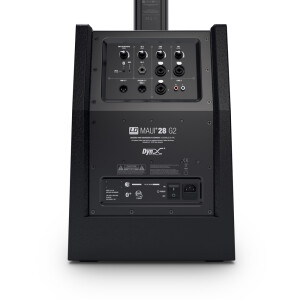

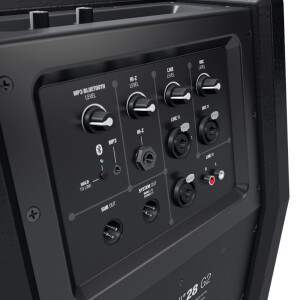

Bedienelemente	Bluetooth Schalter
Bedienelemente	Hi-Z Level
Bedienelemente	Line Level
Bedienelemente	Main Level
Bedienelemente	Mono-Stereo Schalter
Bedienelemente	MP3/Bluetooth Level
Bedienelemente	Power
Bedienelemente	Sub Level
Anzeigeelemente	Limit
Anzeigeelemente	Mono
Anzeigeelemente	On
Anzeigeelemente	Protect (Schutzschaltung aktiv)
Anzeigeelemente	Setup
Anzeigeelemente	Signal
Anzeigeelemente	Stereo
Stromversorgungsanschluss	IEC (Stromkabel inklusive)
Stromversorgung	100 - 120V / 50 - 60Hz oder 200 - 240 V / 50 - 60Hz (automatische Umrechnung)
Stromaufnahme Off / On / Max.	0/11/600 W

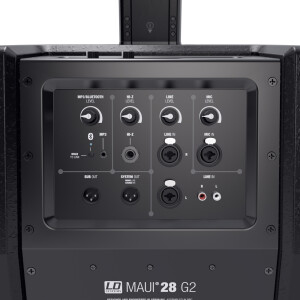

Line-Eingänge	2 x Stereo
Line-Eingangsanschlüsse	RCA
Line-Eingangsanschlüsse	XLR/6,3 mm Klinke
Line-Ausgänge	2 (1x System Out, 1x Sub Out)
Line-Ausgangsanschlüsse	XLR
Mic-Eingänge	1
Mic-Eingangsanschlüsse	XLR/6,3 mm Klinke
MP3-Eingänge	1
MP3-Eingangsanschlüsse	3,5 mm Klinke
Hi-Z-Eingänge	1
Hi-Z-Eingangsanschlüsse	6,3 mm Klinke
Lautsprecherausgänge	1
Lautsprecherausgangsanschlüsse	Custom made multipin
