Description
Technische Daten

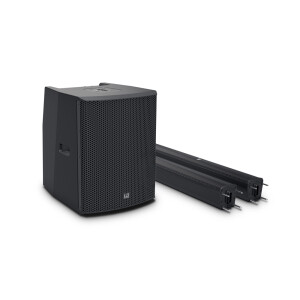

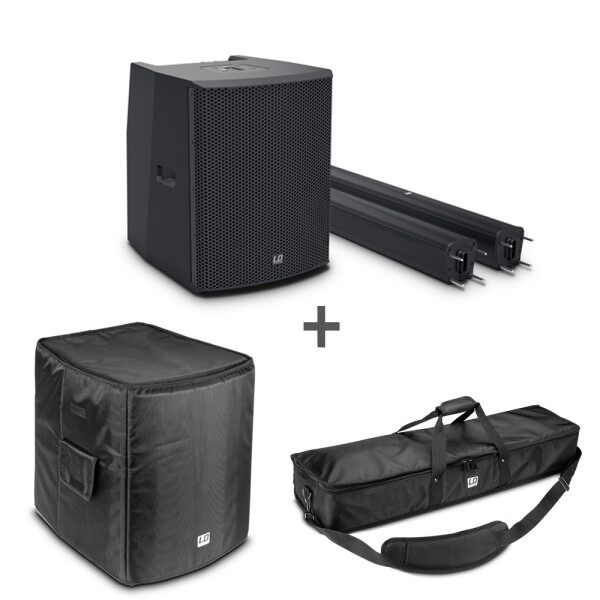

Set consisting of:

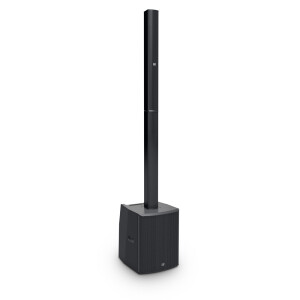

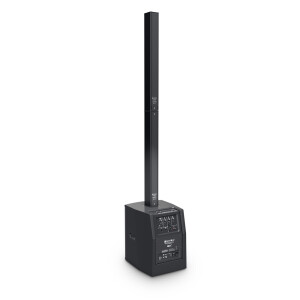

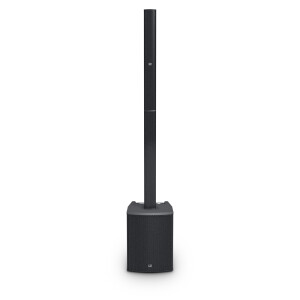

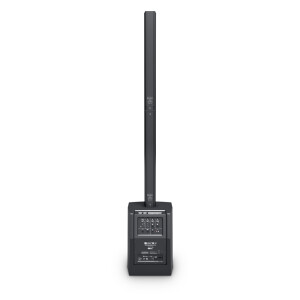

LD Systems Maui 28 G2 column system

All-in-one column speakers for PA and monitor applications
2,000 watts of peak Class-D system power offer high performance at low weight
Powerful bass reproduction thanks to 2 x 8" woofers
Balanced midrange thanks to 16 x 3" full-range speakers
Precise and silky highs with 2 x 1" Tweeter drivers
Increased range and wider room coverage thanks to array arrangement
Homogeneous dispersion thanks to BEM-optimized tweeter waveguide
Distortion-free sound even at the highest volume thanks to LD Systems DynX® DSP technology

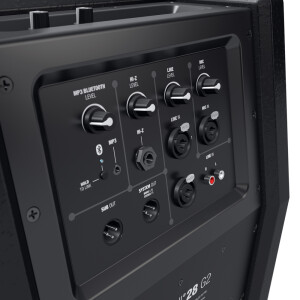

Full control thanks to 4-channel mixer including Bluetooth® Stereo Audio Streaming
Two-part column for compact transport
Secure plug-and-play connection thanks to wireless multi-pin connector mechanism
Various application possibilities thanks to removable column
Easy operation with presets for mono or stereo configuration
Extensive and clever accessories for installation and transport

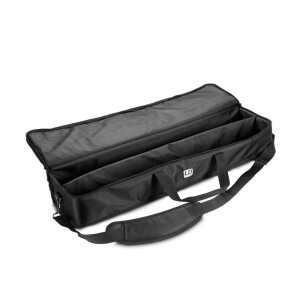

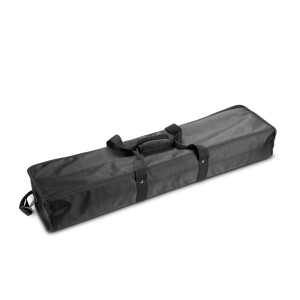

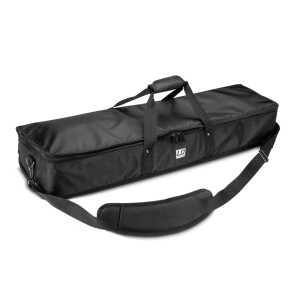

LD Systems Maui 28 G2 Sat Nylon Bag

For the column elements of the LD Maui 28 G2 systems
With handle
Color: Black

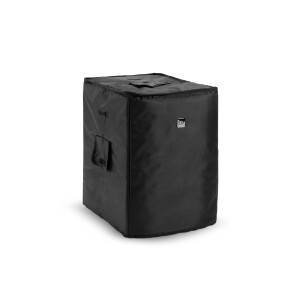

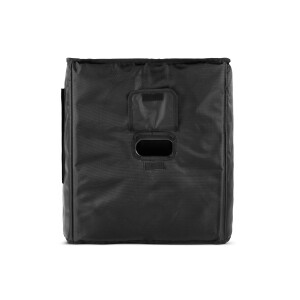

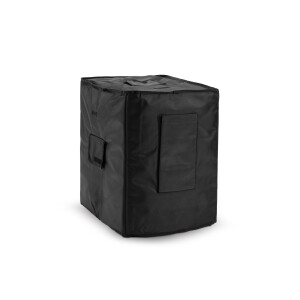

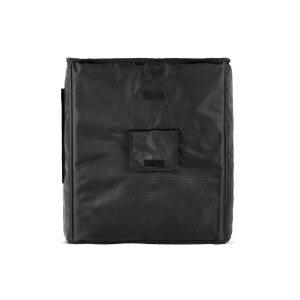

LD Systems Maui 28 G2 Sub Protective Case

for LD Maui 28 G2 Subwoofer
Color: Black

A complete sound system that you can carry along with your instrument: that's the MAUI 28 G2. The two column elements in the padded shoulder bag, the subwoofer in one hand, and the guitar or keyboard in the other - that's it. Setting up the complete system, which serves as both a PA and a monitor system, is just as easy with the special multi-pin connectors. The compact and elegant MAUI 28 G2 offers unbeatable sound quality and wide-ranging sound dispersion. It was developed with years of experience in column system design as a user-friendly solution for medium-sized gigs and permanent installations.

The MAUI 28 G2 is equipped with two 8" woofers, sixteen 3" full-range speakers, and two 1" neodymium pressure drivers. They are powered by a lightweight Class-D amplifier with an enormous 2,000 watts of peak power, producing powerful bass, balanced mids, and precise, silky highs. LD Systems' DynX® DSP technology ensures top-class performance and maximum freedom from distortion at all times. It includes a multiband limiter to protect against clipping, EQ, compressor, and a 3-way crossover with time correction.

The line array design of the MAUI 28 G2 achieves a greater throw, increased feedback immunity, and wider room coverage, eliminating the need for separate monitor speakers. The tweeter waveguide was developed using the boundary element method (BEM), a numerical simulation of sound radiation and propagation. It reduces reflections from floors and ceilings, prevents side effects, and thus achieves a homogeneous dispersion pattern – your audience will hear you just as clearly in the back row as in the front.

With the integrated 4-channel mixer, system presets for mono or stereo configuration, and Bluetooth® audio streaming, you have complete control over the system. As a singer-songwriter, solo entertainer, DJ, or musician in a small band, you'll be thrilled by the exceptional sound and portability of the MAUI 28 G2. The column and subwoofer can be set up separately, making the system extremely flexible and an excellent choice for permanent installations. With a selection of clever transport accessories and special mounting hardware, the MAUI 28 G2 is a complete solution that's been thought through down to the last detail.

Category H-L:

LD Systems MAUI 28 | LD Systems MAUI series
Number of Woofers:

2
Performance According To Manufacturer:

2000W
Power Rms:

1000W
Vertical Beam Angle (Degrees):

20
Beam Angle Horizontal (Degrees):

120
Operating Mode:

Class D
Housing Material:

plywood
Bluetooth:

Yes
Dsp:

Yes

Gewicht	30,9 kg
Produktart	PA Komplettsysteme
Typ	aktiv
Farbe	schwarz
Max. SPL (Peak)	126 dB
Frequenzgang	45 - 20000
Abstrahlwinkel (H x V)	120° x 20 °
Gesamthöhe	2059 mm

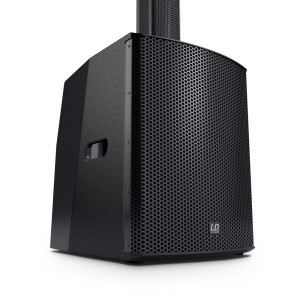

Eigenschaften Tieftöner

Größe Tieftöner	2 x 8 "
Größe Tieftöner	2 x 203 mm
Magnet Tieftöner	Ferrit
Marke Tieftöner	Custom Made
Schwingspule Tieftöner	2 "
Schwingspule Tieftöner (mm)	50,8 mm
Gehäusebauart	Bassreflex
Gehäusematerial	15 mm Sperrholz
Gehäuseoberfläche	Strukturlack
Breite Subwoofer	370 mm
Höhe Subwoofer	484 mm
Tiefe Subwoofer	480 mm
Gewicht Subwoofer	19,7 kg

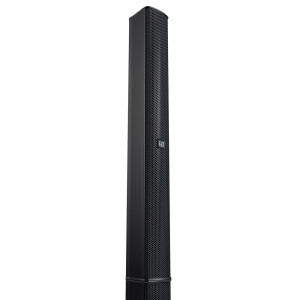

Mid/Hi System

Größe Mittentöner	16 x 3 "
Größe Mittentöner	16 x 76,2 mm
Magnet Mittentöner	Ferrit
Marke Mittentöner	Custom Made
Schwingspule Mittentöner	1 "
Schwingspule Mittentöner	25,4 mm
Horn	Waveguide
Größe Hochtöner	2 x 1 "
Größe Hochtöner	25,4 mm
Magnet Hochtöner	Neodym
Marke Hochtöner	Custom Made
Schwingspule Hochtöner	1 "
Schwingspule Hochtöner	25,4 mm
Lautsprechereingänge	1
Lautsprechereingangsanschlüsse	Custom made multipin
Gehäusebauart Mid/Hi-System	geschlossen
Gehäusematerial Mid/Hi-System	Aluminium
Gehäuseoberfläche Mid/Hi-System	HD coating
Breite Mid/Hi-System	96 mm
Höhe Mid/Hi-System	780 / 795 mm
Tiefe Mid/Hi-System	104 mm
Gewicht Mid/Hi-System	5,6 / 5,6 kg

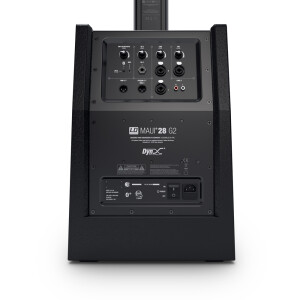

Verstärkermodul (im Subwoofer integriert)

Verstärker	Class D
Verstärkerleistung System (RMS)	1000 W
Verstärkerleistung System (Peak)	2000 W
Schutzschaltungen	DC-Schutz
Schutzschaltungen	Kurzschluss
Schutzschaltungen	Multiband Limiter
Schutzschaltungen	Überhitzung
Kühlung	Konvektion
Betriebstemperatur	0 - 40 °C
Feuchtigkeitsbereich	10% - 80% rel. (Nicht kondensierend)
Bedienelemente	Bluetooth Schalter
Bedienelemente	Hi-Z Level
Bedienelemente	Line Level
Bedienelemente	Main Level
Bedienelemente	Mono-Stereo Schalter
Bedienelemente	MP3/Bluetooth Level
Bedienelemente	Power
Bedienelemente	Sub Level
Anzeigeelemente	Limit
Anzeigeelemente	Mono
Anzeigeelemente	On
Anzeigeelemente	Protect (Schutzschaltung aktiv)
Anzeigeelemente	Setup
Anzeigeelemente	Signal
Anzeigeelemente	Stereo
Stromversorgungsanschluss	IEC (Stromkabel inklusive)
Stromversorgung	100 - 120V / 50 - 60Hz oder 200 - 240 V / 50 - 60Hz (automatische Umrechnung)
Stromaufnahme Off / On / Max.	0/11/600 W
Line-Eingänge	2 x Stereo
Line-Eingangsanschlüsse	RCA
Line-Eingangsanschlüsse	XLR/6,3 mm Klinke
Line-Ausgänge	2 (1x System Out, 1x Sub Out)
Line-Ausgangsanschlüsse	XLR
Mic-Eingänge	1
Mic-Eingangsanschlüsse	XLR/6,3 mm Klinke
MP3-Eingänge	1
MP3-Eingangsanschlüsse	3,5 mm Klinke
Hi-Z-Eingänge	1
Hi-Z-Eingangsanschlüsse	6,3 mm Klinke
Lautsprecherausgänge	1
Lautsprecherausgangsanschlüsse	Custom made multipin
