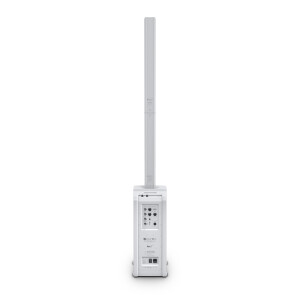

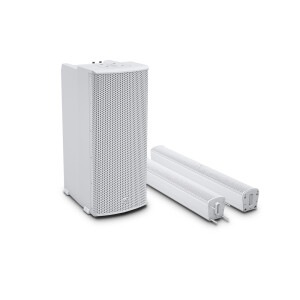

LD Systems MAUI 11 G2 W

Name: LD Systems MAUI 11 G2 W
Brand: LD Systems
SKU: 200130455
Price: 829.00 EUR
Availability: InStock

Item No.: 200130455

829,00 €

incl. 19% VAT (Paket)

pieces

In stock

Delivery time: 3 - 5 Workdays (DE - int. shipments may differ)

Payment Benefit:
Save 3% via bank transfer / advanced payment
Your price at checkout: 804,13 €

Description
Technische Daten

Product Information

Category H-L:

LD Systems MAUI 11| LD Systems MAUI series
Number of Woofers:

3
Performance According To Manufacturer:

1000W
Power Rms:

500W
Vertical Beam Angle (Degrees):

20
Beam Angle Horizontal (Degrees):

120
Operating Mode:

Class D
Housing Material:

plywood
Bluetooth:

Yes
Dsp:

Yes

Product Description

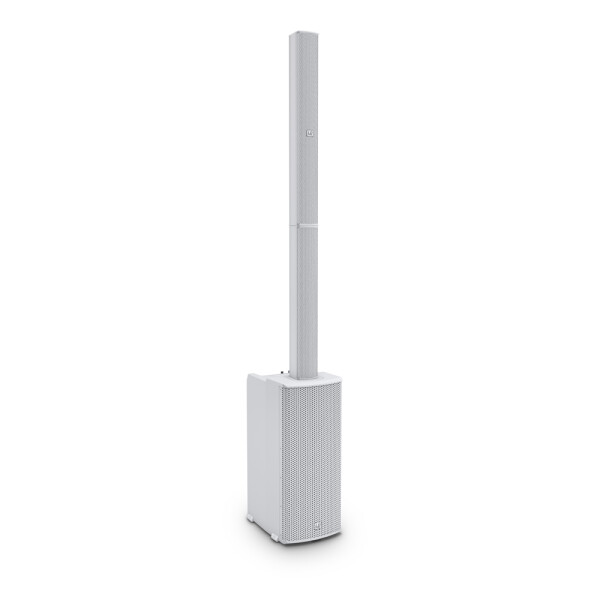

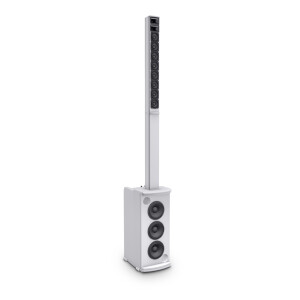

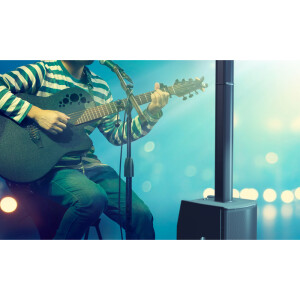

A complete sound system you can carry along with your instrument: that's the MAUI 11 G2. The two column elements fit in the padded shoulder bag, the subwoofer in one hand, and your guitar or keyboard in the other – that's it. Setting up this complete system, which functions as both a PA and monitor system, is just as easy thanks to the special multipin connectors. The compact and elegant MAUI 11 G2 offers unbeatable sound quality and wide-ranging sound dispersion. It was developed with years of experience in column system design as a user-friendly solution for small to medium-sized gigs and permanent installations. The MAUI 11 G2 is equipped with three 6.5" woofers, eight 3" full-range speakers, and two 1" neodymium pressure drivers. These are powered by a lightweight Class-D amplifier with a powerful 1,000 watts peak output, producing deep bass, balanced midrange, and precise, silky highs. LD Systems' DynX® DSP technology ensures top-class performance and maximum distortion-free operation at all times. It includes a multiband limiter to protect against clipping, EQ, compressor, and a 3-way crossover with time alignment. The MAUI 11 G2's line array design achieves greater throw, increased feedback rejection, and wider room coverage, eliminating the need for separate monitor speakers. The tweeter waveguide was designed with Developed using the Edge Element Method (BEM), a numerical simulation of sound radiation and propagation, it reduces reflections from floors and ceilings, prevents side peaks, and thus achieves homogeneous sound dispersion – your audience hears you just as clearly in the back row as in the front. With the integrated 4-channel mixer, system presets for mono or stereo configuration, and Bluetooth® audio streaming, you have complete control over the system. Whether you're a singer-songwriter, solo entertainer, or DJ, you'll be thrilled by the exceptional sound and portability of the MAUI 11 G2. The column and subwoofer can be set up separately, making the system extremely flexible and an excellent choice for permanent installations. With a selection of clever transport accessories and dedicated mounting hardware, the MAUI 11 G2 is a meticulously designed, comprehensive solution.

LD Systems MAUI 11 G2 SAT BAG

67,60 €

incl. 19% VAT (Paket)

Available

Payment Benefit:
Save 3% via bank transfer / advanced payment
Your price at checkout: 804,13 €

LD Systems MAUI 11 G2 SUB PC

46,70 €

incl. 19% VAT (Paket)

Available

Payment Benefit:
Save 3% via bank transfer / advanced payment
Your price at checkout: 804,13 €

Gewicht	24,9 kg
Produktart	PA Komplettsysteme
Typ	aktiv
Farbe	weiß
Max. SPL (Peak)	124 dB
Frequenzgang	50 - 20000
Abstrahlwinkel (H x V)	120° x 20 °
Gesamthöhe	2030 mm

Eigenschaften Tieftöner

Größe Tieftöner	3 x 6,5 "
Größe Tieftöner	3 x 165,1 mm
Magnet Tieftöner	Ferrit
Marke Tieftöner	Custom Made
Schwingspule Tieftöner	1,5 "
Schwingspule Tieftöner (mm)	38,1 mm
Gehäusebauart	Bassreflex
Gehäusematerial	15 mm Sperrholz
Gehäuseoberfläche	Strukturlack

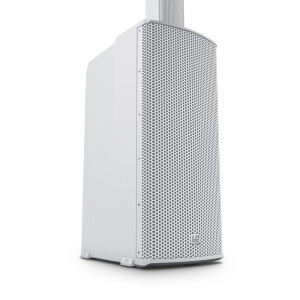

Breite Subwoofer	285 mm
Höhe Subwoofer	650 mm
Tiefe Subwoofer	373 mm
Gewicht Subwoofer	16,9 kg

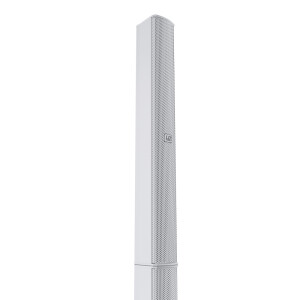

Mid/Hi System

Größe Mittentöner	8 x 3 "
Größe Mittentöner	8 x 76,2 mm
Magnet Mittentöner	Ferrit
Marke Mittentöner	Custom Made
Schwingspule Mittentöner	1 "
Schwingspule Mittentöner	25,4 mm
Horn	Waveguide
Größe Hochtöner	2 x1 "
Größe Hochtöner	25,4 mm
Magnet Hochtöner	Neodym
Marke Hochtöner	Custom Made
Schwingspule Hochtöner	1 "
Schwingspule Hochtöner	25,4 mm
Lautsprechereingänge	1
Lautsprechereingangsanschlüsse	Custom made multipin
Gehäusebauart Mid/Hi-System	geschlossen
Gehäusematerial Mid/Hi-System	Aluminium
Gehäuseoberfläche Mid/Hi-System	HD coating
Breite Mid/Hi-System	96 mm
Höhe Mid/Hi-System	620 / 730 mm
Tiefe Mid/Hi-System	104 mm
Gewicht Mid/Hi-System	5,4 / 2,6 kg

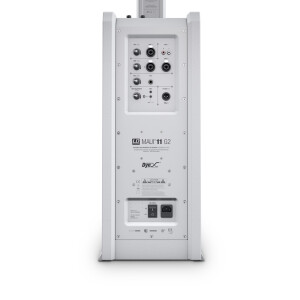

Verstärkermodul (im Subwoofer integriert)

Verstärker	Class D
Verstärkerleistung System (RMS)	500 W
Verstärkerleistung System (Peak)	1000 W
Schutzschaltungen	DC-Schutz
Schutzschaltungen	Kurzschluss
Schutzschaltungen	Multiband Limiter
Schutzschaltungen	Überhitzung
Kühlung	Konvektion
Betriebstemperatur	0 - 40 °C
Feuchtigkeitsbereich	10% - 80% rel. (Nicht kondensierend)

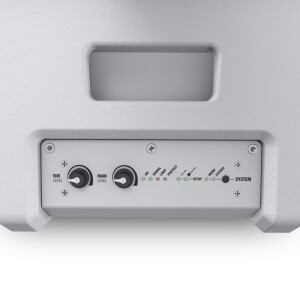

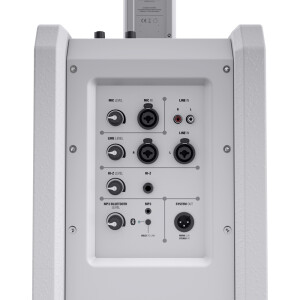

Bedienelemente	Bluetooth Schalter
Bedienelemente	Hi-Z Level
Bedienelemente	Line Level
Bedienelemente	Main Level
Bedienelemente	Mono-Stereo Schalter
Bedienelemente	MP3/Bluetooth Level
Bedienelemente	Power
Bedienelemente	Sub Level
Anzeigeelemente	Limit
Anzeigeelemente	Mono
Anzeigeelemente	On
Anzeigeelemente	Protect (Schutzschaltung aktiv)
Anzeigeelemente	Setup
Anzeigeelemente	Signal
Anzeigeelemente	Stereo
Stromversorgungsanschluss	IEC (Stromkabel inklusive)
Stromversorgung	100 - 120V / 50 - 60Hz oder 200 - 240 V / 50 - 60Hz (automatische Umrechnung)
Stromaufnahme Off / On / Max.	0/11/600 W

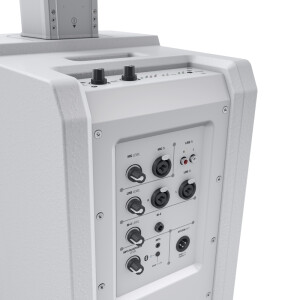

Line-Eingänge	2 x Stereo
Line-Eingangsanschlüsse	RCA
Line-Eingangsanschlüsse	XLR/6,3 mm Klinke
Line-Ausgänge	1 x Direct Out
Line-Ausgangsanschlüsse	XLR
Mic-Eingänge	1
Mic-Eingangsanschlüsse	XLR/6,3 mm Klinke
MP3-Eingänge	1
MP3-Eingangsanschlüsse	3,5 mm Klinke
Hi-Z-Eingänge	1
Hi-Z-Eingangsanschlüsse	6,3 mm Klinke
Lautsprecherausgänge	1
Lautsprecherausgangsanschlüsse	Custom made multipin
