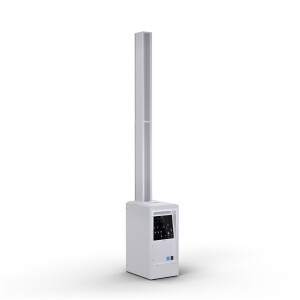

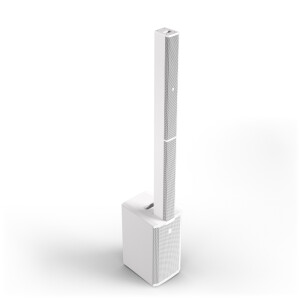

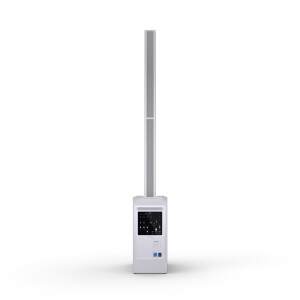

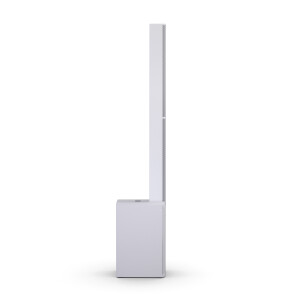

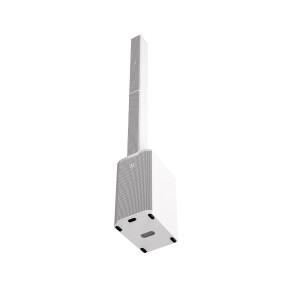

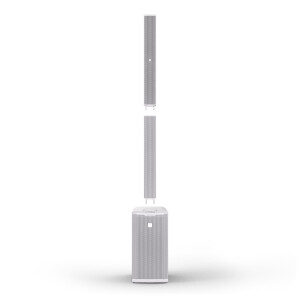

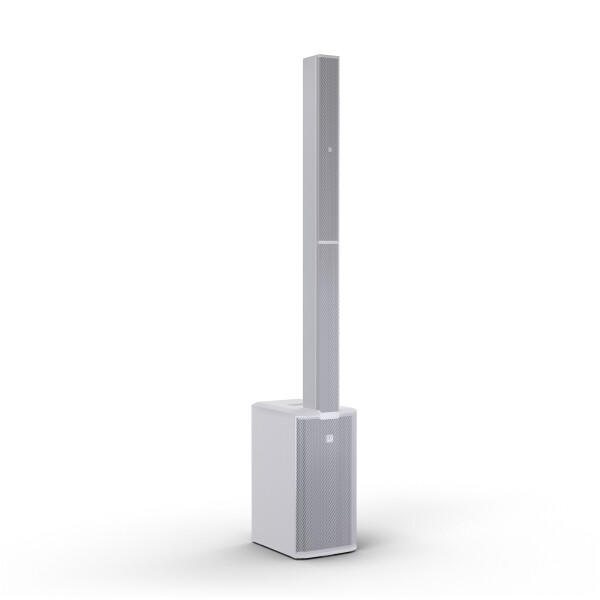

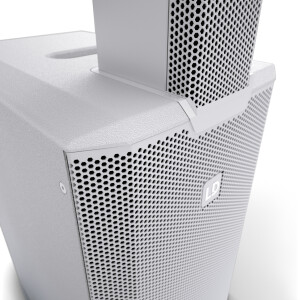

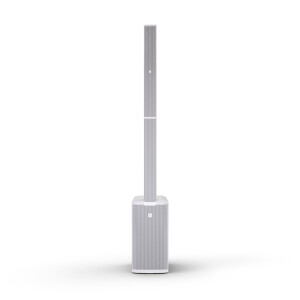

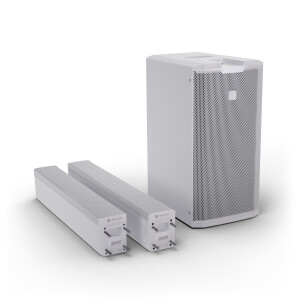

LD Systems MAUI 11 G3 MIX W

Name: LD Systems MAUI 11 G3 MIX W
Brand: LD Systems
SKU: 200130458
Price: 1480.00 EUR
Availability: InStock

Item No.: 200130458

1.480,00 €

incl. 19% VAT (Paket)

pieces

In stock

Delivery time: 3 - 5 Workdays (DE - int. shipments may differ)

Payment Benefit:
Save 3% via bank transfer / advanced payment
Your price at checkout: 1.435,60 €

Description
Technische Daten

Product Information

Category H-L:

LD Systems MAUI 11 G3 MIX| LD Systems MAUI series
Number of Woofers:

2
Performance According To Manufacturer:

1460W
Power Rms:

730W
Vertical Beam Angle (Degrees):

30
Beam Angle Horizontal (Degrees):

120
Operating Mode:

Class D
Housing Material:

Multiplex
Bluetooth:

Yes
Dsp:

Yes

Product Description

Compact, powerful, and uncomplicated – a column PA system is and remains the ideal partner for DJs and small bands. The MAUI series from LD Systems embodies the all-in-one concept in its purest form, offering an unbeatable PA package in terms of sound, design, technology, and handling. Set it up, plug it in, and you're done! This is especially true for the MAUI G3 MIX versions with their integrated 6-channel digital mixer. All components are included and perfectly matched: mixer, effects, dynamics processing, DSP controller, power amplifiers, and speakers. Wireless remote control via smartphone or tablet using the free MAUI app (iOS or Android) is also included. The MAUI 11 G3 MIX is a particularly compact, exceptionally powerful, and smart premium-class column PA system. It delivers a large, punchy, and precise sound with 730 W RMS power (1,460 W peak) that excels in all applications: as a main PA for singer/songwriters and small bands, as a sound system for mobile DJ sets, or as a PA system for weddings, corporate events, and other occasions. The built-in 6-channel mixer adapts to the user's preferences via Easy or Expert mode. The user decides whether they prefer, for example, intuitively operated 3-band EQs or a 5-band fully parametric EQ. A comprehensive effects section provides the full range of reverb, delay, and dynamics processing options. All mixer and effect settings can be controlled wirelessly via the app. For stereo applications, two MAUI 11 G3 MIX units can be linked via SysLink®. In this case, twice the number of mixer channels is available, and with the REMOTE button, all channels can even be controlled from one system. With its elegant design, the MAUI 11 G3 MIX has a particularly harmonious appearance. The two aluminum column elements are positioned at the front edge of the subwoofer in the MAUI G3 series, further enhancing the seamless visual impression. These columns house six 3.5" midrange drivers, which, in combination with the innovative phase plug design and the two 1" tweeters, ensure even sound distribution with consistent horizontal dispersion. Furthermore, the BEM-optimized waveguide in front of the tweeters carries the high frequencies all the way to the rear of the audience. The developers also worked on the crossover point, the transition between the midrange and treble speakers, to reduce harmonic distortion and cancellations, making the sound even more transparent and powerful. The result: exceptionally precise reproduction of vocals and instruments across the entire 120° x 30° dispersion area. The columns of the MAUI 11 G3 MIX are designed as cardioid loudspeakers. This ensures controlled low-midrange frequencies at the front and attenuation of up to 18 dB at the rear, resulting in a clean stage sound field. With its two larger 8" drivers and four bass reflex ports, the audibly more powerful subwoofer reproduces bass down to 39 Hz clearly and powerfully. When using a second subwoofer, the bass range can be boosted by 6 dB and operated in cardioid configuration at the touch of a button (preset). Furthermore, the subwoofer's extremely durable polyurea coating withstands even the toughest conditions "on the road." The MAUI 11 G3 MIX is a true sound machine, but it also impresses with its practical features for everyday use by solo entertainers, singer/songwriters, or small bands. Transport is as easy as ever, and during setup, the improved, invisible connectors between the elements offer increased stability – nothing can easily throw the MAUI off balance...

LD Systems MAUI 11 G3 CB

90,40 €

incl. 19% VAT (Paket)

Available

Payment Benefit:
Save 3% via bank transfer / advanced payment
Your price at checkout: 1.435,60 €

LD Systems MAUI 11 G3 SAT BAG

70,60 €

incl. 19% VAT (Paket)

Available

Payment Benefit:
Save 3% via bank transfer / advanced payment
Your price at checkout: 1.435,60 €

LD Systems MAUI 11 G3 SUB PC

49,70 €

incl. 19% VAT (Paket)

Available

Payment Benefit:
Save 3% via bank transfer / advanced payment
Your price at checkout: 1.435,60 €

Produktart	PA Komplettsysteme
Typ	Aktive
Farbe	Weiß (RAL 9003)
Max. SPL (Peak)	125 dB
Frequenzgang (-10dB)	39 Hz - 20000 Hz
Abstrahlwinkel (H x V)	120° x 30 °
Höhe (gesamt)	2052 mm
Gewicht	31,5 kg
Merkmale	6 Kanal Mixer
Merkmale	App Control (Easy + Expert Mode)
Merkmale	Bluetooth-Audio-Streaming
Merkmale	Cardioid Säule
Merkmale	Footswitch Input
Merkmale	On-Board Effekte + Dynamics
Merkmale	SysLink® (Kaskadieren von 2 Systemen)

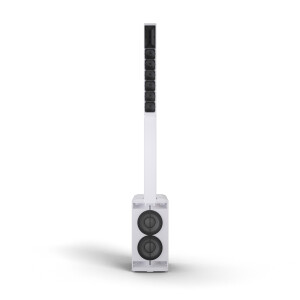

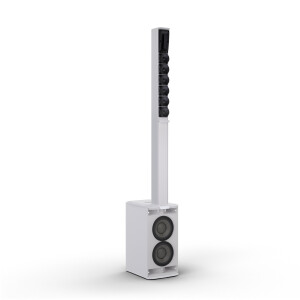

Subwoofer

Größe Tieftöner	2 x 8 "
Größe Tieftöner	2 x 203 mm
Magnet Tieftöner	Ferrit
Marke Tieftöner	Custom Made
Schwingspule Tieftöner	2 "
Schwingspule Tieftöner (mm)	50,8 mm
Gehäusebauart	Bassreflex
Gehäusematerial	15 mm Birken Multiplex
Gehäuseoberfläche	Polyurea
Abmessungen Subwoofer (B x H x T)	305 x 607 x 403 mm
Gewicht Subwoofer	21,3 kg

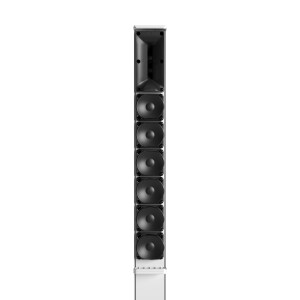

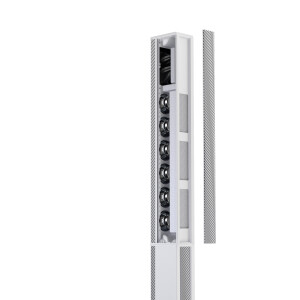

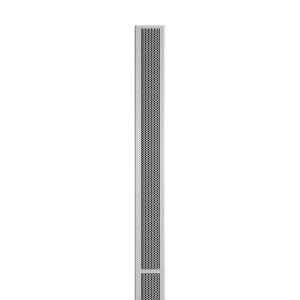

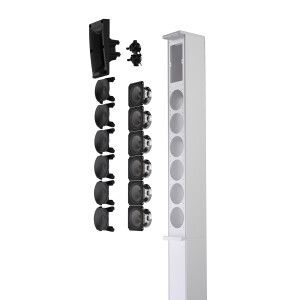

Mid/Hi System

Größe Mittentöner	6 x 3,5 "
Größe Mittentöner	6 x 89 mm
Magnet Mittentöner	Ferrit
Marke Mittentöner	Custom Made
Schwingspule Mittentöner	0,75 "
Schwingspule Mittentöner	19 mm
Größe Hochtöner	2 x 1 "
Größe Hochtöner	2 x 25,4 mm
Magnet Hochtöner	Neodym
Marke Hochtöner	Custom Made
Schwingspule Hochtöner	1 "
Schwingspule Hochtöner	25,4 mm
Waveguide	CD Waveguide
Lautsprechereingänge	1

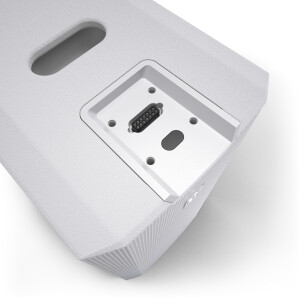

Lautsprechereingangsanschlüsse	Custom Made Multipin
Gehäusebauart Mid/Hi-System	Passiv Cardioid
Gehäusematerial Mid/Hi-System	Aluminium
Gehäuseoberfläche Mid/Hi-System	Pulverbeschichtet
Breite Mid/Hi-System	103 mm
Höhe Mid/Hi-System	1460 mm
Tiefe Mid/Hi-System	135 mm
Gewicht Mid/Hi-System	10,2 kg

Verstärkermodul (im Subwoofer integriert)

Verstärker	Class D
Systemleistung (RMS)	730 W
Systemleistung (Peak)	1460 W
Schutzschaltungen	Kurzschluss
Schutzschaltungen	Multiband Limiter
Schutzschaltungen	Schutz vor Gleichstrom
Schutzschaltungen	Schutz vor Überhitzung
Kühlung	Konvektion

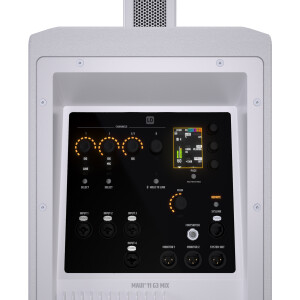

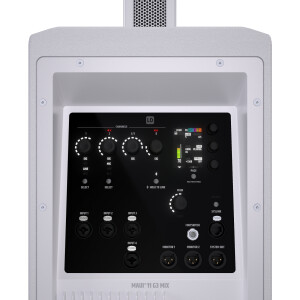

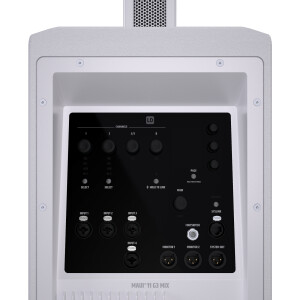

Bedienelemente	Bluetooth HOLD TO LINK-Taste
Bedienelemente	Channel Level
Bedienelemente	Dreh-Drück Encoder
Bedienelemente	Input Typ
Bedienelemente	Main Level
Bedienelemente	Page Taste
Bedienelemente	Power On/Off
Bedienelemente	Remote
Anzeigeelemente	Bluetooth
Anzeigeelemente	Channel Level
Anzeigeelemente	Display
Anzeigeelemente	Input Typ
Anzeigeelemente	Limit
Anzeigeelemente	Mute
Anzeigeelemente	Power
Anzeigeelemente	Protect (Schutzschaltung aktiv)
Anzeigeelemente	Remote
Anzeigeelemente	Signal
Netzanschluss	PowerCON
Betriebsspannung	100 V AC - 120 V AC / 50 - 60 Hz
Betriebsspannung	220 V AC - 240 V AC, 50 - 60 Hz
Sicherung	T 3,15AL / 250 V
Leistungsaufnahme	300 W
Umgebungstemperatur	0 - 40 °C
Relative Luftfeuchtigkeit	<80% (nicht kondensierend)
Anzahl Line-Eingänge	4
Anzahl Line-Eingänge	Footswitch
Anschlüsse Line-Eingänge	Combo XLR / TRS
Anzahl Line-Ausgänge	1 System OUT
Anzahl Line-Ausgänge	2 Monitor OUT
Anschlüsse Line-Ausgänge	XLR male
Anzahl Lautsprecherausgänge	1
Anschlüsse Lautsprecherausgänge	Custom Made Multipin
Weitere Anschlüsse	1 RJ45 SysLink® Port
Bluetooth-Standard	A2DP
Bluetooth-Version	4.2
Bluetooth-Audio-Decoder	SBC
