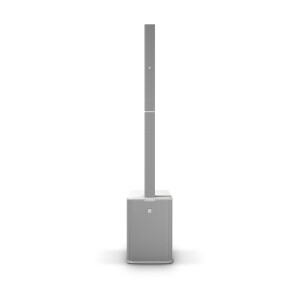

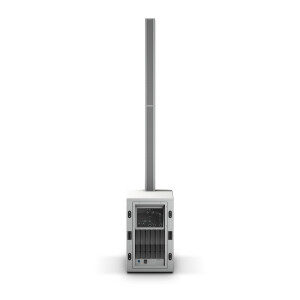

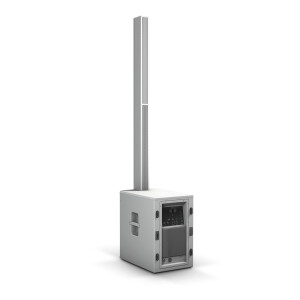

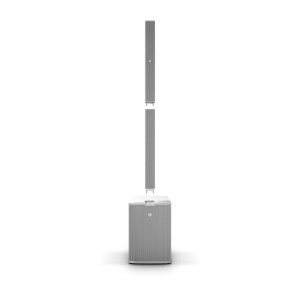

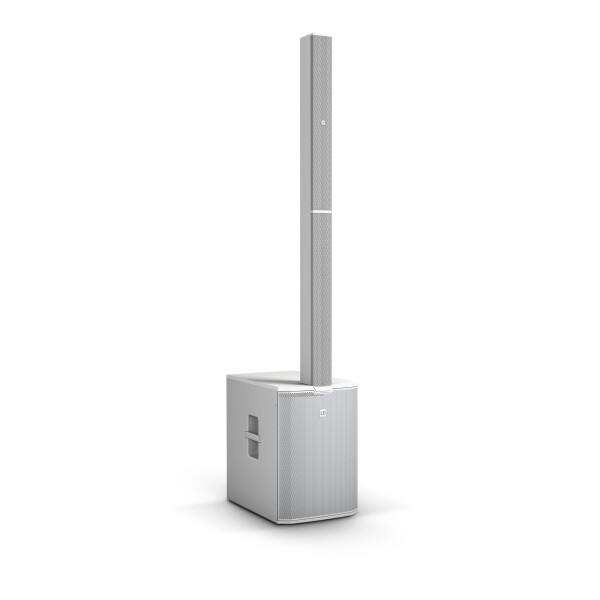

LD Systems MAUI 44 G2 W

Name: LD Systems MAUI 44 G2 W
Brand: LD Systems
SKU: 200130468
Price: 2200.00 EUR
Availability: InStock

Item No.: 200130468

2.200,00 €

incl. 19% VAT (Spedition)

pieces

In stock

Delivery time: 4 - 6 Workdays (DE - int. shipments may differ)

Payment Benefit:
Save 3% via bank transfer / advanced payment
Your price at checkout: 2.134,00 €

Description
Technische Daten

Product Information

Category H-L:

LD Systems MAUI 44| LD Systems MAUI series
Number of Woofers:

1
Performance According To Manufacturer:

1500W
Vertical Beam Angle (Degrees):

25
Beam Angle Horizontal (Degrees):

120
Operating Mode:

Class D
Housing Material:

plywood

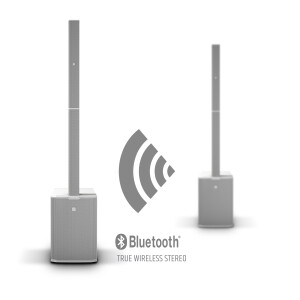

Bluetooth:

Yes
Dsp:

Yes

Product Description

For bands and DJs, column systems have triggered a true revolution in numerous applications. It has never been easier to evenly fill large rooms with sound using a small and unobtrusive PA system. With the MAUI® 44 G2 W, the professional segment is now also being served by these practical and powerful sound reinforcement systems.

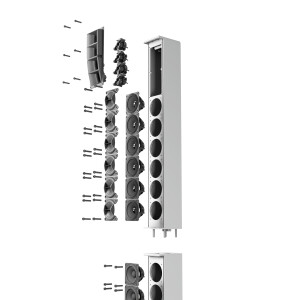

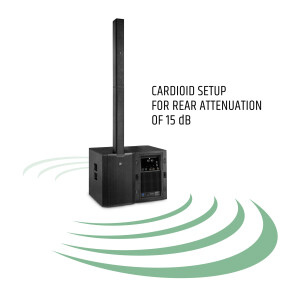

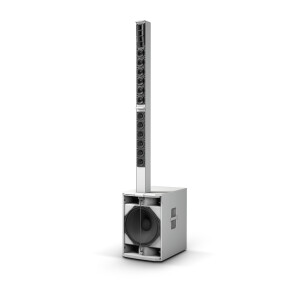

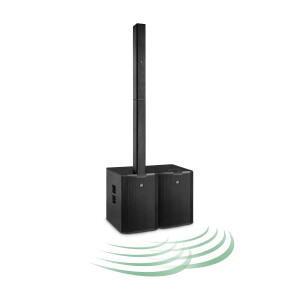

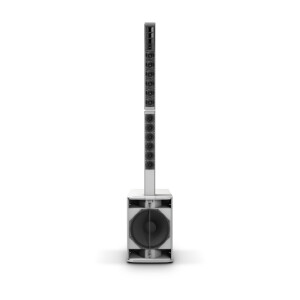

The MAUI® 44 G2 W from LD-Systems is the flagship of the column PAs in the MAUI® series and offers a generous 1,500 watts of total power (RMS) with a frequency response of 37 Hz to 20 kHz and a sound pressure level of 132 dB (peak). With its outstanding sound characteristics and diverse functions, this compact column PA is ideal for rental companies, musicians, small clubs, street festivals, and permanent installations. The cardioid characteristics of the column elements, as well as the option of adding a subwoofer to achieve a cardioid effect in the bass range, further underscores the professional aspirations of this sound system. The column achieves a rear attenuation of 18 dB, while the subwoofer achieves 15 dB. The MAUI® 44 G2 W sets the standard for sound quality, even when the two-part column is equipped with twelve 3.5" neodymium full-range speakers and four 1" high-frequency drivers with waveguides. Phase plugs on the six upper drivers improve horizontal directivity, reduce distortion, and optimize sensitivity below the crossover frequency for the tweeters. Furthermore, the four tweeters feature specially designed and optimized compression drivers connected to a constant-directional waveguide, enabling 120° horizontal coverage and a focused 25° vertical directivity. The curved design of the waveguide directs more energy in the high frequencies to listeners at greater distances. For permanent installations or conference sound reinforcement, the TrueWireless™ Stereo function greatly simplifies operation. This technology enables wireless connection of two systems for stereo playback. Bluetooth® streaming in HD quality is easily possible thanks to aptX™ and AAC encoding, and DynX® DSP technology guarantees distortion-free sound reproduction even at the highest volumes. Overall and subwoofer levels are individually adjustable, allowing for perfectly balanced sound in any situation with crystal-clear highs, crisp mids, and particularly powerful bass thanks to the flow-optimized bass reflex channels. Another particularly user-friendly feature is the automatic setup detection of the MAUI® 44 G2 W: For example, if the column is removed to use the subwoofer as a follower, the display automatically switches to FOLLOWER, and functions such as Bluetooth and the volume controls for MAIN and SUB are no longer displayed. But the MAUI® 44 G2 W is also top-of-the-line when it comes to transport and mobile use. Setup is quick and easy, requiring no cables or stands, thanks to special multi-pin connectors. Together, the robust birch plywood subwoofer enclosure with a polyurea coating and the lightweight, powder-coated aluminum column weigh less than 48 kg. Compared to the previous model, the weight has been reduced by 20%. The optionally available transport dolly, carrying bag, and sub cover provide excellent everyday convenience. The MAUI® 44 G2 W offers two XLR inputs. Two XLR outputs allow for a wired stereo configuration of two systems. An additional subwoofer can be connected via the SUB OUT, and power is supplied safely and reliably via a PowerCon connector.

LD Systems MAUI 44 G2 CB

115,00 €

incl. 19% VAT (Paket)

Available

Payment Benefit:
Save 3% via bank transfer / advanced payment
Your price at checkout: 2.134,00 €

LD Systems MAUI 44 G2 SAT BAG

92,60 €

incl. 19% VAT (Paket)

Available

Payment Benefit:
Save 3% via bank transfer / advanced payment
Your price at checkout: 2.134,00 €

LD Systems MAUI 44 G2 SUB PC

60,80 €

incl. 19% VAT (Paket)

Available

Payment Benefit:
Save 3% via bank transfer / advanced payment
Your price at checkout: 2.134,00 €

Produktart	PA Komplettsysteme
Typ	Aktive
Farbe	Weiß
Max. SPL (Peak)	132 dB
Frequenzgang	37 - 20000 Hz
Abstrahlwinkel (H x V)	120 x 25 °
Höhe (gesamt)	2256 mm
Gewicht	47,6 kg
Merkmale	Bluetooth-Audio-Streaming
Merkmale	DSP basierte Signalverarbeitung
Merkmale	Exzellentes Abstrahlverhalten
Merkmale	Mono-/Stereo-Betrieb

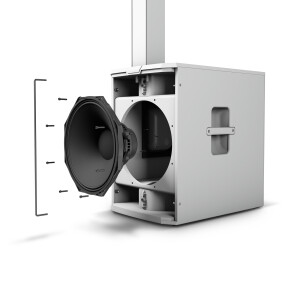

Subwoofer

Größe Tieftöner	15 "
Größe Tieftöner	381 mm
Magnet Tieftöner	Neodym
Marke Tieftöner	Custom Made
Schwingspule Tieftöner	4 "
Schwingspule Tieftöner (mm)	101 mm
Gehäusebauart	Bassreflex
Gehäusematerial	15 mm Birkensperrholz
Gehäusematerial	18 mm Birkensperrholz
Gehäuseoberfläche	Polyurea
Abmessungen Subwoofer (B x H x T)	434 x 634 x 637 mm
Gewicht Subwoofer	36,4 kg

Mid/Hi System

Größe Mittentöner	12 x 3,5 "
Größe Mittentöner	12 x 89 mm
Magnet Mittentöner	Neodym
Marke Mittentöner	Custom Made
Schwingspule Mittentöner	1 "
Schwingspule Mittentöner	25,4 mm
Größe Hochtöner	4 x 0,5 "
Größe Hochtöner	12,7 mm
Magnet Hochtöner	Neodym
Marke Hochtöner	Custom Made
Schwingspule Hochtöner	1 "
Schwingspule Hochtöner	25,4 mm
Waveguide	CD Waveguide
Lautsprechereingänge	1
Lautsprechereingangsanschlüsse	Custom made multipin
Gehäusebauart Mid/Hi-System	geschlossen
Gehäusematerial Mid/Hi-System	Aluminium
Gehäuseoberfläche Mid/Hi-System	HD-beschichtetes Aluminium
Gehäuseoberfläche Mid/Hi-System	mehrschichtiges Mesh-Gewebe
Breite Mid/Hi-System	103 mm
Höhe Mid/Hi-System	1621 mm
Tiefe Mid/Hi-System	135 mm
Gewicht Mid/Hi-System	11,2 kg

Verstärkermodul (im Subwoofer integriert)

Verstärker	Class D
Systemleistung (RMS)	1500 W
Schutzschaltungen	Kurzschluss
Schutzschaltungen	Multiband Limiter
Schutzschaltungen	Schutz vor Gleichstrom
Schutzschaltungen	Schutz vor Überhitzung
Kühlung	Konvektion

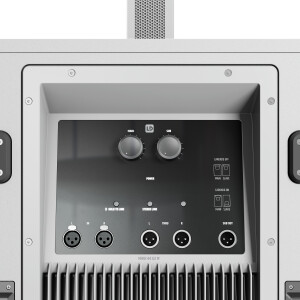

Bedienelemente	Bluetooth HOLD TO LINK-Taste
Bedienelemente	Bluetooth STEREO LINK-Taste
Bedienelemente	Cardioid On/Off
Bedienelemente	Main Level
Bedienelemente	Power On/Off
Bedienelemente	Sub Level
Anzeigeelemente	Bluetooth
Anzeigeelemente	Bluetooth STEREO LINK
Anzeigeelemente	Cardioid On/Off
Anzeigeelemente	Follower Mode
Anzeigeelemente	Limit
Anzeigeelemente	Power
Anzeigeelemente	Protect (Schutzschaltung aktiv)
Anzeigeelemente	Signal
Anzeigeelemente	Subwoofer Mode
Netzanschluss	Neutrik powerCON
Betriebsspannung	100 V AC - 120 V AC / 50 - 60 Hz
Betriebsspannung	220 V AC - 240 V AC, 50 - 60 Hz
Umgebungstemperatur	0 - 40 °C
Relative Luftfeuchtigkeit	<80% (nicht kondensierend)
Anzahl Line-Eingänge	2
Anschlüsse Line-Eingänge	XLR female
Anzahl Line-Ausgänge	2
Anschlüsse Line-Ausgänge	XLR male
Anzahl Lautsprecherausgänge	1
Anschlüsse Lautsprecherausgänge	Custom Made Multipin
Bluetooth-Standard	A2DP
Bluetooth-Audio-Decoder	AAC
Bluetooth-Audio-Decoder	aptX
Bluetooth-Audio-Decoder	SBC
