Number of Woofers:1
-
Woofer in Inches:8
-
Performance According To Manufacturer:600W
-
Power Rms:300W
-
Speaker Equipment:1x 8 inches
-
Operating Mode:Class D
-
Housing Material:plywood
-
Bluetooth:No
-
Dsp:No
-
Ways:2-way
-
Active/Passive:active

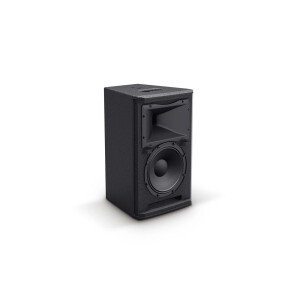

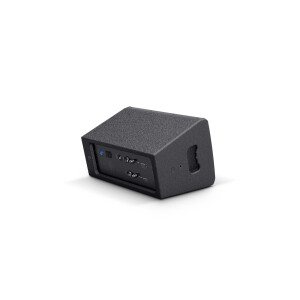

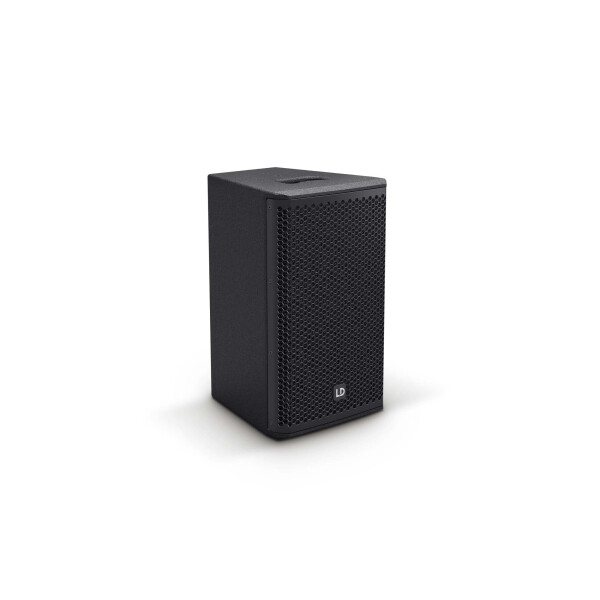

This highly professional 2-way active system is designed for absolute, lasting reliability. With its multifunctional bass-reflex enclosure and precisely tuned, user-friendly presets, the speaker is suitable as a full-range speaker, satellite, and floor monitor. The STINGER® 8 A G3 is driven by a highly efficient Class-D amplifier with a powerful 300 watts of continuous power. The specially developed 8” woofer and a BMS tweeter deliver powerful bass and crisp, natural highs. The tweeter's waveguide was developed using the Boundary Element Method (BEM), a numerical simulation of sound radiation and propagation. It reduces reflections from floors and ceilings, prevents side peaks, and thus achieves controlled, homogeneous dispersion. Thanks to LD Systems’ proprietary DynX® DSP technology, the STINGER® 8 A G3 delivers perfect performance with maximum clarity and assertiveness under all conditions. The signal processing of the crossover function and multiband limiter achieves optimal time alignment and the highest level of distortion-free operation. Designed as a true workhorse, the speaker's cabinet is constructed from robust birch plywood. With its extremely durable polyurea coating, it offers exceptional stability and longevity. Features include a steel front grille, dual-tilt stand mount, rigging points, and ergonomic handles. The STINGER® 8 A G3 is an attractively priced speaker. A solution for professional sound reinforcement; extensive accessories support use on stage and in permanent installations.
| Produktart | PA Lautsprecher |
| Typ | Aktive |
| Größe Tieftöner | 8 " |
| Größe Tieftöner | 203,2 mm |
| Magnet Tieftöner | Ferrit |
| Marke Tieftöner | Custom Made |
| Schwingspule Tieftöner | 2 " |
| Schwingspule Tieftöner (mm) | 50,8 mm |
| Horn | BEM optimiertes CD Horn |
| Größe HF Treiber | 1 " |
| Größe HF Treiber | 25,4 mm |
| Magnet HF Treiber | Ferrit |
| Marke HF Treiber | BMS |
| Schwingspule HF Treiber | 1 " |
| Schwingspule HF Treiber | 25,4 mm |
| Verstärker | Class D |
| Abstrahlwinkel (H x V) | 90 x 50 ° |
| Leistung (RMS) | 300 W |
| Leistung (Peak) | 600 W |
| Frequenzgang | 70 - 20000 |
| Max. SPL (Peak) | 125 dB |
| Schutzschaltungen | Multiband Limiter |
| Schutzschaltungen | Überhitzung |
| Schutzschaltungen | Überspannung |
| Schutzschaltungen | Überstrom |
| Eingangsempfindlichkeit | -9 dBu |

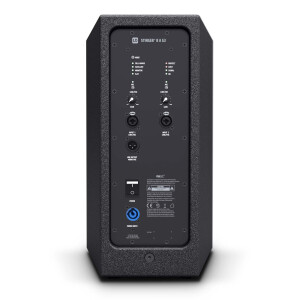

| Bedienelemente | 2 x Gain |
| Bedienelemente | 2 x Mic/Line |
| Bedienelemente | Mode |
| Anzeigeelemente | Limit |
| Anzeigeelemente | Mic |
| Anzeigeelemente | Mode |
| Anzeigeelemente | On |
| Anzeigeelemente | Protect (Schutzschaltung aktiv) |
| Anzeigeelemente | Signal |
| Line-Eingänge | 2 |
| Line-Eingangsanschlüsse | 6,3 mm Klinke |
| Line-Eingangsanschlüsse | XLR |
| Line-Ausgänge | 1 |
| Line-Ausgangsanschlüsse | XLR |
| Stromversorgung | 100 - 120V / 50 - 60Hz oder 200 - 240 V / 50 - 60Hz (automatische Umrechnung) |
| Stromversorgung | Schaltnetzteil |
| Betriebstemperatur | 0 - 40 °C |
| Relative Luftfeuchtigkeit | <80% (nicht kondensierend) |
| Gehäusematerial | 12 mm Sperrholz |
| Gehäuseoberfläche | Polyurea |
| Gehäusebauart | Bassreflex |
| Breite | 270 mm |
| Höhe | 457 mm |
| Tiefe | 290 mm |
| Gewicht | 10,5 kg |
