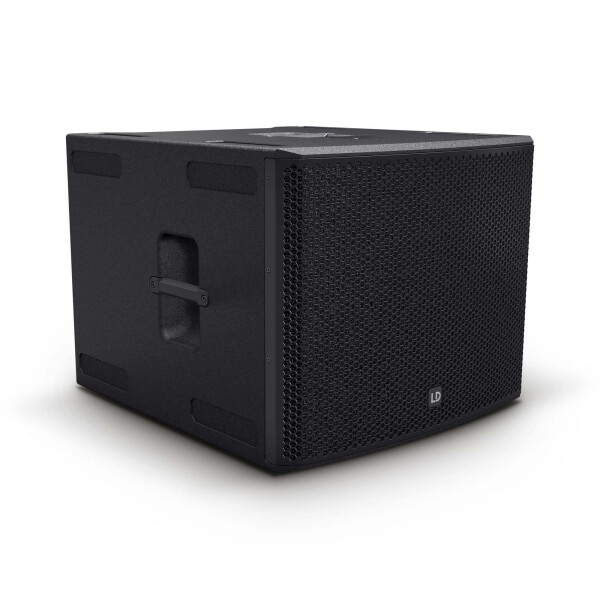

Active 18” bass reflex PA subwoofer

Active 18” Bass Reflex PA Subwoofer
135 dB max. SPL and 800 Watts RMS power through highly efficient digital amplifier

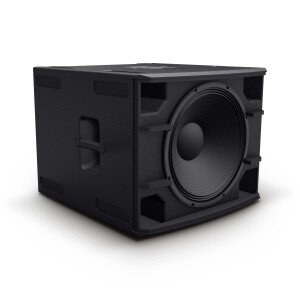

Deep bass down to 35 Hz thanks to 18” custom design woofer
Distortion-free sound even at the highest volumes thanks to DynX® DSP technology
80, 100 and 120 Hz low-pass presets
Presets for cardioid subwoofer array configurations

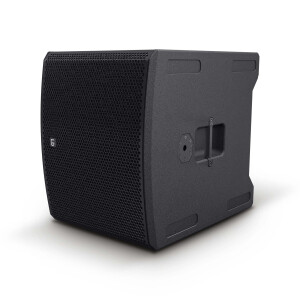

Can be used horizontally or vertically
18 mm birch plywood enclosure with ultra-durable polyurea coating

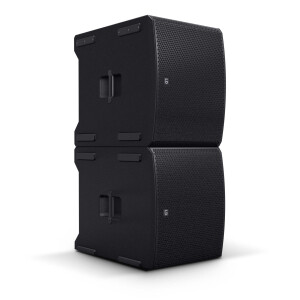

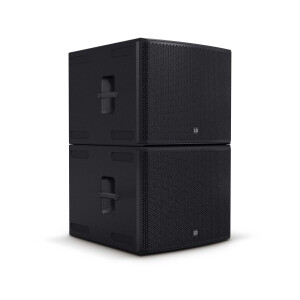

Easy handling thanks to ergonomic handles and stacking recesses
Impact-resistant front grille for optimal speaker protection

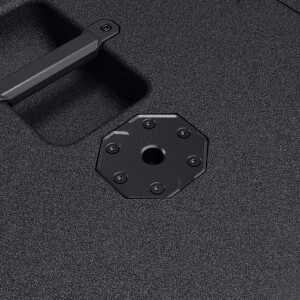

Insert for distance rods with M20 thread
Clever Transport accessories

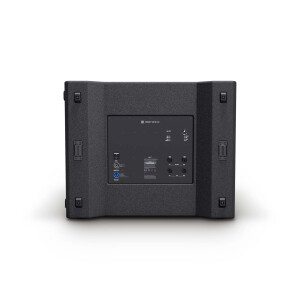

LD Systems STINGER SUB 18 A G3

Name: LD Systems STINGER SUB 18 A G3
Brand: LD Systems
SKU: 200130401
Price: 1270.00 EUR
Availability: InStock

Item No.: 200130401

1.270,00 €

pieces

incl. 19% VAT (Spedition)

In stock

Delivery time: 4 - 6 Workdays (DE - int. shipments may differ)

Payment Benefit:
Save 3% via bank transfer / advanced payment
Your price at checkout: 1.231,90 €

Description
Technische Daten

Product Information

Number of Woofers:

1
Woofer in Inches:

18
Performance According To Manufacturer:

1600W
Power Rms:

800W
Operating Mode:

Class D
Housing Material:

plywood
Bluetooth:

No
Dsp:

No

Product Description

This highly professional active subwoofer is engineered for absolute, long-lasting reliability. User-friendly presets enable lightning-fast system integration and cardioid array configuration. The STINGER® SUB 18 A G3 is powered by a highly efficient Class-D amplifier with a powerful 800 watts of continuous power. Its specially developed 18” woofer reproduces even the deepest bass frequencies with exceptional power and tight definition. Thanks to LD Systems’ proprietary DynX® DSP technology, the STINGER® SUB 18 A G3 delivers perfect low-bass performance with maximum distortion-free performance under all conditions. Designed as a true workhorse, the robustly braced bass-reflex enclosure is suitable for both horizontal and vertical installation. Constructed from sturdy 18 mm birch plywood, it features an extremely durable polyurea coating for exceptional stability and longevity. Features include a steel front grille, a threaded insert for M20 standoffs, stacking recesses, and ergonomic handles. The STINGER® SUB 18 A G3 is an attractively priced solution for professional sound reinforcement applications, and a wide range of accessories supports its use on stage and in permanent installations.

LD Systems STINGER SUB 18 G3 CB

138,50 €

incl. 19% VAT (Paket)

Available

Payment Benefit:
Save 3% via bank transfer / advanced payment
Your price at checkout: 1.231,90 €

LD Systems STINGER SUB 18 G3 PC

67,00 €

incl. 19% VAT (Paket)

Available

Payment Benefit:
Save 3% via bank transfer / advanced payment
Your price at checkout: 1.231,90 €

Produktart	PA Subwoofer
Typ	aktiv
Größe Tieftöner	18 "
Größe Tieftöner	457,2 mm
Magnet Tieftöner	Ferrit
Marke Tieftöner	Custom Made
Schwingspule Tieftöner	4 "
Schwingspule Tieftöner (mm)	101,6 mm
Verstärker	Class D
Leistung (RMS)	800 W
Leistung (Peak)	1600 W
Frequenzgang	35 - Low-Pass
Max. SPL (Peak)	135 dB
Schutzschaltungen	DC
Schutzschaltungen	Kurzschluss
Schutzschaltungen	Limiter
Schutzschaltungen	Überstrom
Eingangsimpedanz	30000 Ohm
Eingangsempfindlichkeit	0,3 V
Bedienelemente	Main Level
Bedienelemente	Mode
Anzeigeelemente	Limit
Anzeigeelemente	Mode
Anzeigeelemente	On
Anzeigeelemente	Protect (Schutzschaltung aktiv)
Anzeigeelemente	Signal

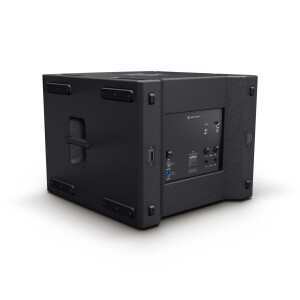

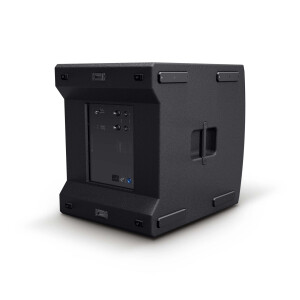

Line-Eingänge	2
Line-Eingangsanschlüsse	6,3 mm Klinke
Line-Eingangsanschlüsse	XLR
Line-Ausgänge	2
Line-Ausgangsanschlüsse	XLR
Stromversorgung	100 - 120V / 50 - 60Hz oder 200 - 240 V / 50 - 60Hz (automatische Umrechnung)
Stromversorgung	SMPS
Leistungsaufnahme (max.)	600 W
Betriebstemperatur	0 - 40 °C
Relative Luftfeuchtigkeit	<80% (nicht kondensierend)
Gehäusematerial	18 mm Sperrholz
Gehäuseoberfläche	Polyurea
Gehäusebauart	Bassreflex
Breite	677 mm
Höhe	547 mm
Tiefe	740 mm
Gewicht	42,6 kg
