Number of Woofers:1
-
Woofer in Inches:15
-
Performance According To Manufacturer:900W
-
Power Rms:450W
-
Operating Mode:Class D
-
Housing Material:plywood
-
Bluetooth:No
-
Dsp:No

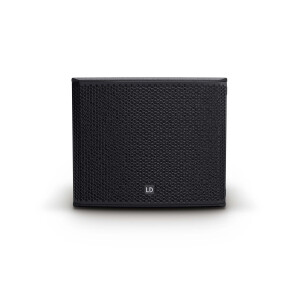

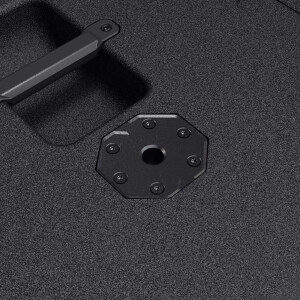

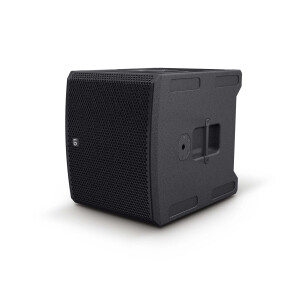

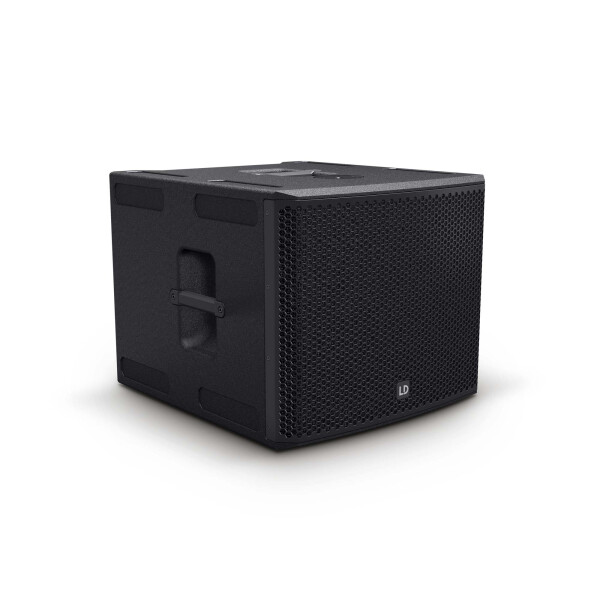

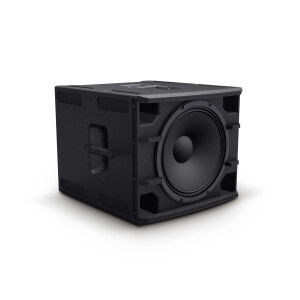

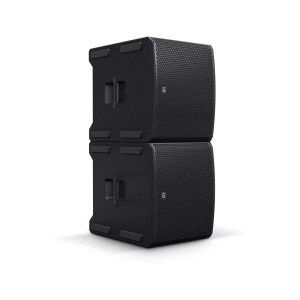

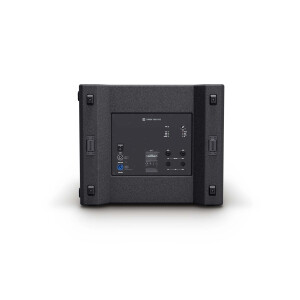

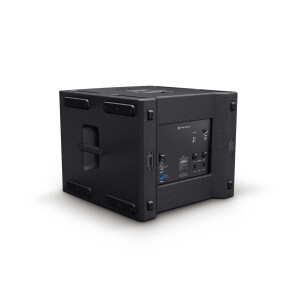

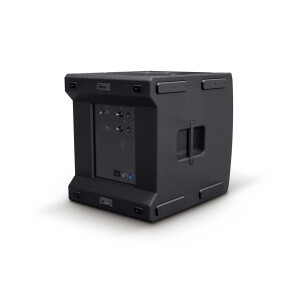

This highly professional active subwoofer is engineered for absolute, long-lasting reliability. User-friendly presets enable lightning-fast system integration and cardioid array configuration. The STINGER® SUB 15 A G3 is powered by a highly efficient Class-D amplifier with a robust 450 watts of continuous power. Its specially developed 15” woofer reproduces even the deepest bass frequencies with exceptional power and tight definition. Thanks to LD Systems’ proprietary DynX® DSP technology, the STINGER® SUB 15 A G3 delivers perfect low-bass performance with maximum distortion-free performance under all conditions. Designed as a true workhorse, the robustly braced bass-reflex enclosure is suitable for both horizontal and vertical installation. Constructed from sturdy 18 mm birch plywood, it features an extremely durable polyurea coating for exceptional stability and longevity. Features include a steel front grille, a threaded insert for M20 standoffs, stacking recesses, and ergonomic handles. The STINGER® SUB 15 A G3 is an attractively priced solution for professional sound reinforcement applications, and a wide range of accessories supports its use on stage and in permanent installations.
| Produktart | PA Subwoofer |
| Typ | Aktive |
| Größe Tieftöner | 15 " |
| Größe Tieftöner | 381 mm |
| Magnet Tieftöner | Ferrit |
| Marke Tieftöner | Custom Made |
| Schwingspule Tieftöner | 3 " |
| Schwingspule Tieftöner (mm) | 76,5 mm |
| Verstärker | Class D |
| Leistung (RMS) | 450 W |
| Leistung (Peak) | 900 W |
| Frequenzgang | 40 - Low-Pass |
| Max. SPL (Peak) | 133 dB |
| Schutzschaltungen | DC |
| Schutzschaltungen | Kurzschluss |
| Schutzschaltungen | Limiter |
| Schutzschaltungen | Überstrom |
| Eingangsimpedanz | 30000 Ohm |
| Eingangsempfindlichkeit | 0,3 V |
| Bedienelemente | Main Level |
| Bedienelemente | Mode |
| Anzeigeelemente | Limit |
| Anzeigeelemente | Mode |
| Anzeigeelemente | On |
| Anzeigeelemente | Protect (Schutzschaltung aktiv) |
| Anzeigeelemente | Signal |

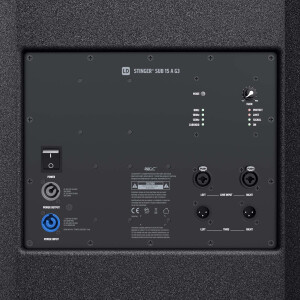

| Line-Eingänge | 2 |
| Line-Eingangsanschlüsse | 6,3 mm Klinke |
| Line-Eingangsanschlüsse | XLR |
| Line-Ausgänge | 2 |
| Line-Ausgangsanschlüsse | XLR |
| Stromversorgung | 100 - 120V / 50 - 60Hz oder 200 - 240 V / 50 - 60Hz (automatische Umrechnung) |
| Stromversorgung | SMPS |
| Leistungsaufnahme (max.) | 600 W |
| Betriebstemperatur | 0 - 40 °C |
| Relative Luftfeuchtigkeit | <80% (nicht kondensierend) |
| Gehäusematerial | 18 mm Sperrholz |
| Gehäuseoberfläche | Polyurea |
| Gehäusebauart | Bassreflex |
| Breite | 567 mm |
| Höhe | 477 mm |
| Tiefe | 624 mm |
| Gewicht | 31,9 kg |
Adam Hall GmbH, Adam-Hall-Str. 1, 61267 Neu-Anspach, Hessen, Deutschland, info@adamhall.com, https://www.ld-systems.com
