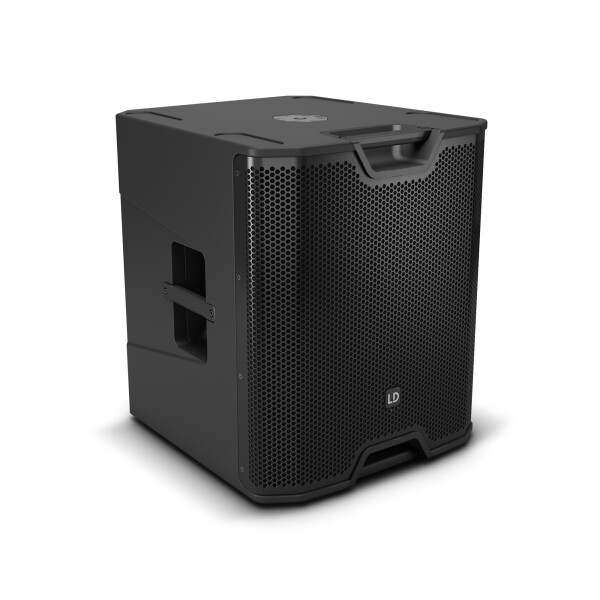

Aktiver 15" Bassreflex PA Subwoofer

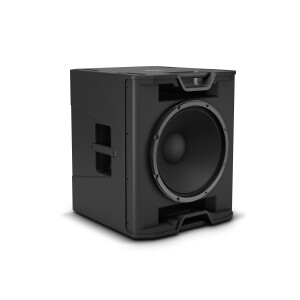

15-inch subwoofer for powerful deep bass down to 36 Hz
131 dB max. SPL and 1600 watts peak power thanks to a highly efficient digital Class D amplifier
Optimized bass reflex ports

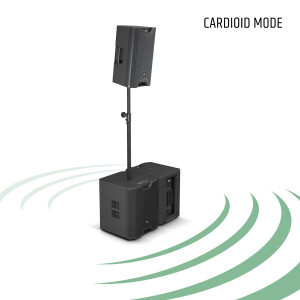

DynX DSP with four application presets (three crossover frequencies, cardioid mode)
Switchable signal polarity and adjustable line delay for up to 10 meters

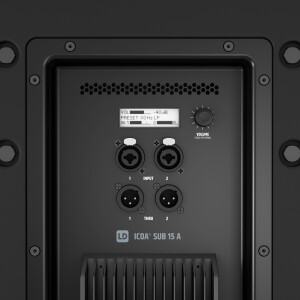

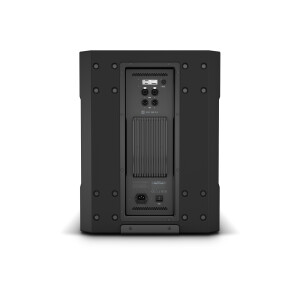

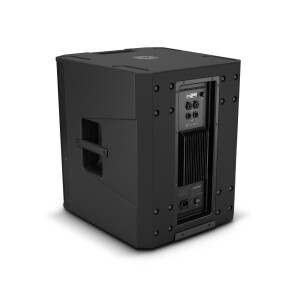

2 x combo input (jack/XLR), 2 x XLR output

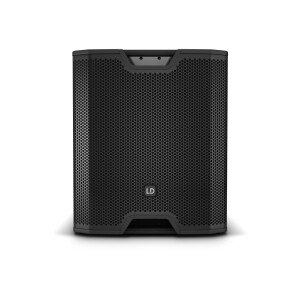

Sturdy 18 mm plywood enclosure with robust front grille

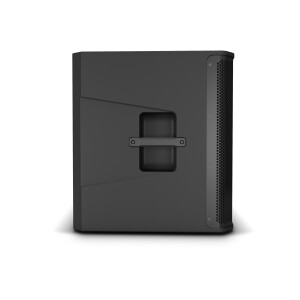

Easy handling thanks to four ergonomic aluminum handles with rubberized surface

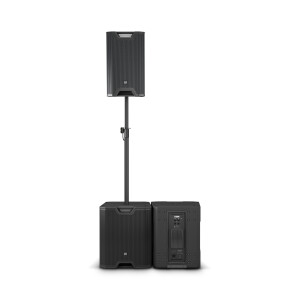

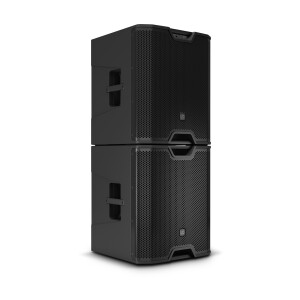

Secure stacking thanks to four recesses

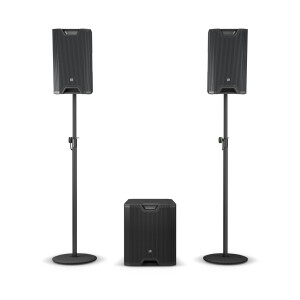

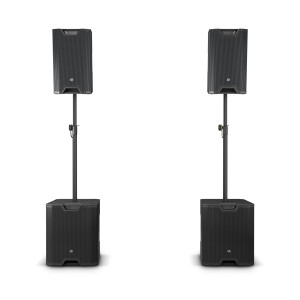

M20 thread for mounting a speaker pole

Description
Technische Daten

Music only truly grooves when the bass makes your gut vibrate. With the ICOA SUB, you get as much bass as you want to rock the crowd and fill the dance floor. Or to give your presentation the necessary impact. The ICOA SUB not only delivers a powerful punch of bass, but it also gives you greater volume reserves and a more transparent sound. This is because the subwoofer relieves the main speakers, whose woofers are now less affected by high-energy bass impulses. This means lower intermodulation distortion: even at higher volumes, nothing gets muddy. Vocals and instruments remain crystal clear. Thanks to its powerful Class D amplifier with 400 watts RMS or 1600 watts peak power, you have plenty of power at your disposal. Using the presets of the integrated DynX DSP, you can perfectly tailor the ICOA SUB to your system, as it offers three selectable crossover frequencies: 80, 100, and 120 Hz. You can also switch the signal polarity and set a delay line for distances up to 10 meters. As your demands increase and the venues get bigger, your setup can grow with you. Of course, it's possible to operate multiple ICOA SUBs in parallel, giving you even more power. Using two ICOA SUBs also unlocks the option of cardioid mode. Normally, a subwoofer radiates sound in all directions; however, if you point one of the two SUBs to the rear and activate the cardioid preset, the bass frequencies are directed forward in a controlled manner. This means defined bass pressure without any booming in the back. The robust 18mm plywood enclosures are stackable and have an M20 thread on the top for mounting the main speakers via a distance rod. For transport, you can attach casters to the back; a corner foot protects the edge during setup and takedown. And to prevent the ICOA SUB from slipping out of your hands during transport, the four aluminum handles are rubberized. Whether you're a DJ, singer-songwriter, rock band, or dance band, the ICOA SUB is the perfect bass enhancement for live music. But it's also ideal for lectures and multimedia presentations at conferences, because transparent sound with powerful bass ensures an impressive performance everywhere!

Category H-L:

LD Systems ICOA Subs
Number of Woofers:

1
Woofer in Inches:

15
Power Rms:

400W
Operating Mode:

Class D
Bluetooth:

No
Dsp:

No

Produktart	PA Subwoofer
Typ	Aktiv
Größe Tieftöner	15 "
Größe Tieftöner	381 mm
Magnet Tieftöner	Ferrit
Marke Tieftöner	Custom Made
Schwingspule Tieftöner	3 "
Schwingspule Tieftöner (mm)	76,5 mm
Verstärker	Class D
Leistung (RMS)	400 W
Leistung (Peak)	1600 W
Frequenzgang (-10dB)	36Hz Preset abhängig
Max. SPL (Peak)	131 dB
Schutzschaltungen	Excursion Limiter
Schutzschaltungen	Peak Limit
Schutzschaltungen	RMS Limiter
Schutzschaltungen	Überhitzung
Schutzschaltungen	Überspannung
Schutzschaltungen	Überstrom
Bedienelemente	Push-Encoder
Anzeigeelemente	LC-Display
Line-Eingänge	2
Line-Eingangsanschlüsse	XLR/6,3mm Klinke Kombibuchsen (symetrisch)
Line-Ausgänge	2
Line-Ausgangsanschlüsse	XLR
Stromversorgung	100 - 240 V
Leistungsaufnahme (max.)	675 W
Betriebstemperatur	0 - 40 °C
Relative Luftfeuchtigkeit	< 60 %, nicht kondensierend
Gehäusematerial	18 mm Multiplex
Gehäuseoberfläche	Strukturlack
Gehäusebauart	Bassreflex
Breite	510 mm
Höhe	598 mm
Tiefe	552 mm
Gewicht	32,5 kg
