RCF SUB 8004-AS

RCF SUB 8004-AS

RCF SUB 8004-AS

RCF SUB 8004-AS

RCF SUB 8004-AS

RCF SUB 8004-AS

Description

The SUB 8004-AS is one of the most powerful 18-inch subwoofers in professional sound reinforcement technology. Its hyperventilated 18-inch high-performance woofer with an internally/externally wound 4.5-inch voice coil delivers a powerful bass foundation.

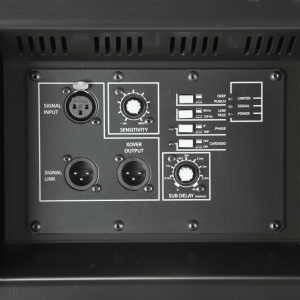

With a 1250-watt digital power amplifier module, the SUB 8004-AS is equipped for the most demanding tasks. The input control panel includes the volume control as well as switches for "deep/punch," high-pass filter, phase, cardioid preset, and delay.

Features

2500 watts peak power – 1250 watts continuous power (RMS)
136 dB maximum sound pressure level
Frequency response 30 Hz - 120 Hz
18-inch woofer, vented 4.0-inch voice coil
DSP-controlled input section with selectable presets
Delay control
Tour-ready birch plywood cabinet
Compatible with NXL 23-A (stackable)
Compatible with NXL 24-A (stackable)
Various configurations with HDL 10-A and HDL 20-A possible

Specifications

Frequency response: 30 Hz ÷ 120 Hz

Sound transducer

Woofer: 18'', 4.0'' v.c

Input/Output Section

Input signal: bal/unbal
Input sockets: XLR
Output connectors: XLR
Input sensitivity: -2 dBu/+4 dBu

Processor

High pass frequencies: 120 Hz
Low pass frequency: 90 Hz
Protection circuits: Thermal, RMS
Limiter: Fast Limiter
Control: Xover, Phase switch, Deep/Punch, Outuput Delay Settings, Cardioid

Power section

Total power: 2500 W peak, 1250 W RMS
Low frequencies: 2500 W peak, 1250 W RMS
Cooling: Convection
Connections: Powercon IN/OUT

Physical data

Color: Black

Size

Height: 700 mm / 27.56 inches
Width: 558 mm / 21.97 inches
Depth: 700 mm / 27.56 inches
Weight: 56 kg / 123.46 lbs

Category M-R:

RCF active subwoofers
Color:

black
Number of Woofers:

1
Performance According To Manufacturer:

2500W
Power Rms:

1250W
Speaker Equipment:

1x 18 inches
Dsp:

Yes
Active/Passive:

active

RCF SUB 8004-AS

SKU: 200121619

GTIN: 8024530010607

I'm sorry, not available at present

Item currently out of stock
