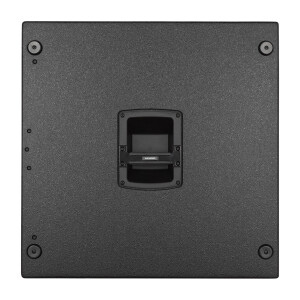

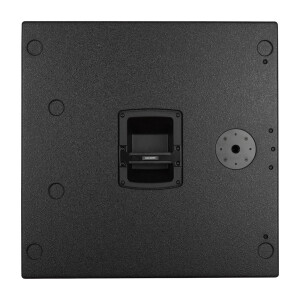

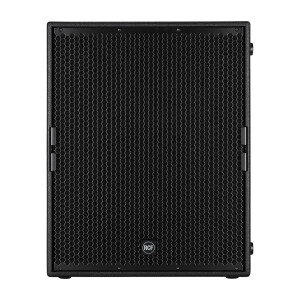

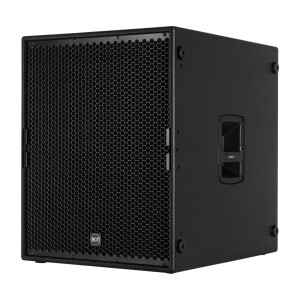

RCF SUB 9004-AS

RCF SUB 9004-AS

RCF SUB 9004-AS

RCF SUB 9004-AS

RCF SUB 9004-AS

RCF SUB 9004-AS

Description

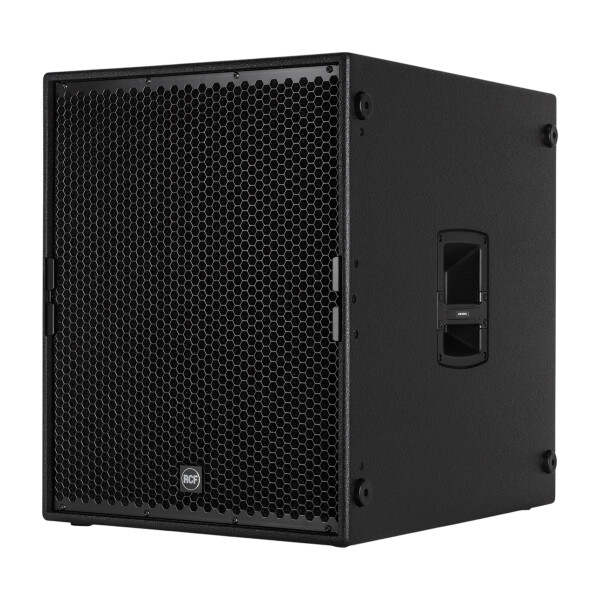

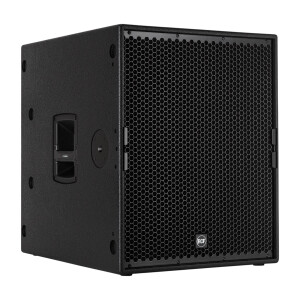

The SUB 9004-AS is a single 18” high power active subwoofer. It employs a state of the art transducer featuring a hypervented high power neodymium magnetic circuit with 4” voice coil. The extremely high power amplifier is a new design that delivers extended low frequency performance. Due to its rugged construction it is perfect for AV rental inventories.

Features

2800 W rated power
136 dB SPL
Frequency range: 30–400 Hz

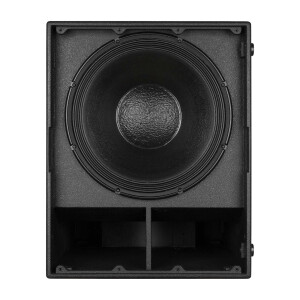

1 x 18" Hyperventilation neodymium subwoofer
DSP-controlled input section with selectable presets
RDNet remote monitoring and control
Delay control
Baltic birch cabinet

Specifications

Frequency response: 30 Hz & divide; 400 Hz
Max SPL @ 1m: 136 dB

Transducer

Woofer: 18'', 4'' v.c

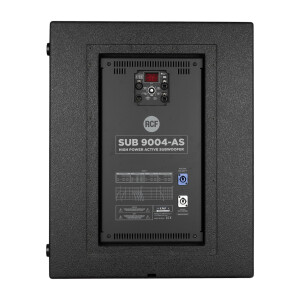

Input/Output Section

Input signal: bal/unbal
Input connectors: XLR, RDNet Ethercon
Output connectors: XLR, RDNet Ethercon
Input sensitivity: +4 dBu

Processor

Crossover frequency: 35 Hz, 50 Hz
Low-pass frequency: Variable from 50 Hz to 400 Hz
Protection circuits: Thermal, RMS
Limiter: Fast Limiter
Control: Gain, Eq., Preset Switch, Output Delay
RDNet: Yes

Power section

Total power: 2800 W peak, 1400 W RMS
Cooling: Forced
Connections: Powercon IN/OUT

Physical data

Housing material: Baltic birch plywood
Hardware: 2xM20

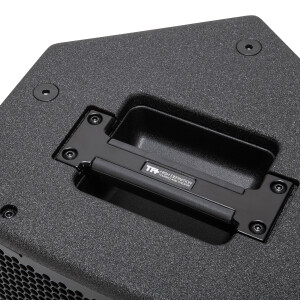

Handles: 2 Side

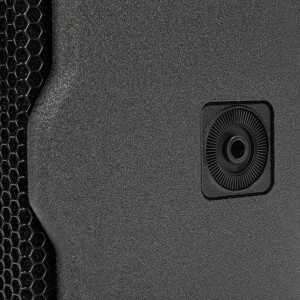

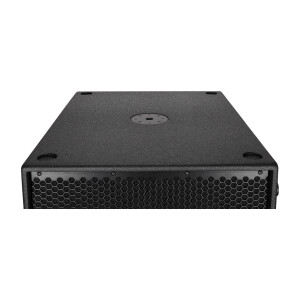

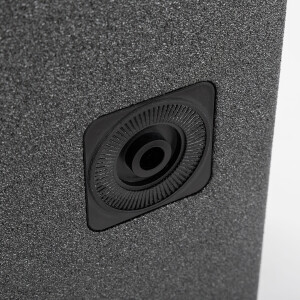

Pole Mount/Cap: M20 thread
Grid: Steel
Color: Black

Size

Height: 700 mm / 27.56 inches
Width: 558 mm / 21.97 inches
Depth: 700 mm / 27.56 inches
Weight: 57 kg / 125.66 lbs

Category M-R:

RCF active subwoofers
Color:

black
Number of Woofers:

1
Woofer in Inches:

18
Performance According To Manufacturer:

2800W
Power Rms:

1400W
Housing Material:

Wood
Bluetooth:

No
Dsp:

Yes
Steering:

RDnet
Active/Passive:

active

RCF SUB 9004-AS

SKU: 200129226

GTIN: 8024530015350

I'm sorry, not available at present

Price on request

RCF
