Description

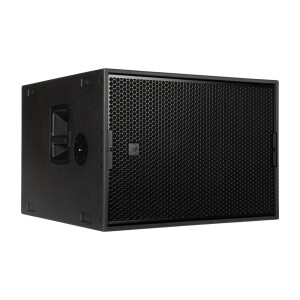

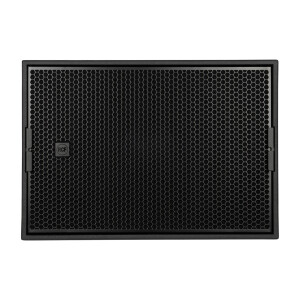

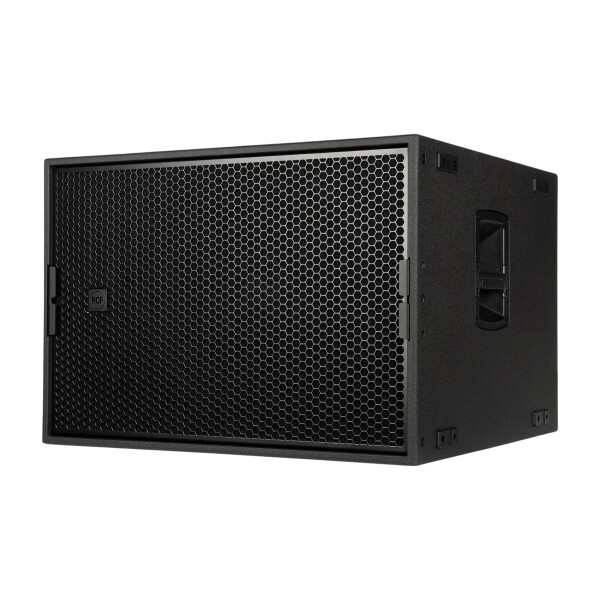

SUB 9019-AS is a high-performance 19" active subwoofer delivering up to 138 dB Max SPL, powered by a robust 4000W Class-D amplifier. Designed for rigorous touring, the SUB 9019-AS features a tour-ready, weatherproof cabinet with a durable Polyurea finish and a detachable front cart for easy transport. Control is precise with RDNet network management, offering adjustable EQ, delay, cardioid options, and tailored crossover presets for RCF speakers. Innovative contactless configuration via RDTap allows seamless setup even when the unit is unpowered, ensuring perfect integration every time. Despite its small footprint and lightweight cabinet , the SUB 9019-AS produces powerful yet articulate bass, remaining true to even the most subtle low-frequency variations.

Features

138 dB maximum sound pressure level
4000-watt Class-D power amplifier

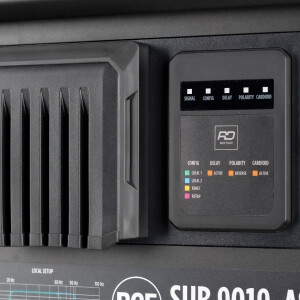

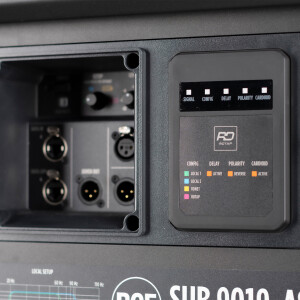

Contactless RDTap configuration
Includes rain cover for the connector panel
Control via RDNet
BMC, EQ, Delay, Cardioid configuration
ACE crossover presets for RCF speakers

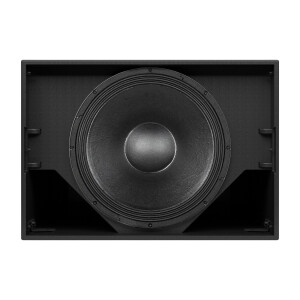

16-inch RCF Precision woofer with long throw
Removable front roller board (sold separately)
PowerCON TRUE1 TOP power connection

Specifications

Frequency response: 30 Hz & divide; 200 Hz
Max SPL @ 1m: 137 dB

Transducer

Woofer: 1 x 19'', 4'' v.c

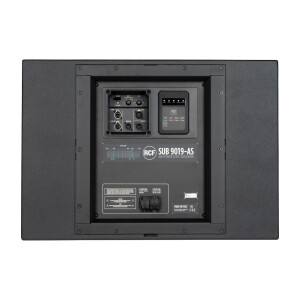

Input/Output Section

Input signal: bal/unbal
Input sockets: XLR, RDNet Ethercon
Output connections: XLR, RDNet Ethercon
Input sensitivity: -2 dBu/+4 dBu

Processor

Protection circuits: Thermal
Limiter: Soft Limiter
Control: MUTE, VOL, PRESETS, RDTAP
RDNet: Oneboard

Power section

Total power: 4000 W peak, 2000 W RMS
Cooling: Convection/Forced
Connections: Powercon TRUE1 TOP IN/OUT

Physical data

Housing material: Plywood
Hardware: 2xM20

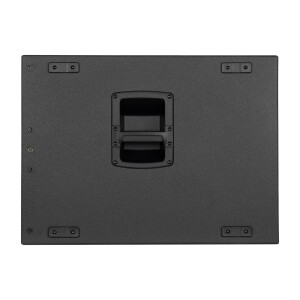

Handles: 1 handle per side

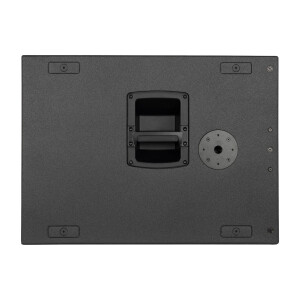

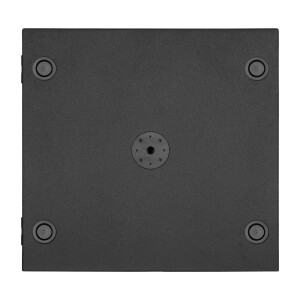

Pole Mount/Cap: M20 thread

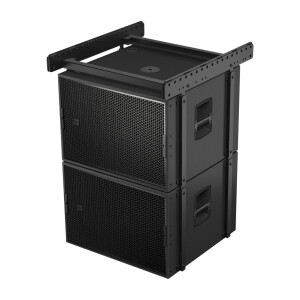

Grid: Steel
Color: Black

Size

Height: 533 mm / 20.98 inches
Width: 755 mm / 29.72 Inches
Depth: 713 mm / 28.07 inches
Weight: 53.4 kg / 117.73 lbs

Category M-R:

RCF active subwoofers
Color:

black
Number of Woofers:

1
Performance According To Manufacturer:

4000W
Power Rms:

2000W
Speaker Equipment:

1x 19 inches
Housing Material:

Wood
Steering:

RDnet | Bass motion control | ACE | RDTap
Active/Passive:

active

SUB 9019-AS

SKU: 200131379

GTIN: 8024530022679

I'm sorry, not available at present

Price on request

RCF
