Cardioid column PA: big sound, small setup

With the MAUI series, LD Systems redefined the mobile column PA. The third generation goes further: more bass, controlled forward dispersion and an all-in-one concept that is ready in minutes.

DJ set, acoustic gig, wedding or background music in a restaurant – MAUI G3 sounds powerful and clear, and its slim design blends into any setting.

All MAUI G3 models MAUI 11 G3 MIX

Acoustic duo playing outdoors with LD Systems MAUI G3

120° × 30°Dispersion horizontal × vertical

−18 dBColumn to the rear (100 Hz – 1 kHz)

−15 dBRear bass in cardioid setup

+6 dBBass with FOLLOWER subwoofer

up to 2,060 WPeak power

up to 127 dBMax. SPL (peak)

For every gig

Made for DJs, bands and events

Five scenarios, one system: MAUI G3 adapts to your gig – not the other way round.

DJ performing with LD Systems MAUI G3 on a rooftop terrace

Elegant and powerful

The ideal partner for DJs – slim on stage, punchy on the floor.

Set up, plug in, play

Sound, design and handling in one package.

Band using the MAUI G3 MIX with its built-in mixer

Mixer on board

The MIX models come with a built-in digital mixer.

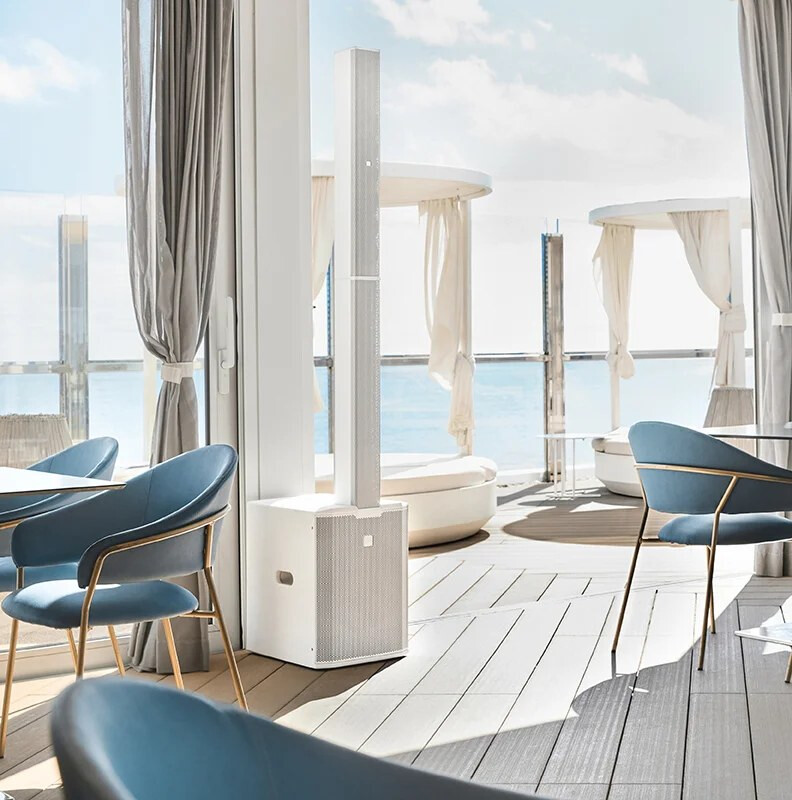

White LD Systems MAUI G3 providing background music in a lounge

Live & background

Elegant sound, quick to set up and pack away.

Live concert with LD Systems MAUI G3 in front of an audience

Compact, yet big

Precise, punchy sound from a small footprint.

The models

Four systems, two sizes

Every model is available in black and white. The MIX versions add a digital mixer with app control.

MAUI 11 G3

Portable: 2 × 8″ subwoofer, 1,460 W peak

View MAUI 11 G3

MAUI 11 G3 MIX

Portable, with 6-channel digital mixer

View MAUI 11 G3 MIX

MAUI 28 G3

More punch: 12″ subwoofer, 2,060 W peak

View MAUI 28 G3

MAUI 28 G3 MIX

More punch, with digital mixer

View MAUI 28 G3 MIX

Technology in detail

How the MAUI G3 sound is made

Seven reasons why the third generation sounds louder, deeper and more controlled.

System components

2 × 1″ tweeters on a curved waveguide – reaching the front row as well as the back.
Larger midrange drivers: 6 × 3.5″ (MAUI 11) or 12 × 3.5″ (MAUI 28) for a true full-range experience.
Completely new subwoofers: 2 × 8″ (MAUI 11) or 12″ (MAUI 28) for massive bass from a compact cabinet.

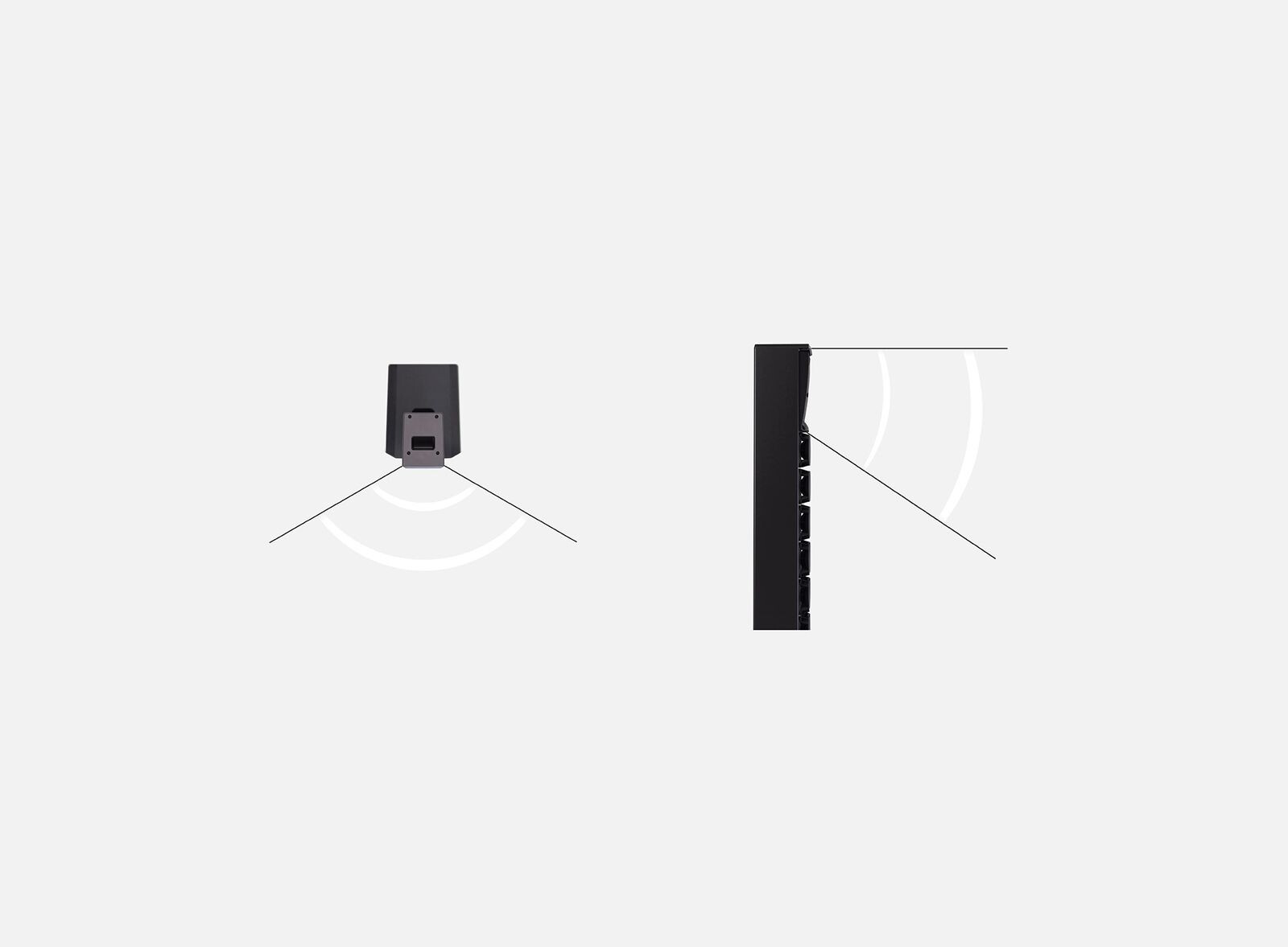

MAUI G3 dispersion: 120° horizontal and 30° vertical

120° × 30° dispersion

The line array arrangement and phase plugs on the midrange drivers deliver very wide, even coverage of 120° horizontally.

Vertically, the new waveguide focuses the sound to 30° – so it reaches the audience instead of the ceiling and floor.

Cardioid dispersion of the passive MAUI G3 column

Cardioid column

The two-piece passive column has been completely redesigned. Damping acoustic foam behind the drivers and precise cut-outs in the aluminum housing create a true cardioid pattern.

−18 dB to the rear between 100 Hz and 1 kHz
Controlled dispersion in the lower mid and midrange

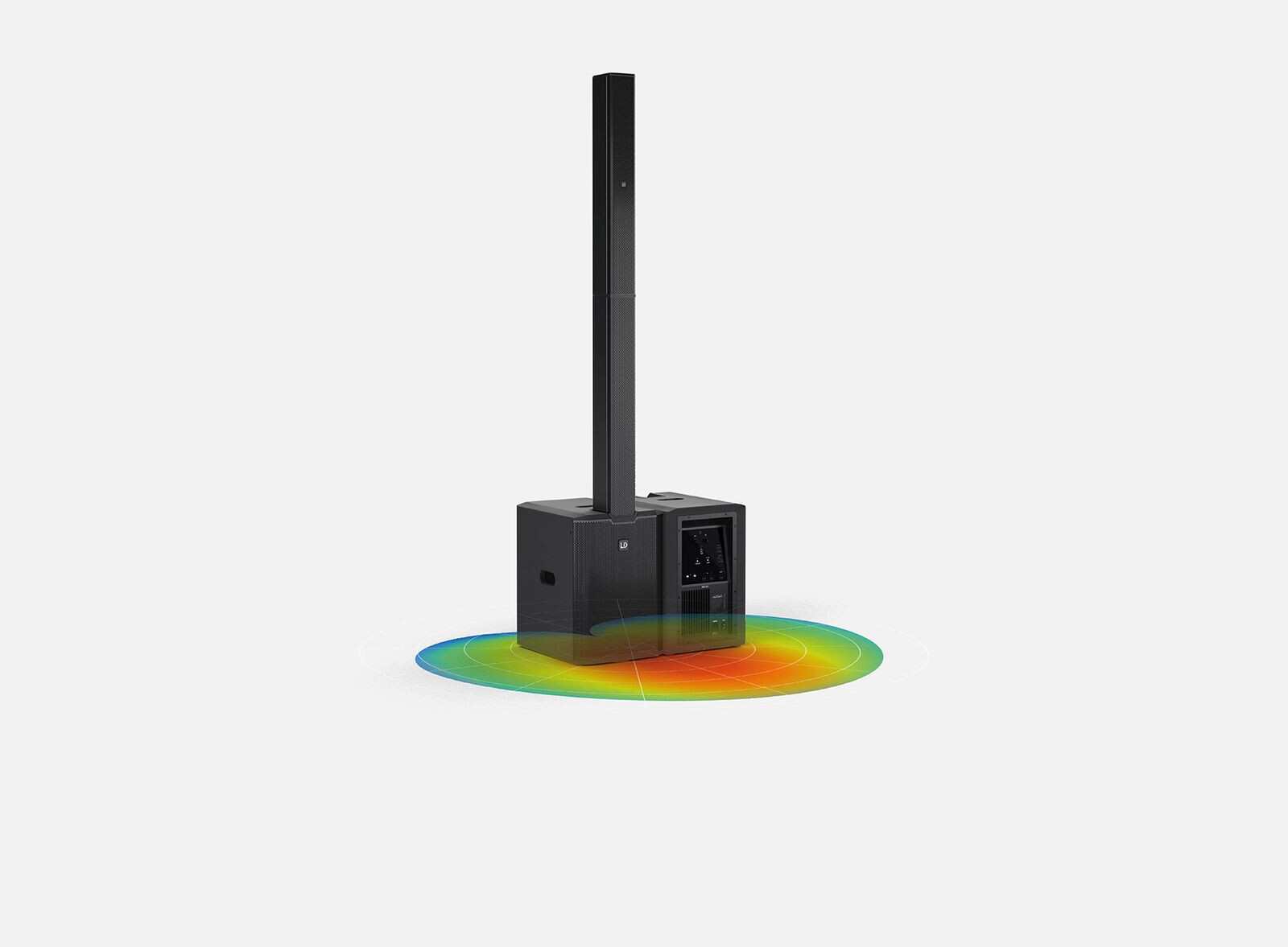

Cardioid subwoofer

Add a second subwoofer to build a cardioid setup: turn the FOLLOWER sub by 180°, press the cardioid button on the back – done.

−15 dB bass to the rear – less feedback and fewer phase cancellations
Up to +3 dB bass to the front – right where the audience stands

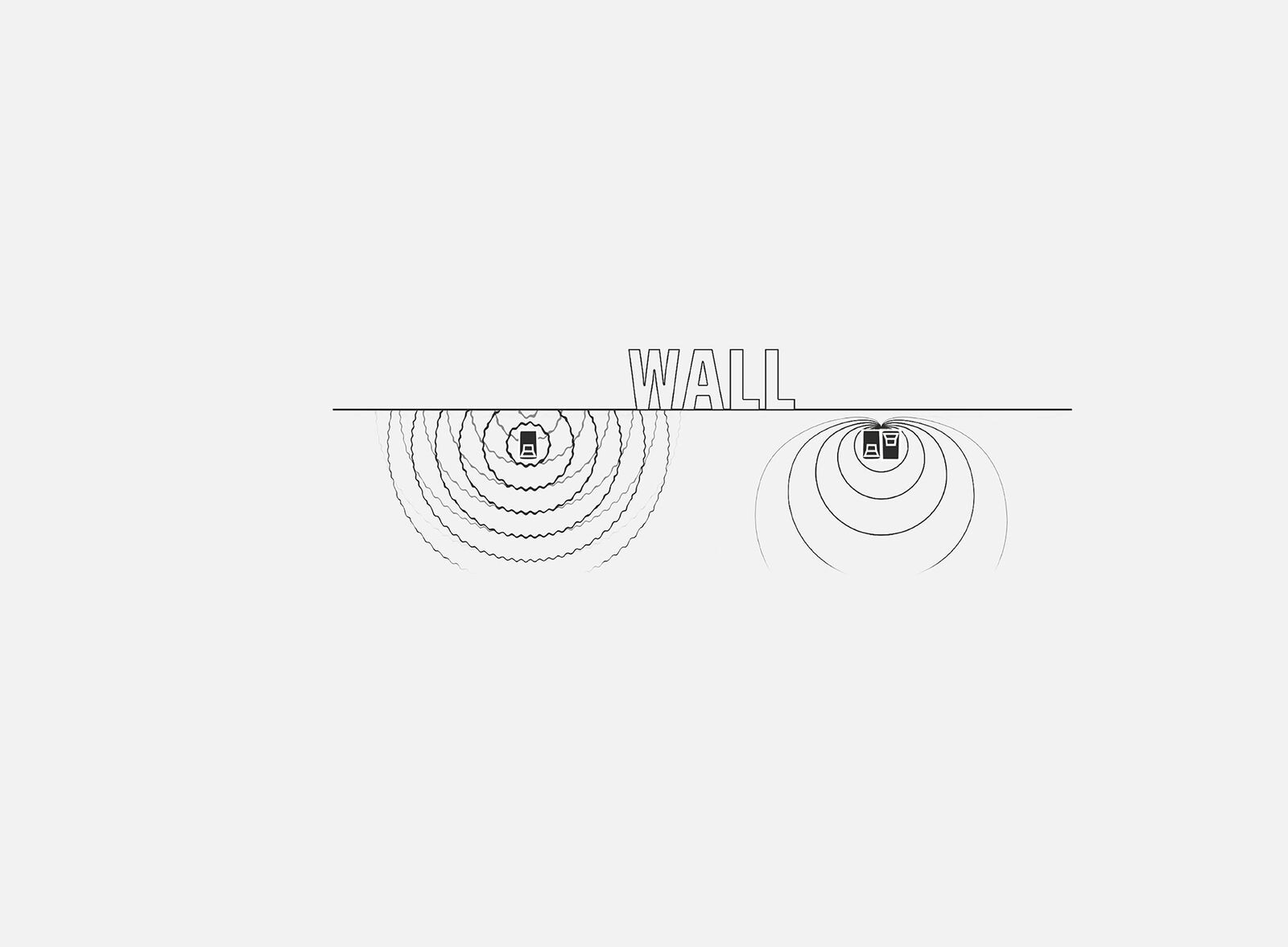

Benefits of cardioid sound with the MAUI G3

Cardioid benefits

Focus and clarity: the sound goes to the audience, while it gets quieter behind the speakers.
Protect your hearing: less sound on stage means less listening fatigue during long sets.
Small venues: when the PA stands close to a wall, cardioid prevents disturbing reflections.

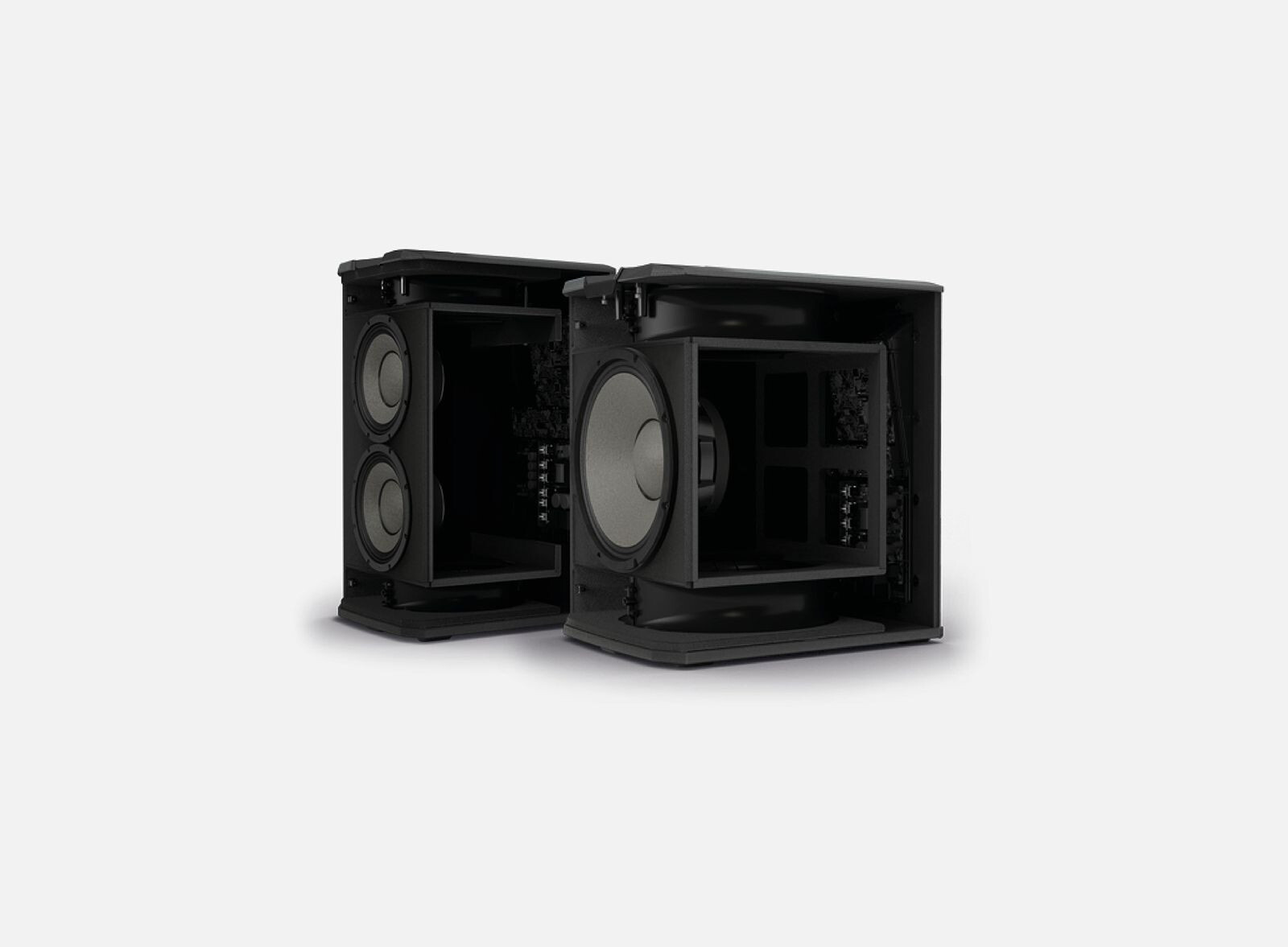

Deep bass

New acoustic design: the subwoofer is louder and goes deeper than its predecessor.
Elliptical bass reflex ports improve bass response and reduce port noise.
Die-cast aluminum basket for fast, precise bass reproduction.

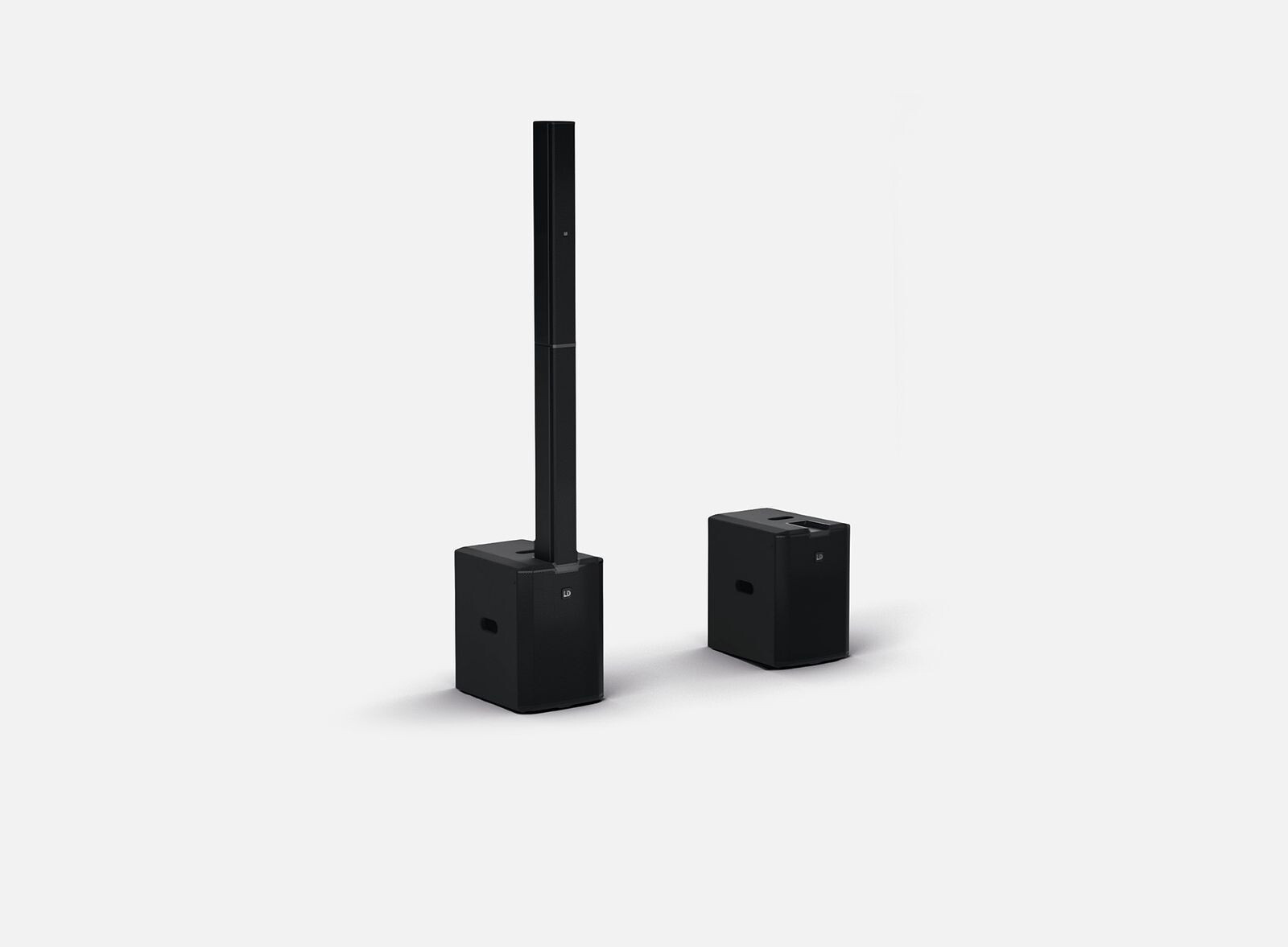

FOLLOWER subwoofer

+6 dB bass: place the FOLLOWER sub next to the MAIN system, facing the audience.
Cardioid at the push of a button: turn the sub by 180° and activate cardioid mode.
Automatic column detection: without a column, the sub switches to FOLLOWER mode and adjusts its DSP automatically.

MIX versions

Mixer on board, control via app

The MIX models turn the column PA into a complete sound machine – ideal for solo entertainers, singer-songwriters and small bands.

Digital mixer with effects built into the subwoofer (MAUI 11 G3 MIX: 6 channels)
MAUI G3 MIX app for smartphone and tablet: every PA setting at your fingertips
Easy mode with presets for a quick start
Expert mode with filters, attack and compressor for every channel

MAUI 11 G3 MIX MAUI 28 G3 MIX

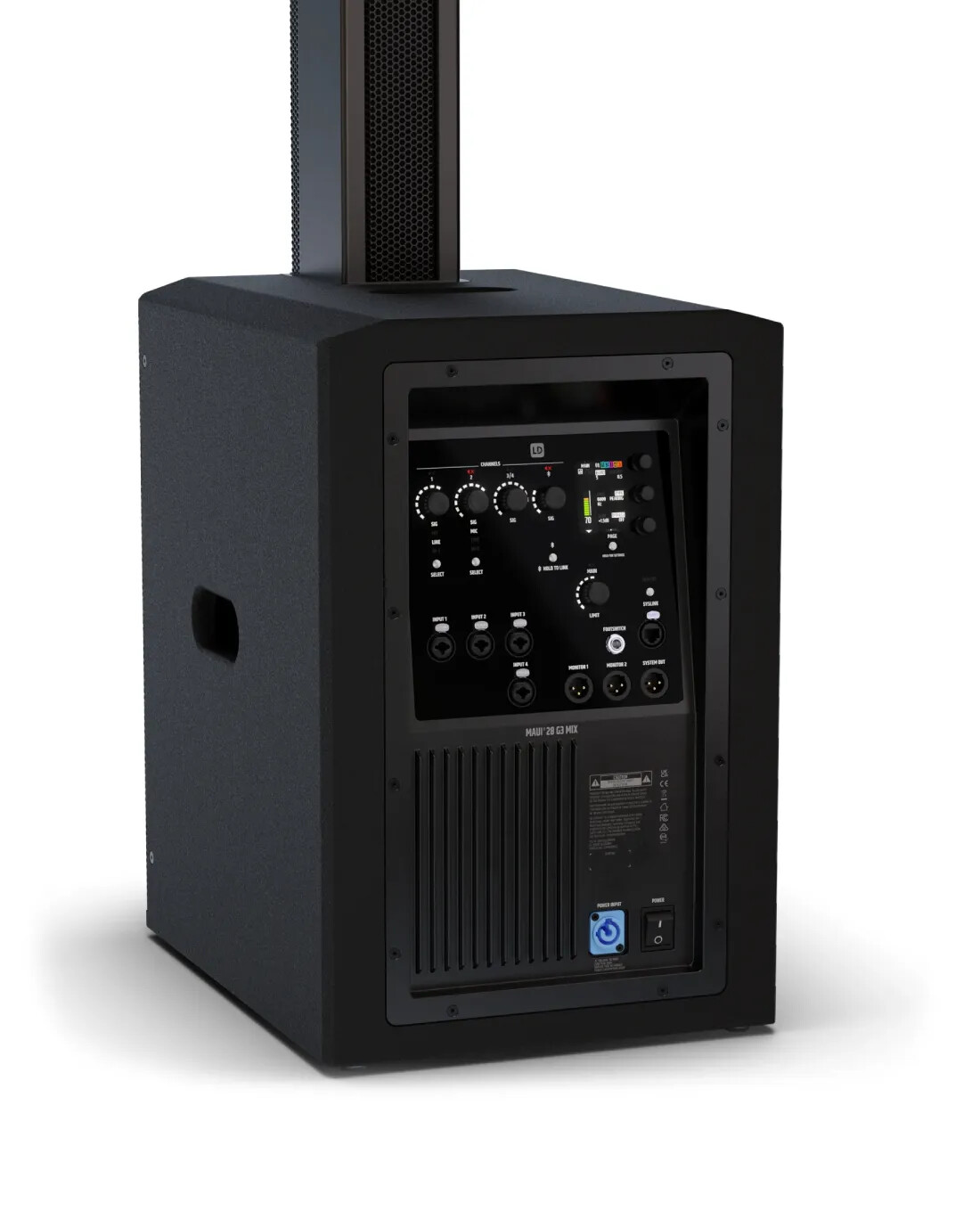

MAUI G3 MIX subwoofer with integrated digital mixer

Setups

From duo gig to party

The column sections simply plug together – no stand and no cable to the column.

Stereo

Two systems, two audio cables (XLR or jack), power – and you have a tidy, elegant setup.

Stereo + cardioid

Add a sub, press the cardioid button: −15 dB bass to the rear, up to +3 dB to the front.

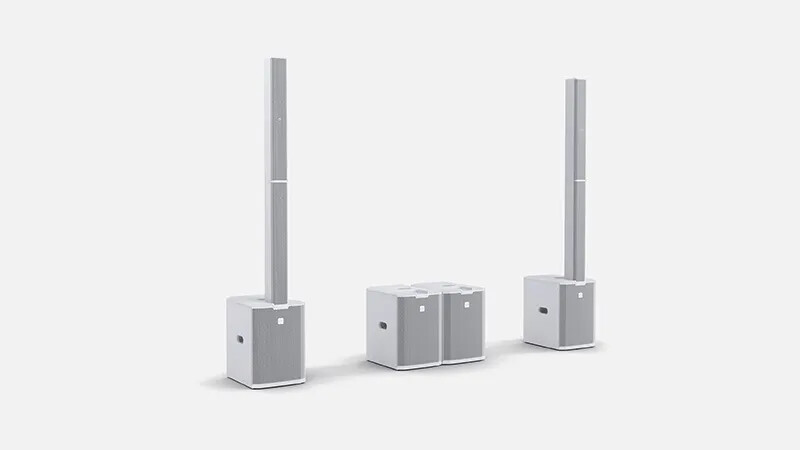

MAUI G3 stereo setup with bass boost from a second subwoofer

Stereo + bass boost

Double the subwoofers, double the punch: a second sub boosts the bass by +6 dB.

Watch the video

MAUI G3 MIX overview

LD Systems presents the features, setups and sound of the new generation.

Comparison

MAUI G3 compared

All four models at a glance – swipe sideways on smartphones.

	MAUI 11 G3	MAUI 11 G3 MIX	MAUI 28 G3	MAUI 28 G3 MIX
Peak power	1,460 W	1,460 W	2,060 W	2,060 W
Max. SPL (peak)	125 dB	125 dB	127 dB	127 dB
Subwoofer	2 × 8″	2 × 8″	12″	12″
Midrange	6 × 3.5″	6 × 3.5″	12 × 3.5″	12 × 3.5″
Tweeter	2 × 1″	2 × 1″	2 × 1″	2 × 1″
Dispersion	120° × 30°	120° × 30°	120° × 30°	120° × 30°
Digital mixer + app	–	✓ 6 channels	–	✓
Colors	Black / white	Black / white	Black / white	Black / white
