Category H-L:LD Systems Stage Monitors
-
Color:black
-
Woofer in Inches:12
-
Performance According To Manufacturer:1200W
-
Power Rms:300W
-
Vertical Beam Angle (Degrees):90
-
Beam Angle Horizontal (Degrees):50
-
Operating Mode:Class D

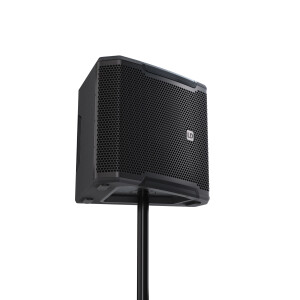

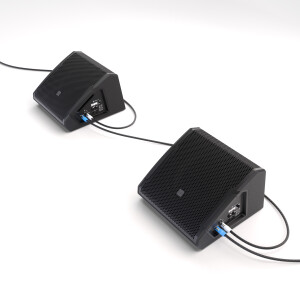

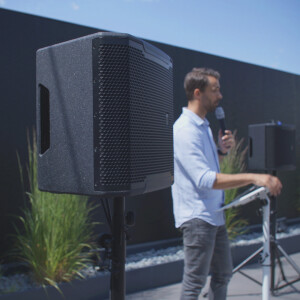

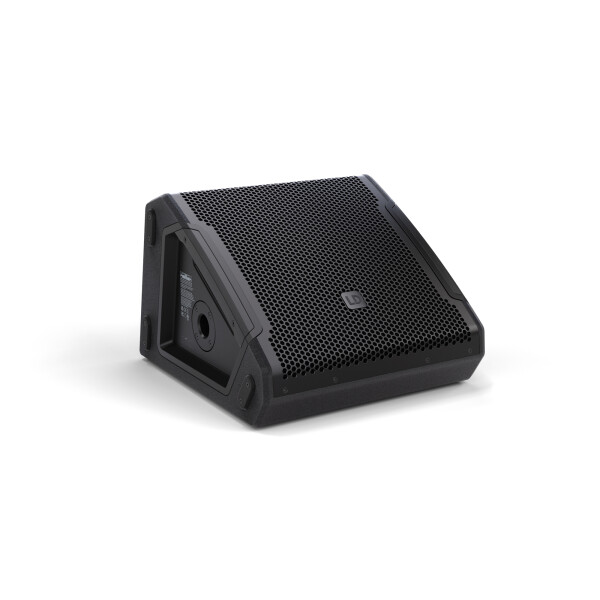

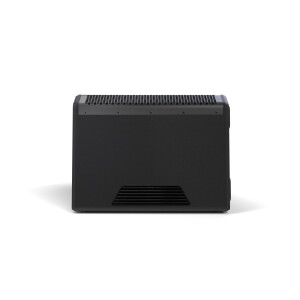

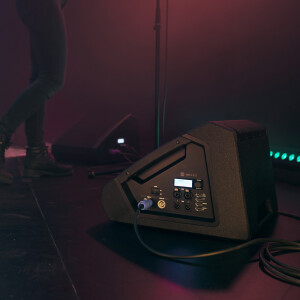

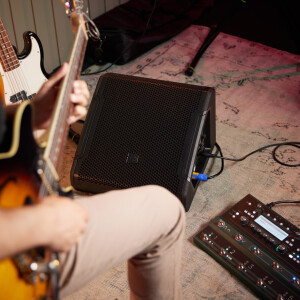

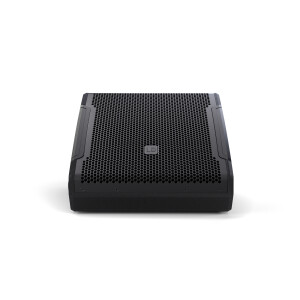

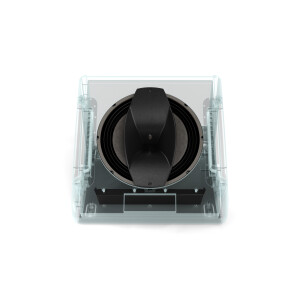

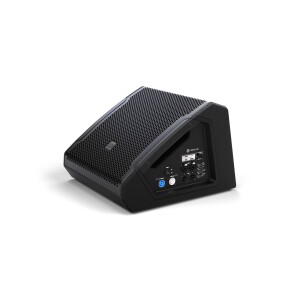

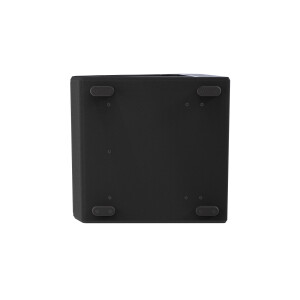

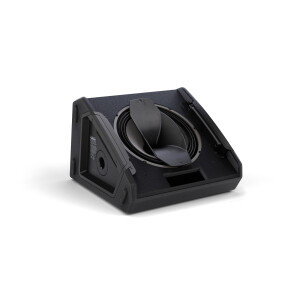

The MON 12 A G3 belongs to a completely redesigned family of active stage monitors built to meet high performance demands. The MON G3 series incorporates the advanced technology and high-quality materials found in high-end monitors primarily used in professional applications. This quality is now accessible to everyone. Features include advanced coaxial drivers with an integrated 50° x 90° CD horn, ensuring the acoustic ideal of a true point source and thus outstanding audio characteristics even at close listening distances. Added to this are high robustness, comprehensive features, and the elegant LD Systems design. For decades, 12"/1" stage monitors have been the gold standard when it comes to rich sound, sound pressure, and portability. With its coaxial design for a true point source, smart electronics, and high-quality design, the MON 12 A G3 brings this concept into the modern era. The ideal dispersion pattern of 50° x 90° in monitor mode and 90° x 50° in FOH mode makes it a versatile speaker that offers the right solution for a wide range of applications. Both the signal (XLR/TRS combo) and power connections (PowerCON compatible) can be looped through. This allows for elegant, tidy cabling in multi-monitor setups or distributed sound reinforcement systems.
Product Video: LD Systems MON 12 A G3
Discover the product LD Systems MON 12 A G3 in detail:
| Produktart | Bühnenmonitore |
| Typ | Aktiv |
| Farbe | Schwarz |
| Systemleistung (RMS) | 300 W |
| Systemleistung (Peak) | 1200 W |
| Max. SPL Average (Sine burst) | 120 dB (100 Hz - 12 kHz, fullspace @1m, 10% THD) |
| Max. SPL Peak (Sine burst) | 127 dB (fullspace @1m, 10% THD) |
| Frequenzbereich (-3 dB) | 68 - 18000 Hz |
| Frequenzbereich (-10dB) | 55 - 20000 Hz |
| Übergangsfrequenz | 1400 Hz |
| Monitorwinkel | 33° |
| Abstrahlwinkel (H x V) | 50° x 90° |
| Breite | 425 mm |
| Tiefe | 453 mm |
| Höhe | 315 mm |
| Features | 3 Band-EQ (High,Mid,Low) |
| Features | 4 Anwendungs-Presets |
| Features | Delay Line |
| Features | Notch Filter |
| Gewicht | 17,4 kg |
Tieftöner
| Größe Tieftöner | 12 " |
| Größe Tieftöner | 304,8 mm |
| Magnet Tieftöner | Ferrit |
| Marke Tieftöner | Custom Made |

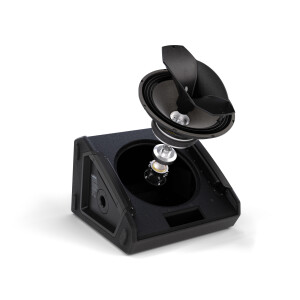

| Tieftöner Typ | Koaxial Lautsprecher |
| Schwingspule Tieftöner | 2,5 " |
| Schwingspule Tieftöner (mm) | 65 mm |
| Gehäusebauart | Bassreflex |
| Gehäusematerial | 15 mm Birkensperrholz |
| Gehäusematerial | 15 mm MDF |
HF
| Horn | CD Horn |
| Größe Hochtöner | 1 " |
| Größe Hochtöner | 25,4 mm |
| Magnet Hochtöner | Ferrit |
| Marke Hochtöner | Custom Made |
| Schwingspule Hochtöner | 1,75 " |
| Schwingspule Hochtöner | 44,45 mm |
Verstärkermodul (integriert)
| Verstärker | Class D |
| Schutzschaltungen | Multiband Limiter |
| Schutzschaltungen | Überhitzung |
| Schutzschaltungen | Überspannung |
| Schutzschaltungen | Überstrom |
| Betriebstemperatur | 0 - 40 °C |
| Feuchtigkeitsbereich | < 80 % ( nicht kondensierend ) |
| Sicherung | T4AL 250 V |

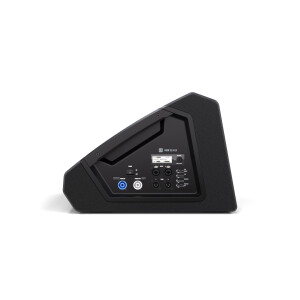

| Bedienelemente | Dreh-Drück Encoder |
| Bedienelemente | Ein- / Ausschalter |
| Anzeige | LC-Display |
| Stromversorgung | SMPS |
| Betriebsspannung | 100 V AC - 240 V AC / 50 - 60 Hz |
| Leistungsaufnahme | 150 W |

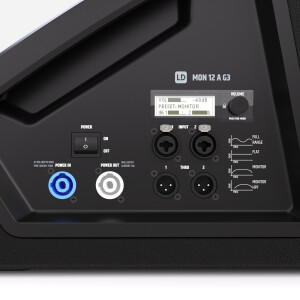

| Stromeingang/- ausgang | PowerCON kompatibel |
| Line-Eingänge | 2 |
| Line-Eingangsanschlüsse | 6,3 mm Klinke |
| Line-Eingangsanschlüsse | XLR - Combo |
| Line Durchgang | 2 |
| Line Durchgangsanschluss | XLR |
