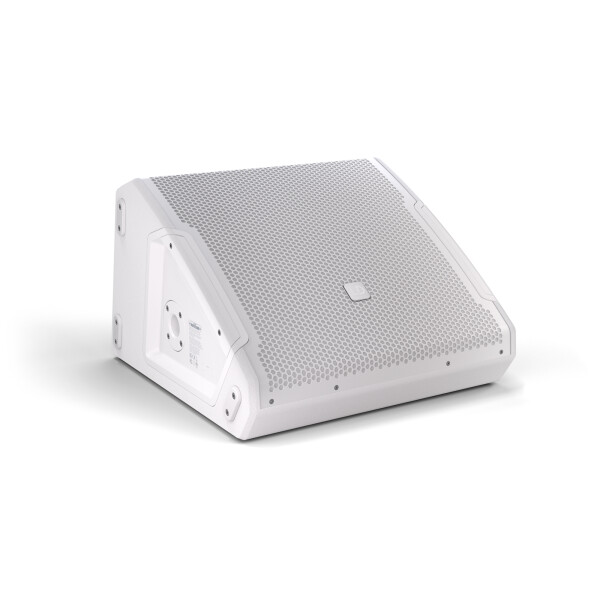

15" active coaxial stage monitor, white

Compact and powerful stage monitor with high-quality technology
Class-D amplifier with 300 W RMS/1200 W peak and 129 dB max. SPL

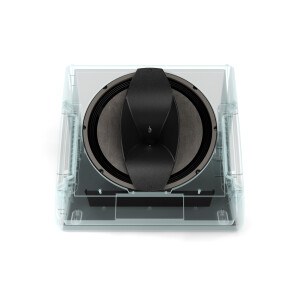

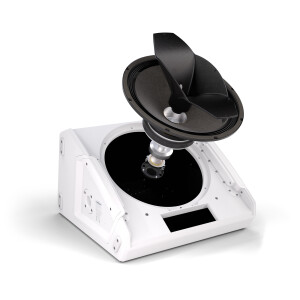

Coaxial design for a true point source with a 1.75" titanium diaphragm RF driver
15" woofer with 3" voice coil
Optimized, practical dispersion characteristics thanks to a 50° x 90° CD horn
DynX® DSP (Gen. 2) for distortion-free reproduction even at maximum volume
3-band EQ, notch filter, 4 application presets and delay function

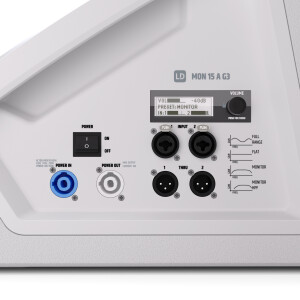

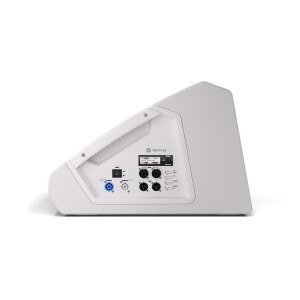

PowerCON-compatible, loop-through, professional power connector

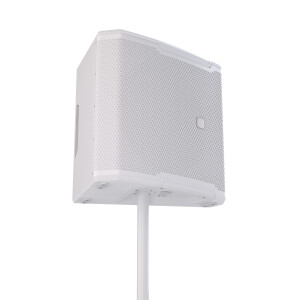

35 mm stand mount for FOH applications

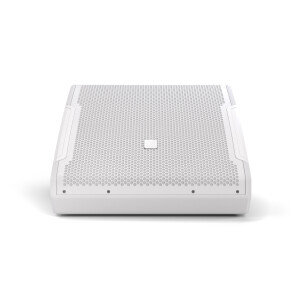

Durable polyurea coating and robust Front grille

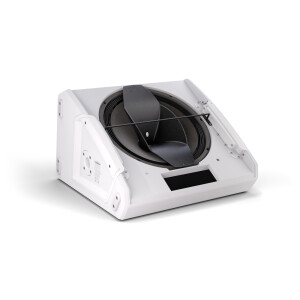

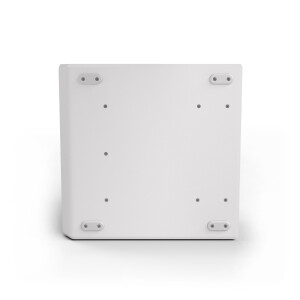

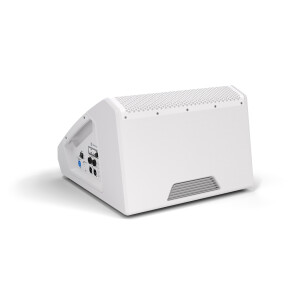

LD Systems MON 15 A G3 W

Name: LD Systems MON 15 A G3 W
Brand: LD Systems
SKU: 200130529
Price: 559.00 EUR
Availability: InStock

Item No.: 200130529

559,00 €

pieces

incl. 19% VAT (Paket)

In stock

Delivery time: 3 - 5 Workdays (DE - int. shipments may differ)

Payment Benefit:
Save 3% via bank transfer / advanced payment
Your price at checkout: 542,23 €

Description
Technische Daten

Product Information

Category H-L:

LD Systems Stage Monitors
Color:

white
Woofer in Inches:

15
Performance According To Manufacturer:

1200W
Power Rms:

300W
Vertical Beam Angle (Degrees):

90
Beam Angle Horizontal (Degrees):

50
Operating Mode:

Class D

Product Description

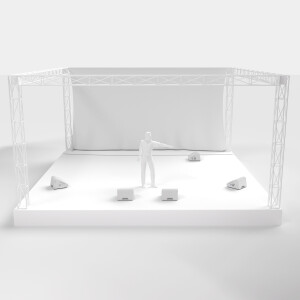

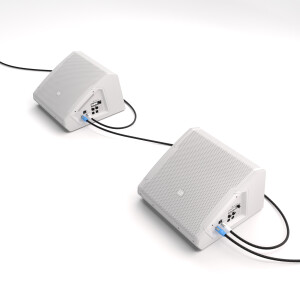

The MON 15 A G3 W belongs to a completely redesigned family of active stage monitors built to meet high performance demands. The MON G3 series incorporates the advanced technology and high-quality materials typically found in high-end monitors used primarily in professional settings. This quality is now accessible to everyone. Features include advanced coaxial drivers with an integrated 50° x 90° CD horn, ensuring the acoustic ideal of a true point source and thus outstanding audio characteristics even at close listening distances. Added to this are its robust construction, comprehensive features, and elegant LD Systems design. With a maximum sound pressure level of 129 dB and impressive bass performance, the MON 15 A G3 W is ideal for loud band stages, as a drum fill, or as a compact, stand-alone front-of-house PA system without the need for an additional subwoofer. Even with its impressive performance, the compact and elegant 15" stage monitor blends harmoniously into any stage design. Both the signal (XLR/TRS combo) and power connections (PowerCON compatible) can be looped through. This allows for elegant, tidy cabling in multi-monitor setups or distributed sound reinforcement systems.

LD Systems MON 15 G3 PC

58,70 €

incl. 19% VAT (Paket)

Available

Payment Benefit:
Save 3% via bank transfer / advanced payment
Your price at checkout: 542,23 €

Produktart	Bühnenmonitore
Typ	Aktiv
Farbe	Weiß
Systemleistung (RMS)	300 W
Systemleistung (Peak)	1200 W
Max. SPL Average (Sine burst)	122 dB (100 Hz - 12 kHz, fullspace @1m, 10% THD)
Max. SPL Peak (Sine burst)	129 dB (fullspace @1m, 10% THD)
Frequenzbereich (-3 dB)	58 - 18000 Hz
Frequenzbereich (-10dB)	48 - 20000 Hz
Übergangsfrequenz	1300 Hz
Monitorwinkel	33°
Abstrahlwinkel (H x V)	50° x 90°
Breite	505 mm
Tiefe	517 mm
Höhe	340 mm
Features	3 Band-EQ (High,Mid,Low)
Features	4 Anwendungs-Presets
Features	Delay Line
Features	Notch Filter
Gewicht	23,15 kg

Tieftöner

Größe Tieftöner	15 "
Größe Tieftöner	381 mm
Magnet Tieftöner	Ferrit
Marke Tieftöner	Custom Made
Tieftöner Typ	Koaxial Lautsprecher
Schwingspule Tieftöner	3 "
Schwingspule Tieftöner (mm)	75 mm
Gehäusebauart	Bassreflex
Gehäusematerial	15 mm MDF
Gehäusematerial	18 mm Birkensperrholz

HF

Horn	CD Horn
Größe Hochtöner	1 "
Größe Hochtöner	25,4 mm
Magnet Hochtöner	Ferrit
Marke Hochtöner	Custom Made
Schwingspule Hochtöner	1,75 "
Schwingspule Hochtöner	44,45 mm

Verstärkermodul (integriert)

Verstärker	Class D
Schutzschaltungen	Multiband Limiter
Schutzschaltungen	Überhitzung
Schutzschaltungen	Überspannung
Schutzschaltungen	Überstrom
Betriebstemperatur	0 - 40 °C
Feuchtigkeitsbereich	< 80 % ( nicht kondensierend )
Sicherung	T4AL 250 V
Bedienelemente	Dreh-Drück Encoder
Bedienelemente	Ein- / Ausschalter
Anzeige	LC-Display
Stromversorgung	SMPS
Betriebsspannung	100 V AC - 240 V AC / 50 - 60 Hz
Leistungsaufnahme	150 W
Stromeingang/- ausgang	PowerCON kompatibel
Line-Eingänge	2
Line-Eingangsanschlüsse	6,3 mm Klinke
Line-Eingangsanschlüsse	XLR - Combo
Line Durchgang	2
Line Durchgangsanschluss	XLR
