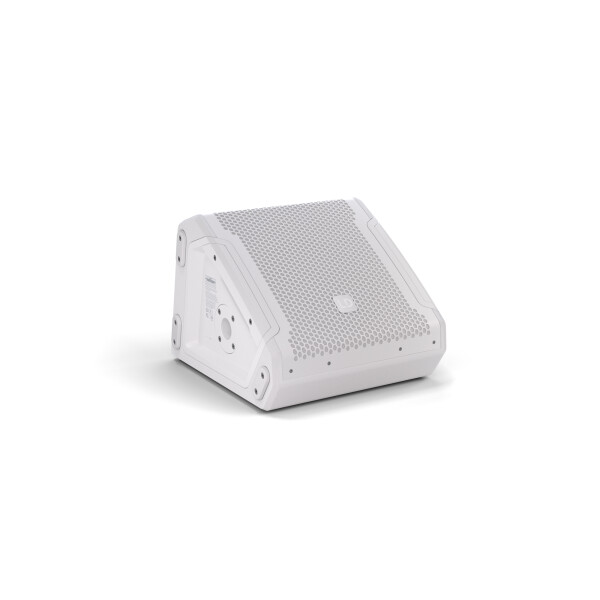

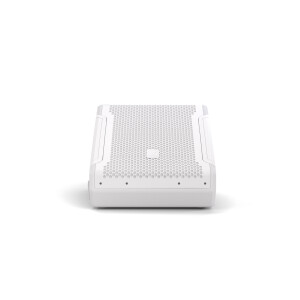

LD Systems MON 8 A G3 W

Name: LD Systems MON 8 A G3 W
Brand: LD Systems
SKU: 200130533
Price: 385.00 EUR
Availability: OutOfStock

Item No.: 200130533

385,00 €

pieces

incl. 19% VAT (Paket)

Notify me when available

Out of Stock

Description
Technische Daten

Product Information

Category H-L:

LD Systems Stage Monitors
Color:

white
Woofer in Inches:

8
Performance According To Manufacturer:

1200W
Power Rms:

300W
Vertical Beam Angle (Degrees):

90
Beam Angle Horizontal (Degrees):

50
Operating Mode:

Class AB

Product Description

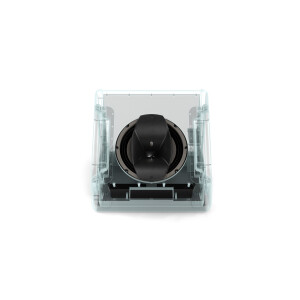

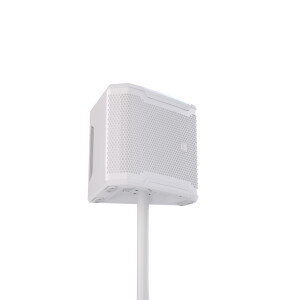

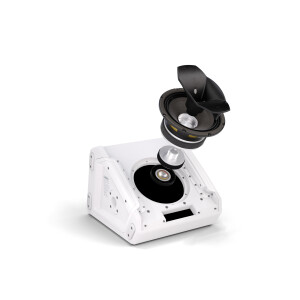

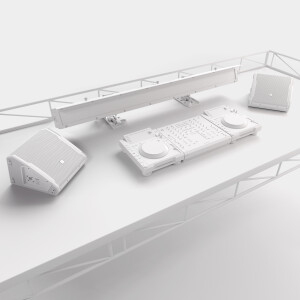

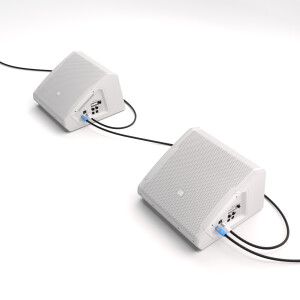

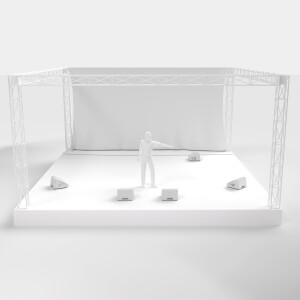

The MON 8 A G3 W belongs to a completely redesigned family of active stage monitors built to meet high performance demands. The MON G3 series incorporates the advanced technology and high-quality materials typically found in high-end monitors used primarily in professional applications. This quality is now accessible to everyone. Features include advanced coaxial drivers with an integrated 50° x 90° CD horn, ensuring the acoustic ideal of a true point source and thus outstanding audio characteristics even at close listening distances. Added to this are its robust construction, comprehensive features, and elegant LD Systems design. As the smallest member of the new stage monitor family, the MON 8 A G3 W is particularly discreet and versatile: it can be used as a stage monitor, in a DJ setup, on a speaker stand as a front-of-house speaker, as a satellite in 2.1 systems, or as a delay line speaker. The MON 8 A G3 W offers an unusually deep frequency response for its size, extending down to 59 Hz, and thus delivers full-range sound. Both the signal (XLR/TRS combo) and power connections (PowerCON compatible) can be daisy-chained. This allows for elegant, tidy cabling in multi-monitor setups or distributed sound reinforcement systems.

Produktart	Bühnenmonitore
Typ	Aktiv
Farbe	Weiß
Systemleistung (RMS)	300 W
Systemleistung (Peak)	1200 W
Max. SPL Average (Sine burst)	116 dB ( 100Hz - 12 kHz, fullspace @1m, 10% THD )
Max. SPL Peak (Sine burst)	121 dB ( fullspace @1m, 10% THD )
Frequenzbereich (-3 dB)	68 - 18000 Hz
Frequenzbereich (-10dB)	59 - 20000 Hz
Übergangsfrequenz	2500 Hz
Monitorwinkel	33°
Abstrahlwinkel (H x V)	50° x 90°
Breite	340 mm
Tiefe	368 mm
Höhe	278 mm
Features	3 Band-EQ (High,Mid,Low)
Features	4 Anwendungs-Presets
Features	Delay Line
Features	Notch Filter
Gewicht	13,2 kg

Tieftöner

Größe Tieftöner	8 "
Größe Tieftöner	203,2 mm
Magnet Tieftöner	Ferrit
Marke Tieftöner	Custom Made
Tieftöner Typ	Koaxial Lautsprecher
Schwingspule Tieftöner	2,5 "
Schwingspule Tieftöner (mm)	65 mm
Gehäusebauart	Bassreflex
Gehäusematerial	15 mm Birkensperrholz
Gehäusematerial	15 mm MDF

HF

Horn	CD Horn
Größe Hochtöner	1 "
Größe Hochtöner	25,4 mm
Magnet Hochtöner	Ferrit
Marke Hochtöner	Custom Made
Schwingspule Hochtöner	1,75 "
Schwingspule Hochtöner	44,45 mm

Verstärkermodul (integriert)

Verstärker	Class D
Schutzschaltungen	Multiband Limiter
Schutzschaltungen	Überhitzung
Schutzschaltungen	Überspannung
Schutzschaltungen	Überstrom
Betriebstemperatur	0 - 40 °C
Feuchtigkeitsbereich	< 80 % ( nicht kondensierend )
Sicherung	T4AL 250 V
Bedienelemente	Dreh-Drück Encoder
Bedienelemente	Ein- / Ausschalter
Anzeige	LC-Display
Stromversorgung	SMPS
Betriebsspannung	100 V AC - 240 V AC / 50 - 60 Hz
Leistungsaufnahme	150 W

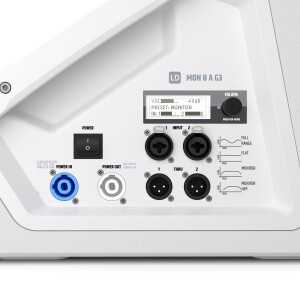

Stromeingang/- ausgang	PowerCON kompatibel
Line-Eingänge	2
Line-Eingangsanschlüsse	6,3 mm Klinke
Line-Eingangsanschlüsse	XLR - Combo
Line Durchgang	2
Line Durchgangsanschluss	XLR
