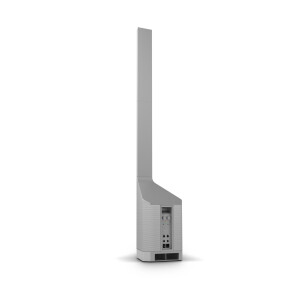

LD Systems MAUI P900 W

Name: LD Systems MAUI P900 W
Brand: LD Systems
SKU: 200130482
Price: 4765.00 EUR
Availability: InStock

Item No.: 200130482

4.765,00 €

incl. 19% VAT (Spedition)

pieces

In stock

Delivery time: 4 - 6 Workdays (DE - int. shipments may differ)

Payment Benefit:
Save 3% via bank transfer / advanced payment
Your price at checkout: 4.622,05 €

Description
Technische Daten

Product Information

Category H-L:

LD Systems MAUI series| LD Systems P900
Number of Woofers:

2
Performance According To Manufacturer:

2800W
Power Rms:

1400W
Vertical Beam Angle (Degrees):

15
Beam Angle Horizontal (Degrees):

140
Operating Mode:

Class D
Housing Material:

plywood
Bluetooth:

Yes
Dsp:

Yes

Product Description

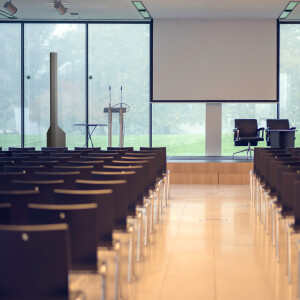

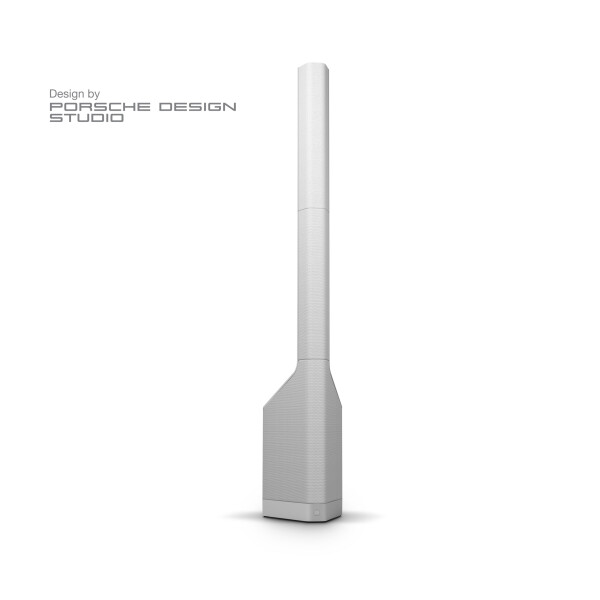

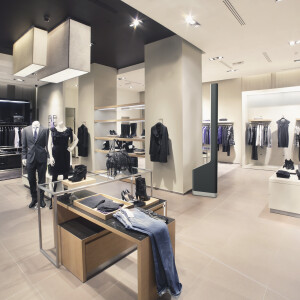

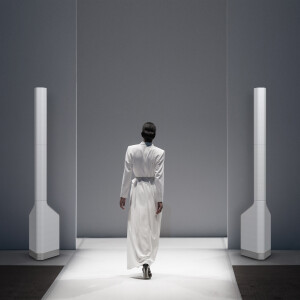

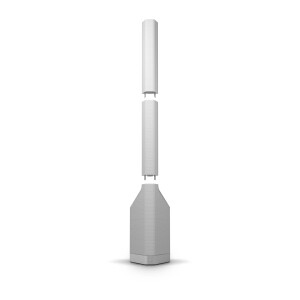

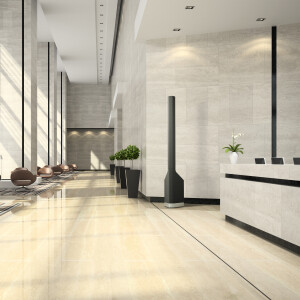

Developed in collaboration with the Porsche Design Studio, the LD Systems MAUI® P900 combines state-of-the-art audio technology with striking elegance. It is the perfect choice for live events and installations where exceptional sound quality with style is essential. The 50 neodymium drivers and 1,400 watts RMS of the Class-D amplifier in this groundbreaking column system produce a maximum sound pressure level of 131 dB with a frequency response of 42–20,000 Hz. The MAUI® P900 utilizes LD Systems' SonicGuide® technology with the WaveAhead® tweeter array to create a coherent wavefront. The system's 140° wide horizontal and tightly focused vertical dispersion achieves extremely long throw and uniform sound coverage. DynX® 24-bit signal processing ensures detailed, dynamic reproduction that remains distortion-free even at the highest volumes. Furthermore, aptX™ and AAC encoding ensure high-resolution Bluetooth® streaming with full audio bandwidth and a range of 70 m, while integrated TrueWireless Stereo™ technology enables wireless stereo playback with two systems that can be positioned up to 15 m apart. The distinctive, three-section MAUI® P900 column system is constructed from high-strength aluminum with a multi-layered elastic grille and can be set up in seconds without cables using specially designed multipin connectors. The minimalist connection panel offers system and subwoofer volume controls, two XLR jacks for stereo input, and two XLR outputs for wired stereo configuration of two systems. Unique in its clean aesthetics and superior audio quality, the MAUI® P900 is available in Cocoon White, Platinum Grey, or Graphite Black for elegant integration into virtually any environment. For convenient transport and protection of the system, padded carrying bags for the column and subwoofer, as well as a flight case specially designed for the MAUI® P900, are available as accessories.

LD Systems MAUI P900 SAT BAG

190,50 €

incl. 19% VAT (Paket)

Available

Payment Benefit:
Save 3% via bank transfer / advanced payment
Your price at checkout: 4.622,05 €

LD Systems MAUI P900 FLIGHTCASE

1.190,00 €

incl. 19% VAT (Spedition)

On request

Payment Benefit:
Save 3% via bank transfer / advanced payment
Your price at checkout: 4.622,05 €

Produktart	PA Komplettsysteme
Typ	aktiv

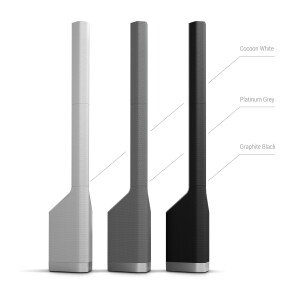

Farbe	Cocoon White
Max. SPL (kontinuierlich)	121 dB
Max. SPL (Peak)	131 dB
Frequenzgang	42 - 20.000 Hz
Abstrahlwinkel (H x V)	140 x 15 °
Höhe (gesamt)	2173 mm
Gewicht	46 kg
Merkmale	Bluetooth-Audio-Streaming
Merkmale	DSP basierte Signalverarbeitung
Merkmale	Exzellentes Abstrahlverhalten
Merkmale	Mono-/Stereo-Betrieb

Subwoofer

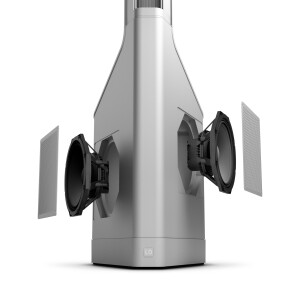

Größe Tieftöner	2 x 10 "
Größe Tieftöner	2 x 254 mm
Magnet Tieftöner	Neodym
Marke Tieftöner	Custom Made
Schwingspule Tieftöner	3 "
Schwingspule Tieftöner (mm)	76,2 mm
Gehäusebauart	Bassreflex
Gehäusematerial	15 mm Sperrholz
Gehäuseoberfläche	HD-beschichtetes Aluminium
Gehäuseoberfläche	mehrschichtiges Mesh-Gewebe
Abmessungen Subwoofer (B x H x T)	400 x 745 x 470 mm
Gewicht Subwoofer	30,6 kg

Hoch-/Mitteltontreiber-System

Größe Mittentöner	16 x 2,8 "
Größe Mittentöner	16 x 71,1 mm
Magnet Mittentöner	Neodym
Marke Mittentöner	Custom Made
Schwingspule Mittentöner	0,75 "
Schwingspule Mittentöner	20 mm
Größe Hochtöner	32 x 1 "
Größe Hochtöner	25,4 mm
Magnet Hochtöner	Neodym
Marke Hochtöner	Custom Made
Schwingspule Hochtöner	1 "
Schwingspule Hochtöner	25,4 mm

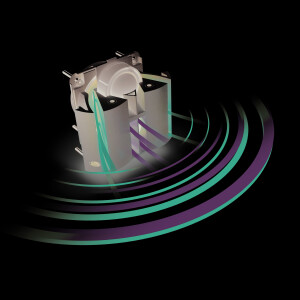

Waveguide	SonicGuide®-Technologie

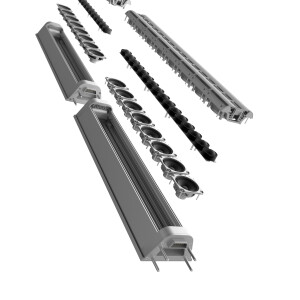

Anordnung Hoch-/Mittentöner	Patentierte WaveAhead®-Technologie
Lautsprechereingänge	1
Lautsprechereingangsanschlüsse	Custom Made Multipin
Gehäusebauart Mid/Hi-System	geschlossen
Gehäusematerial Mid/Hi-System	Aluminium
Gehäuseoberfläche Mid/Hi-System	HD-beschichtetes Aluminium
Gehäuseoberfläche Mid/Hi-System	mehrschichtiges Mesh-Gewebe
Breite Mid/Hi-System	157 mm
Höhe Mid/Hi-System	1428 (2 x 714) mm
Tiefe Mid/Hi-System	91 mm
Gewicht Mid/Hi-System	2 x 7,7 kg

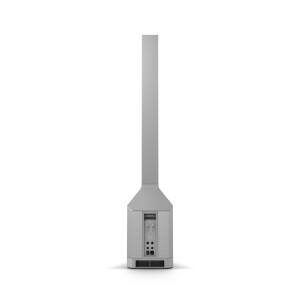

Verstärkermodul (im Subwoofer integriert)

Verstärker	3 x Class D
Systemleistung (RMS)	1400 W
Systemleistung (Peak)	2800 W
Schutzschaltungen	Kurzschluss
Schutzschaltungen	Multiband Limiter
Schutzschaltungen	Schutz vor Gleichstrom
Schutzschaltungen	Schutz vor Überhitzung
Kühlung	Konvektion

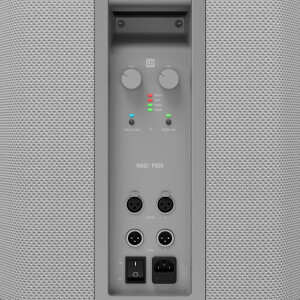

Bedienelemente	Bluetooth HOLD TO LINK-Taste
Bedienelemente	Bluetooth STEREO LINK-Taste
Bedienelemente	Main Level
Bedienelemente	Power On/Off
Bedienelemente	Sub Level
Anzeigeelemente	Bluetooth
Anzeigeelemente	Bluetooth STEREO LINK
Anzeigeelemente	Limit
Anzeigeelemente	Power
Anzeigeelemente	Protect (Schutzschaltung aktiv)
Anzeigeelemente	Signal
Netzanschluss	IEC (Stromkabel inklusive)
Betriebsspannung	100 V AC - 120 V AC / 50 - 60 Hz
Betriebsspannung	200 V AC - 240 V AC, 50 - 60 Hz (Umstellung automatisch)
Betriebsspannung	Schaltnetzteil
Stromverbrauch (Aus / An / Max.)	0 W / 11 W / 1000 W
Umgebungstemperatur	0 - 40 °C
Relative Luftfeuchtigkeit	10 % - 80 %
Anzahl Line-Eingänge	1 x Stereo
Anschlüsse Line-Eingänge	Neutrik XLR
Anzahl Line-Ausgänge	1 x Stereo Thru
Anschlüsse Line-Ausgänge	Neutrik XLR
Anzahl Lautsprecherausgänge	1
Anschlüsse Lautsprecherausgänge	Custom Made Multipin
Bluetooth-Standard	A2DP
Bluetooth-Audio-Decoder	AAC
Bluetooth-Audio-Decoder	aptX
Bluetooth-Audio-Decoder	SBC
